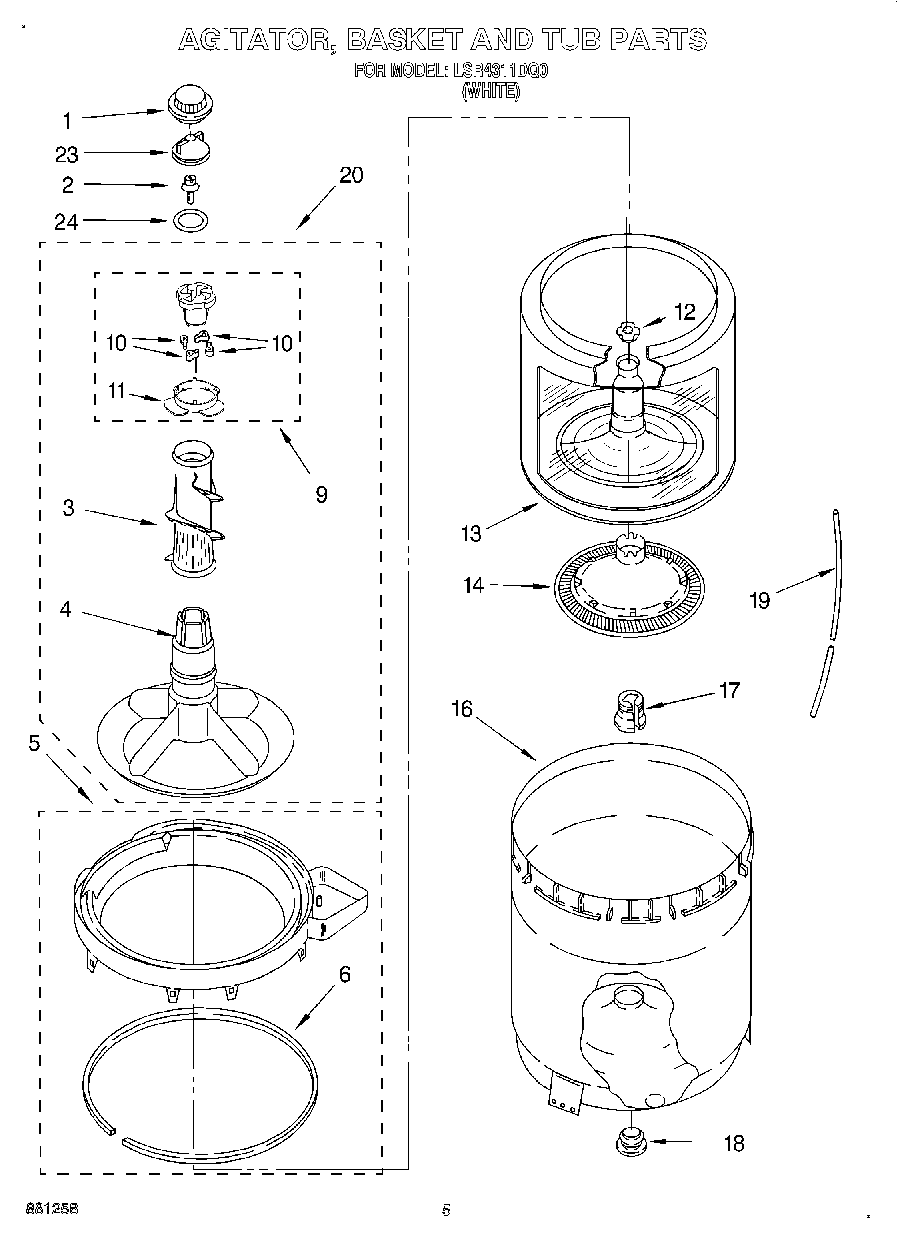

LSR4311DQ0 04 – AGITATOR, BASKET AND TUB

LSR4311DQ0 04 – AGITATOR, BASKET AND TUB

Written by

in

LSR4311DQ0 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3363003 Whirlpool Agitator Mover
4AGITATOR
5Tub Ring & Gasket
6WP3976308 Whirlpool Tub Seal
9285811 Whirlpool Washer Agitator Repair Kit
1080040 Whirlpool Washer Agitator Dog Kit
11WP3363661 Whirlpool Bearing Cam
12WP21366 Whirlpool Spanner Nut
13Basket & Balance Ring
14285868 Whirlpool Washer Filter Plug Kit
16Tub
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20Agitator (Complete Asy.)
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
