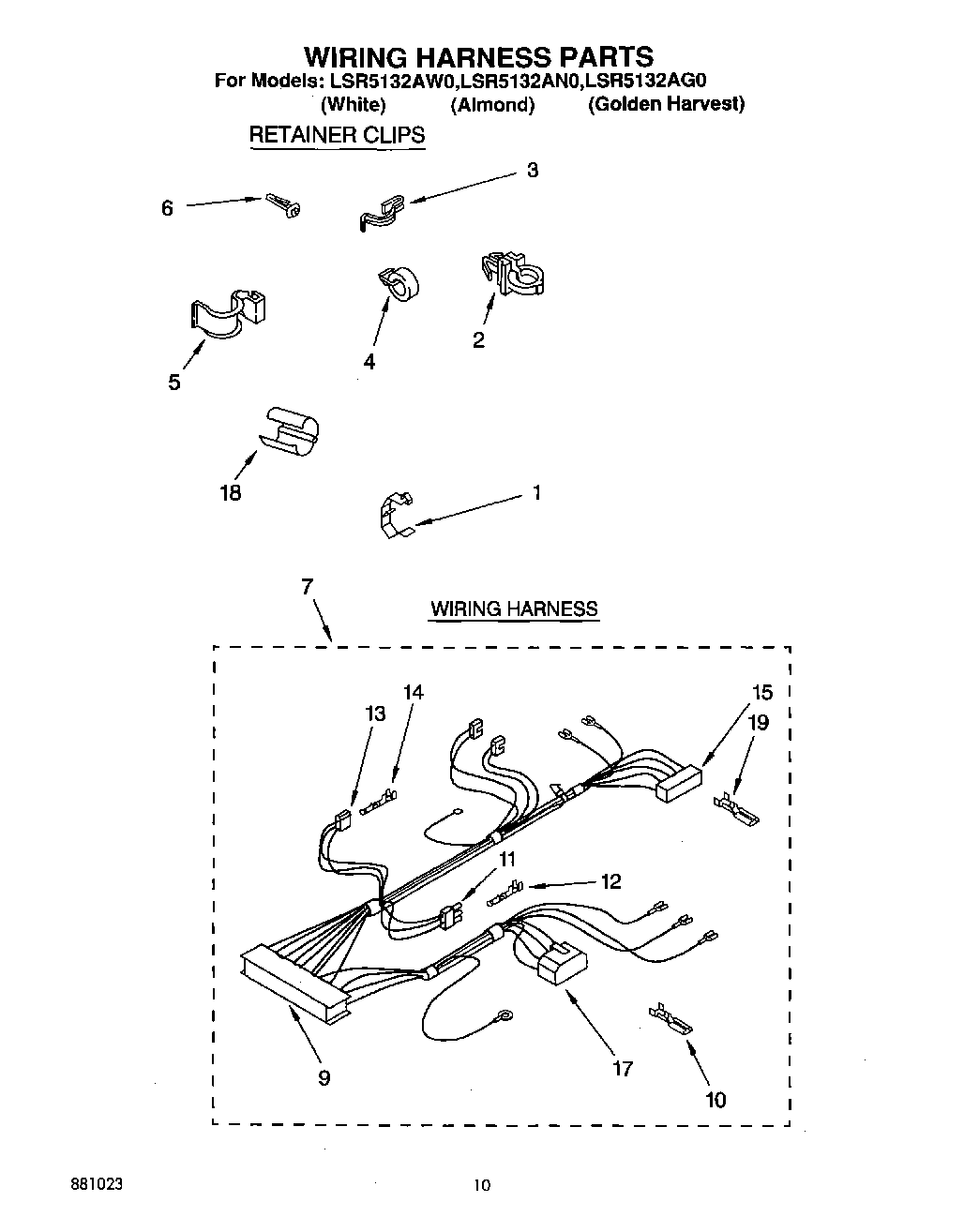

LSR5132AW0 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
48559320 Whirlpool Clip
5WP90016 Whirlpool Clip
6Clip, Harness
7Harness, Wiring (For Detail See Wiring Harness Parts Page) Also See Clips.
9Timer, Block Disconnect (Black) (Amp) (Use Term. 3369365)
10Terminal, Female
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
17Block, Disconnect
18Protector, Harness
19Terminal
