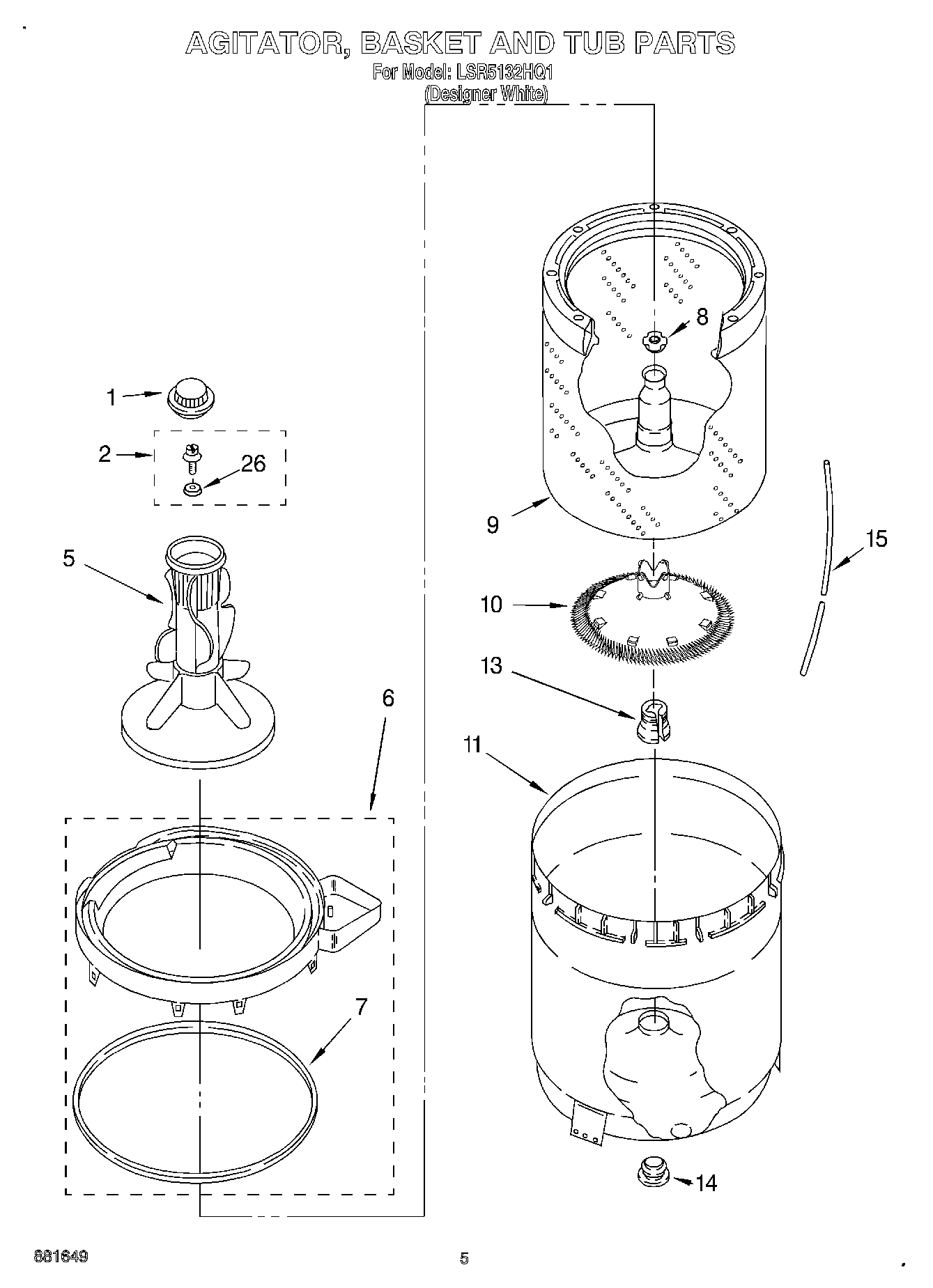

LSR5132HQ1 03 – AGITATOR, BASKET AND TUB

LSR5132HQ1 03 – AGITATOR, BASKET AND TUB

Written by

in

LSR5132HQ1 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
5WP63235 Whirlpool Agitator Assembly
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389329 Whirlpool Microwave Basket
10285868 Whirlpool Washer Filter Plug Kit
1163849 Whirlpool Outer Tub Primary Assembly
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
26WP3949550 Whirlpool Gasket Assembly
