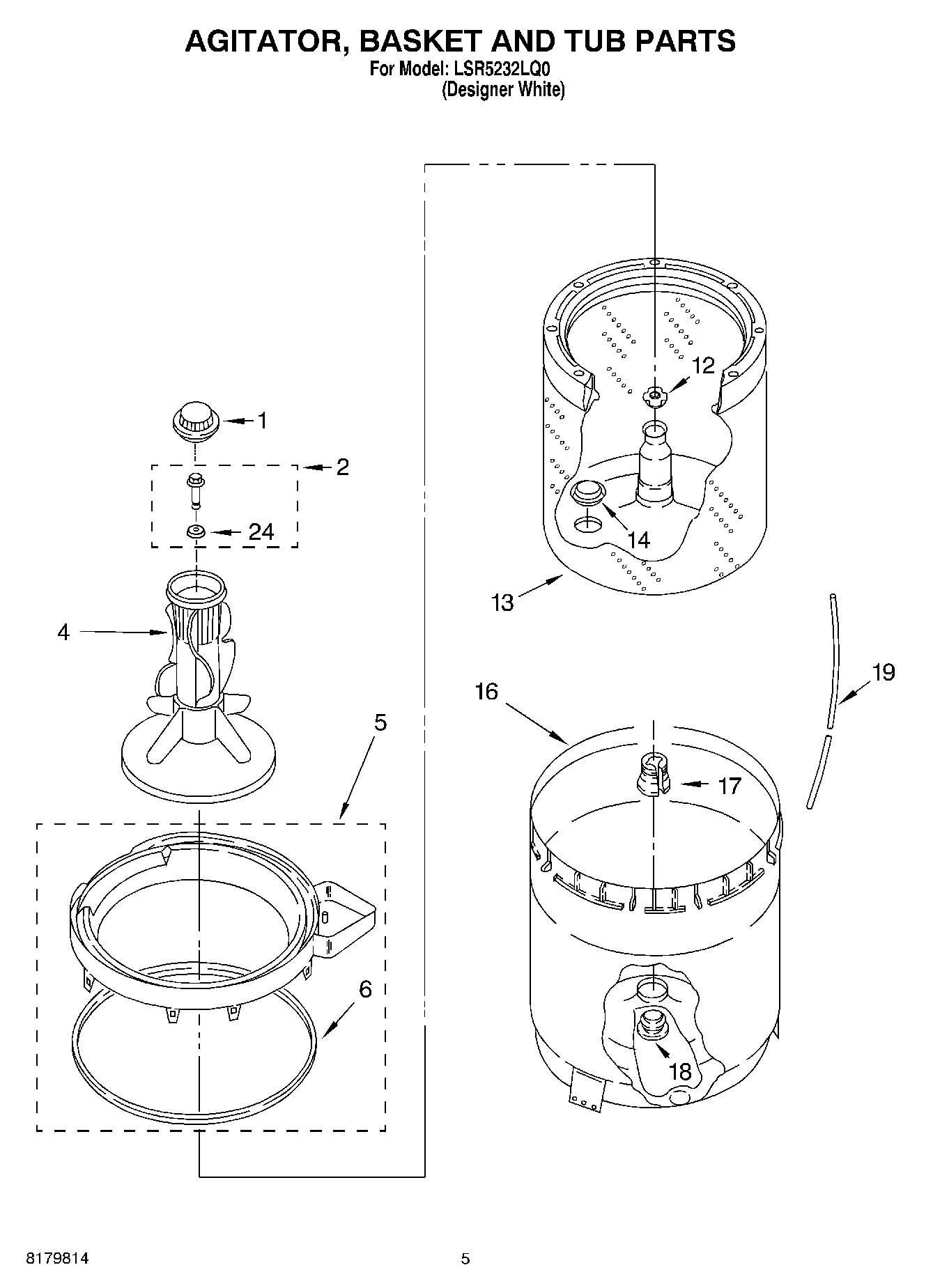

LSR5232LQ0 03 – AGITATOR, BASKET AND TUB

LSR5232LQ0 03 – AGITATOR, BASKET AND TUB

Written by

in

LSR5232LQ0 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
4WP63235 Whirlpool Agitator Assembly
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
12WP21366 Whirlpool Spanner Nut
13W10389329 Whirlpool Microwave Basket
14285868 Whirlpool Washer Filter Plug Kit
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
24WP3949550 Whirlpool Gasket Assembly
