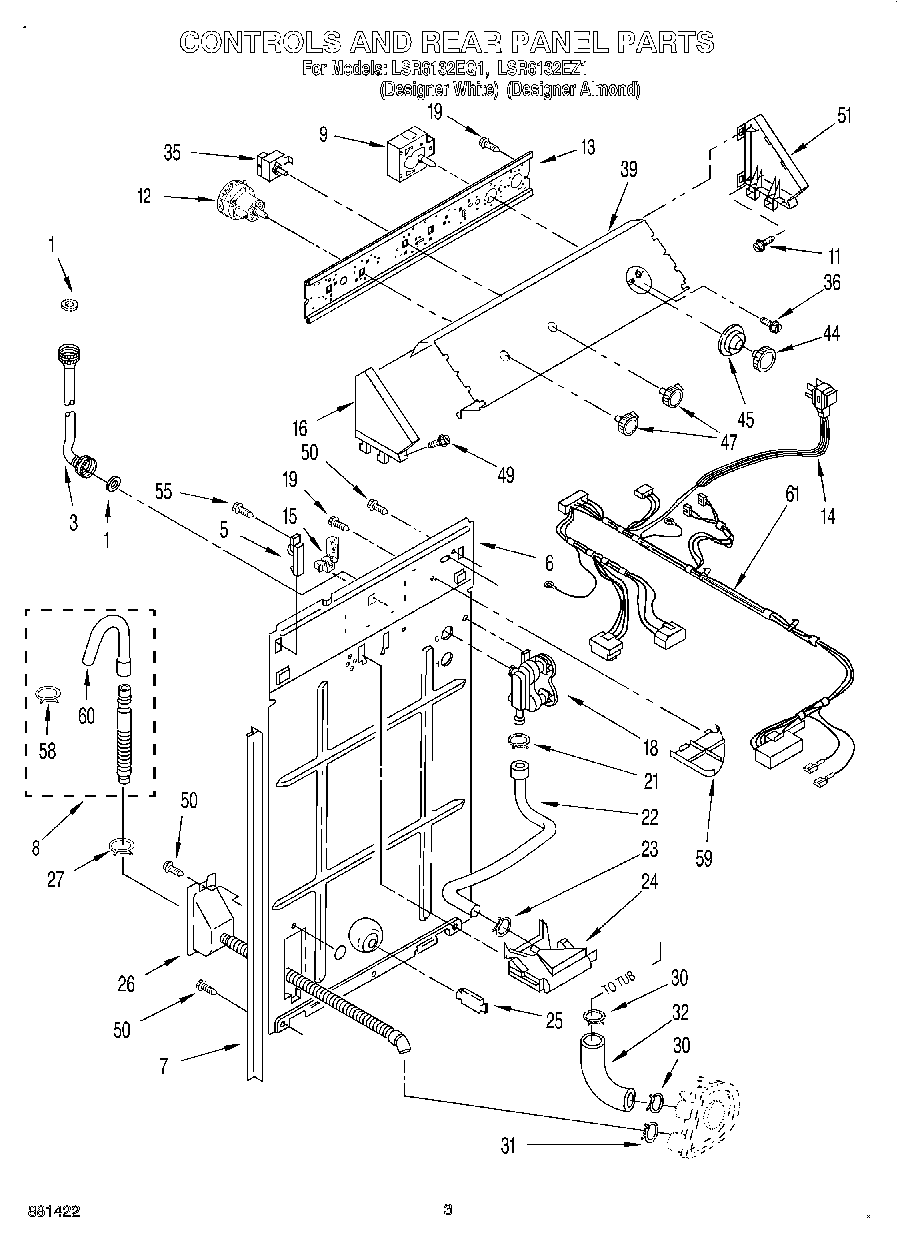

LSR6132EQ1 02 – CONTROLS & REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	W10339228 Whirlpool Washer Water Level Switch
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Power Cord Only, Without Harness)
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
16	Cap, End (L.H.) (Almond)
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
35	WPW10168256 Whirlpool Temperature Switch
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console (For White Model)
39	Panel, Console (For Almond Model)
44	W10807860 Whirlpool White Control Knob
44	WP3957823 Whirlpool Knob
45	WP3957841 Whirlpool Dial
45	WPL 3948588
47	WP3957796 Whirlpool Knob
47	3957797 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (Almond)
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WP3357027 Whirlpool Nozzle Assembly
61	WPL 3950639
