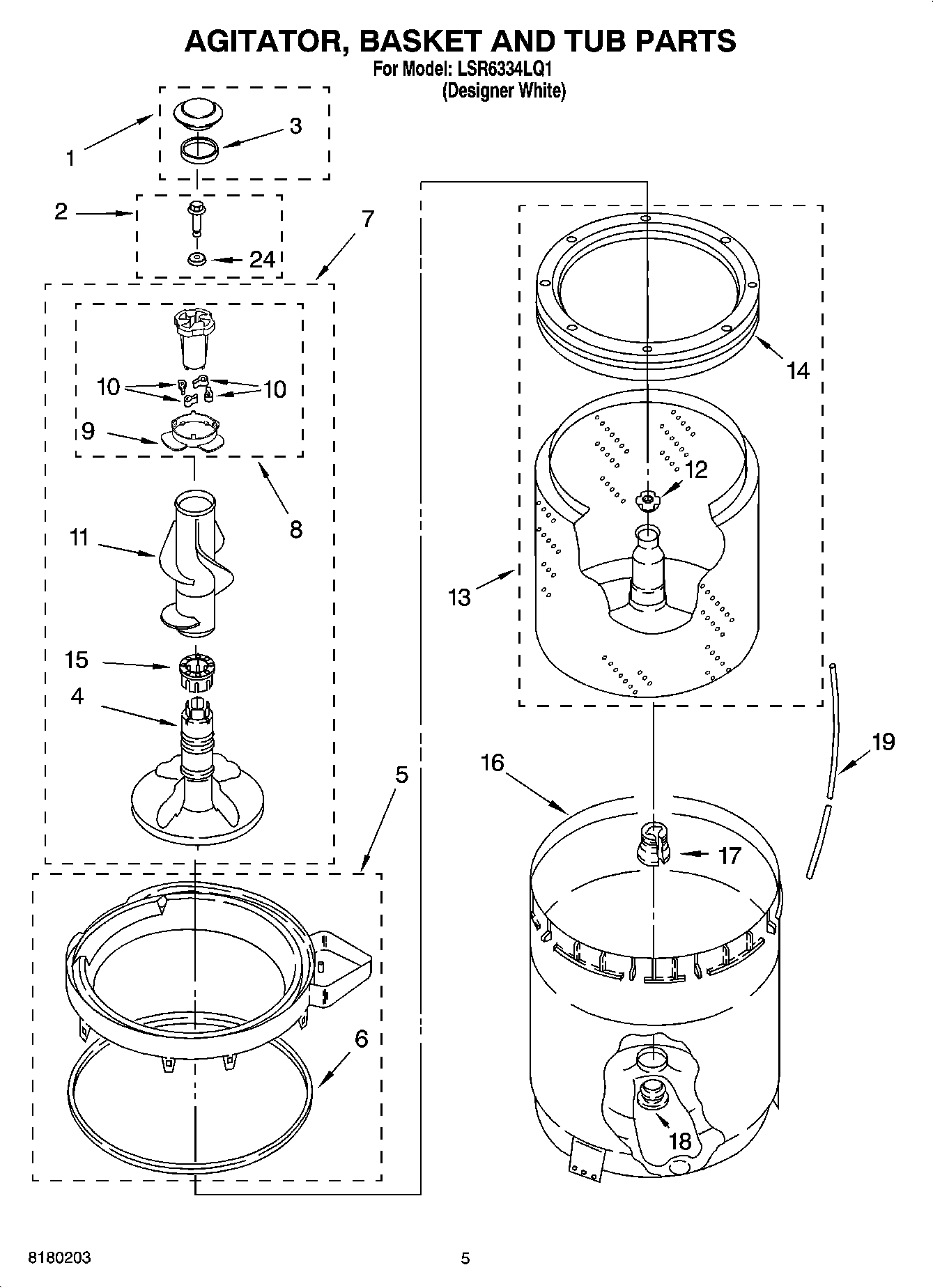

LSR6334LQ1 03 – AGITATOR, BASKET AND TUB PARTS

LSR6334LQ1 03 – AGITATOR, BASKET AND TUB PARTS

Written by

in

LSR6334LQ1 03 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3362061 Whirlpool Cap
2WP358237 Whirlpool Agitator Bolt
3WP358912 Whirlpool Gasket
4WP389386 Whirlpool Agitator Assembly
5W10880720 Whirlpool Tub Ring
6WP3976308 Whirlpool Tub Seal
7285727 Whirlpool Agitator Assembly
8285748 Whirlpool Agitator Cam Kit
9WP3363661 Whirlpool Bearing Cam
1080040 Whirlpool Washer Agitator Dog Kit
11WP3360824 Whirlpool Agitator Auger
12WP21366 Whirlpool Spanner Nut
13W10389329 Whirlpool Microwave Basket
14WP387240 Whirlpool Balance Ring
15285587 Whirlpool Thrust Washer
1663849 Whirlpool Outer Tub Primary Assembly
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
24WP3949550 Whirlpool Gasket Assembly
