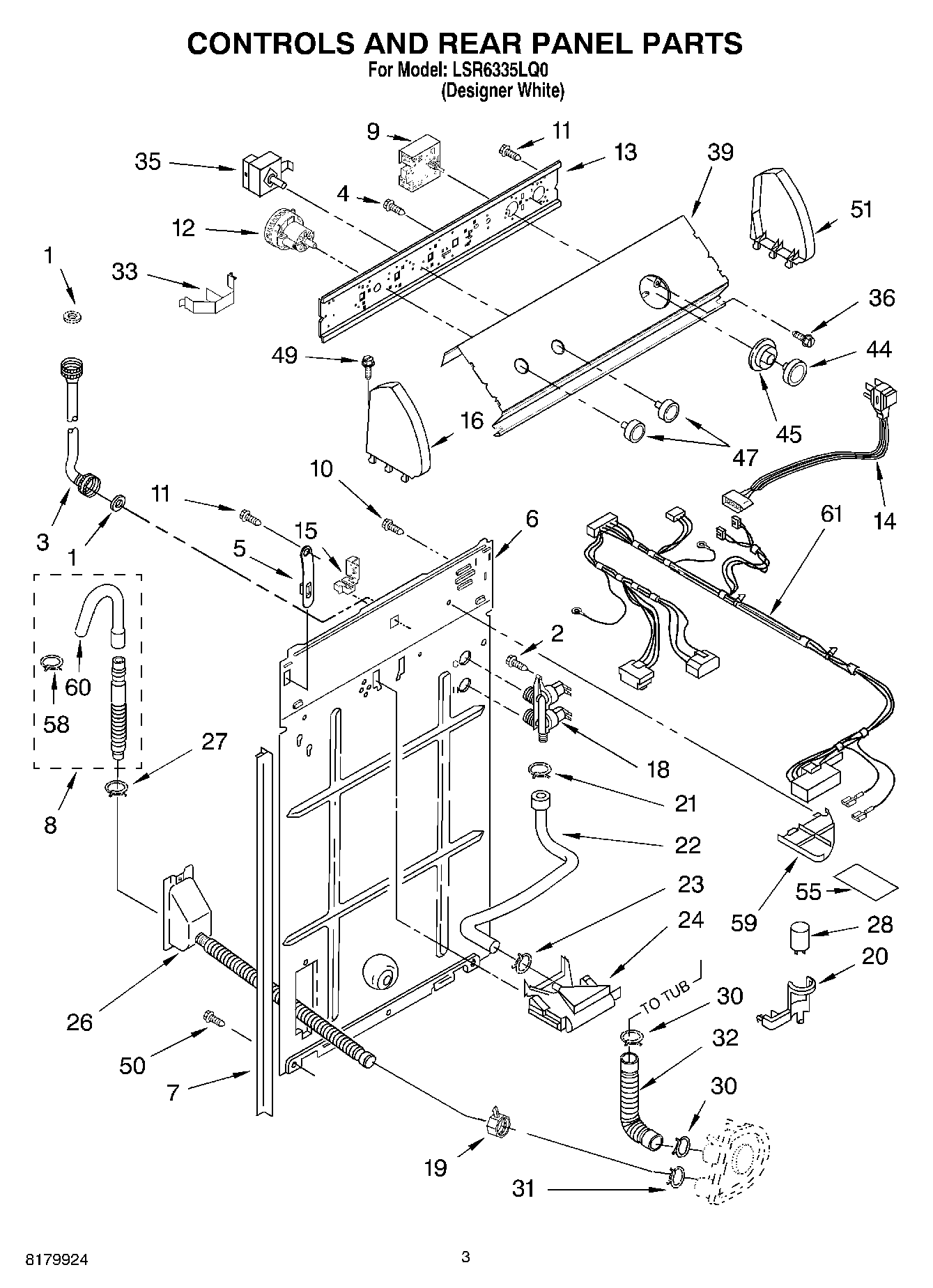

LSR6335LQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
18	285805 Whirlpool Washer Water Inlet Valve
19	Clamp, Hose
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	CAPACITOR
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
35	WPW10168256 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
39	Panel, Console
44	W10807860 Whirlpool White Control Knob
45	WP3957849 Whirlpool Timer Dial
47	WP3957799 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
55	Shield, Capacitor
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WP3357027 Whirlpool Nozzle Assembly
61	Wiring Harness
