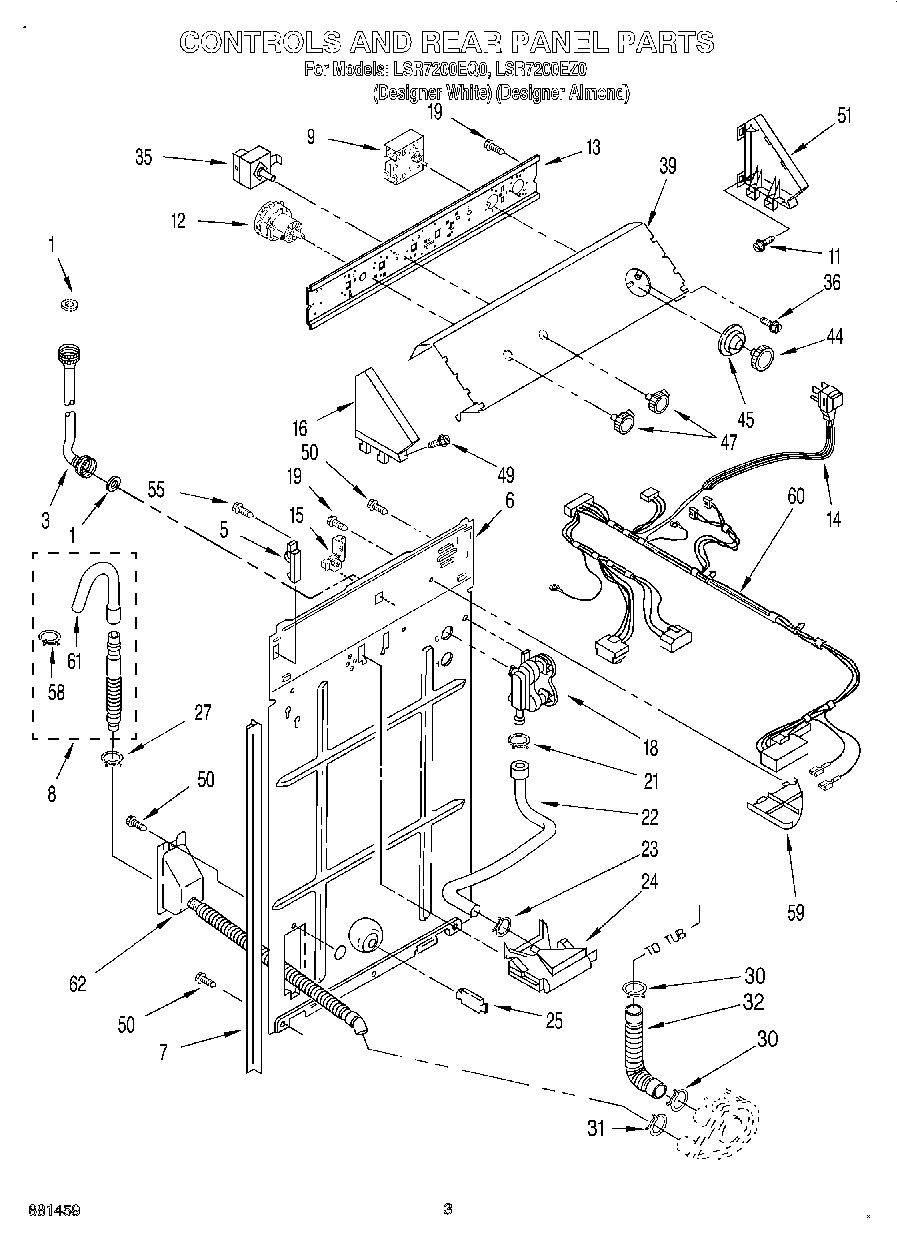

LSR7200EZ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285702 Whirlpool Extensions
8	285666 Whirlpool Drain Hose 10'
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	SWITCH-WL
13	WP3948608 Whirlpool Bracket
14	Cord, Power (Power Cord Only, Without Harness)
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
16	Cap, End (L.H.) (Almond)
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	WP8519200 Whirlpool Support Assembly
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
35	WPW10168256 Whirlpool Temperature Switch
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console (For White Model)
39	Panel, Console (For Almond Model)
44	W10807860 Whirlpool White Control Knob
44	WP3957823 Whirlpool Knob
45	WP3957841 Whirlpool Dial
45	Dial, Timer (Almond)
47	3957797 Whirlpool Knob
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (Almond)
51	Cap, End (R.H.)
55	WP308685 Whirlpool Microwave Screw
58	WP356138 Whirlpool Hose Clamp
59	WPL 3348424
60	WPL 3951391
61	WP3357027 Whirlpool Nozzle Assembly
62	WPW10358149 Whirlpool Hose
