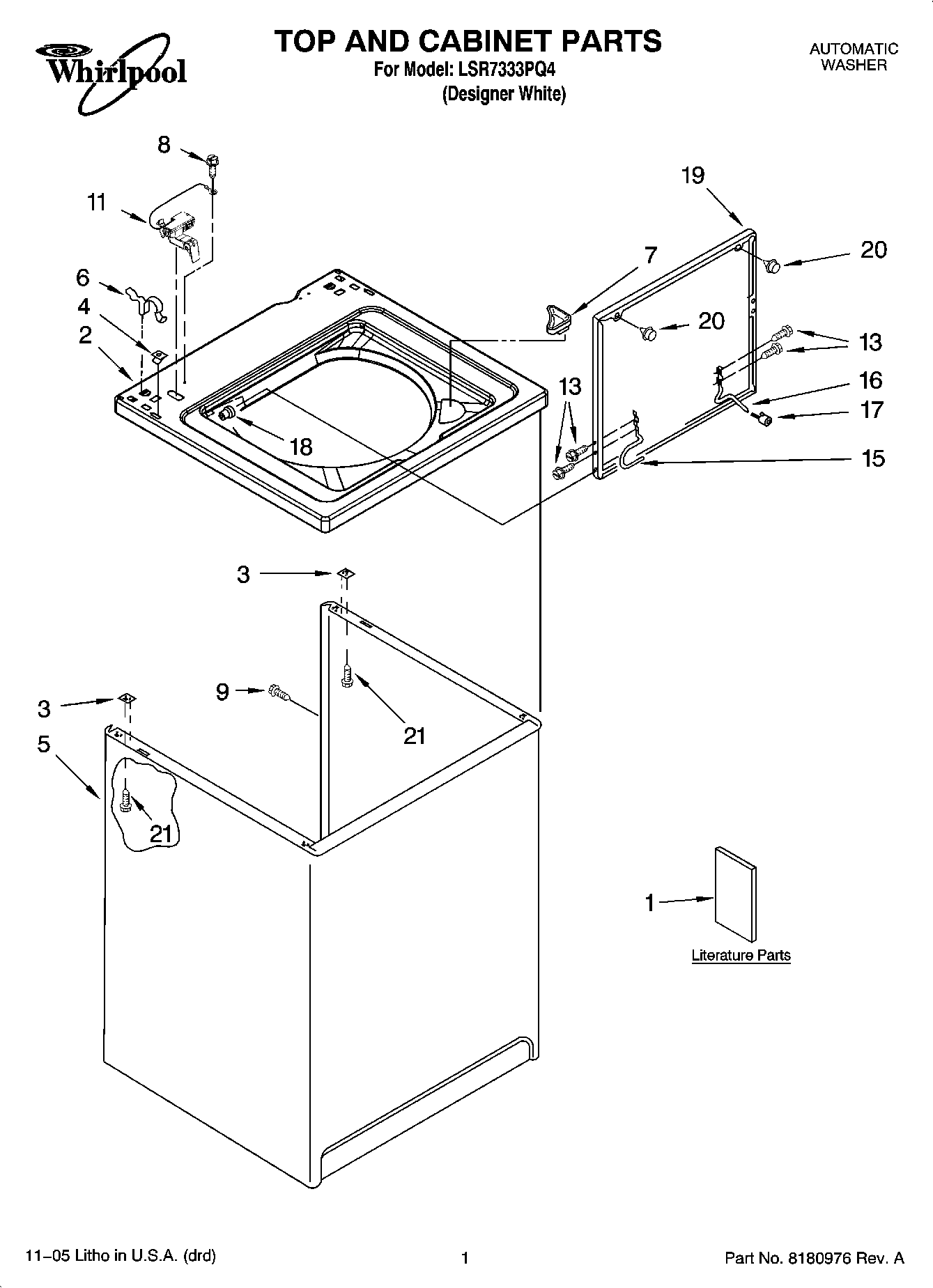

LSR7333PQ4 01 – TOP AND CABINET PARTS

LSR7333PQ4 01 – TOP AND CABINET PARTS

Written by

in

LSR7333PQ4 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Use & Care Guide
1Wiring Diagram
1Installation Instructions
1Energy Guide
1Feature Sheet
1Manual, Washer Do-It-Yourself
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
8WP3351614 Whirlpool Screw
9WP308685 Whirlpool Microwave Screw
11WP8318084 Whirlpool Washer Lid Switch Assembly
13SCREW
158318088 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193857 Whirlpool Lid Assembly
20WP9724509 Whirlpool Bumper
21WP3390631 Whirlpool Screw
