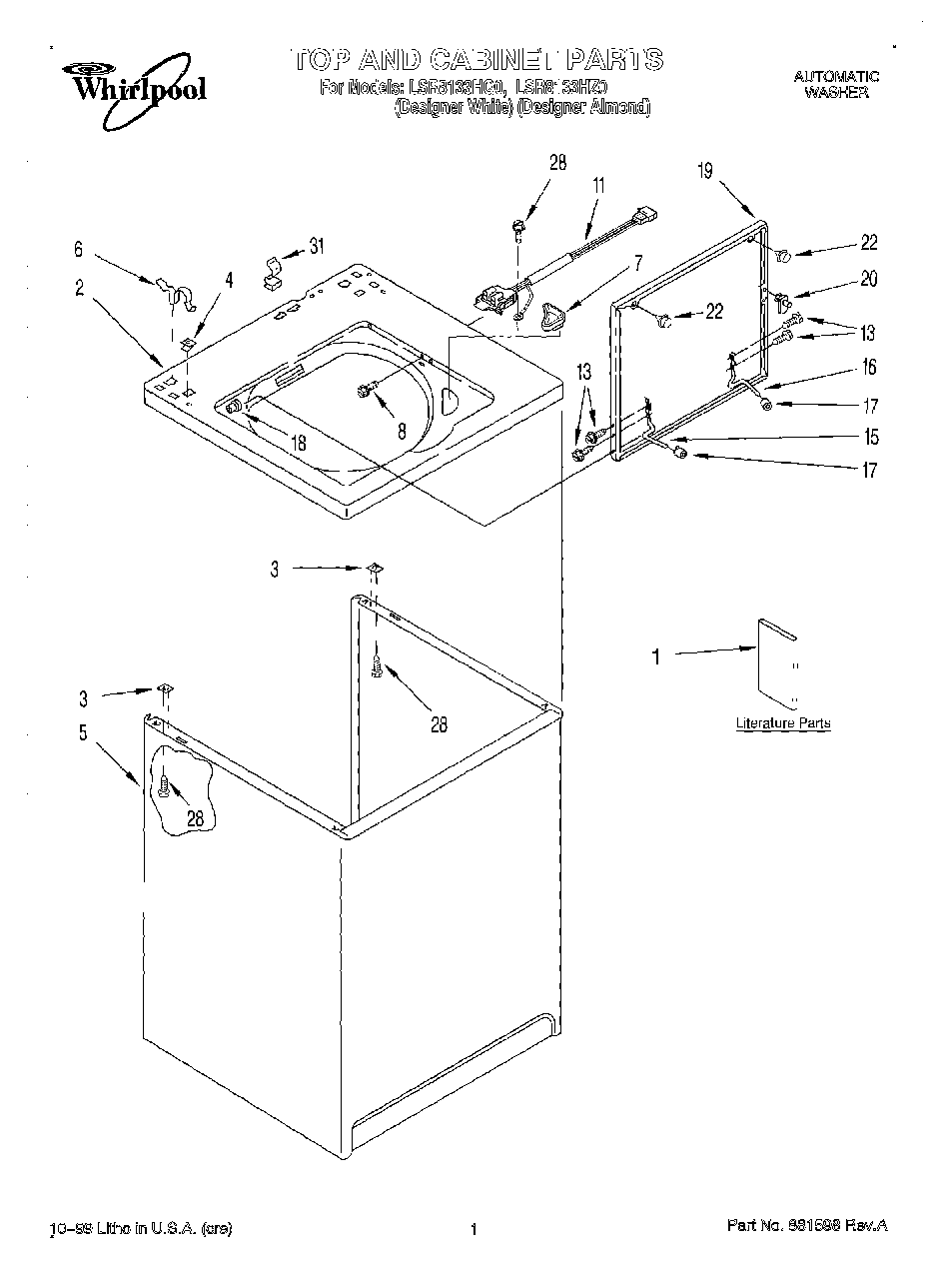

LSR8133HQ0 01 – TOP AND CABINET, LITERATURE

LSR8133HQ0 01 – TOP AND CABINET, LITERATURE

Written by

in

LSR8133HQ0 01 – TOP AND CABINET, LITERATURE

Products

PositionProduct
1Guide, Use and Care
1Label, Wiring Diagram
1Literature Parts (Installation Instructions) (English)
2Top (Almond)
2Top (White)
3WP62750 Whirlpool Spacer
4WP357213 Whirlpool Hinge Stopper
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
6WP62780 Whirlpool Cabinet Clip
7WP3362952 Whirlpool Bezel
113949247V Whirlpool Washer Lid Switch Assembly
13SCREW
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (White)
19Lid (Almond)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28WP3356311 Whirlpool Screw
31WP90016 Whirlpool Clip
