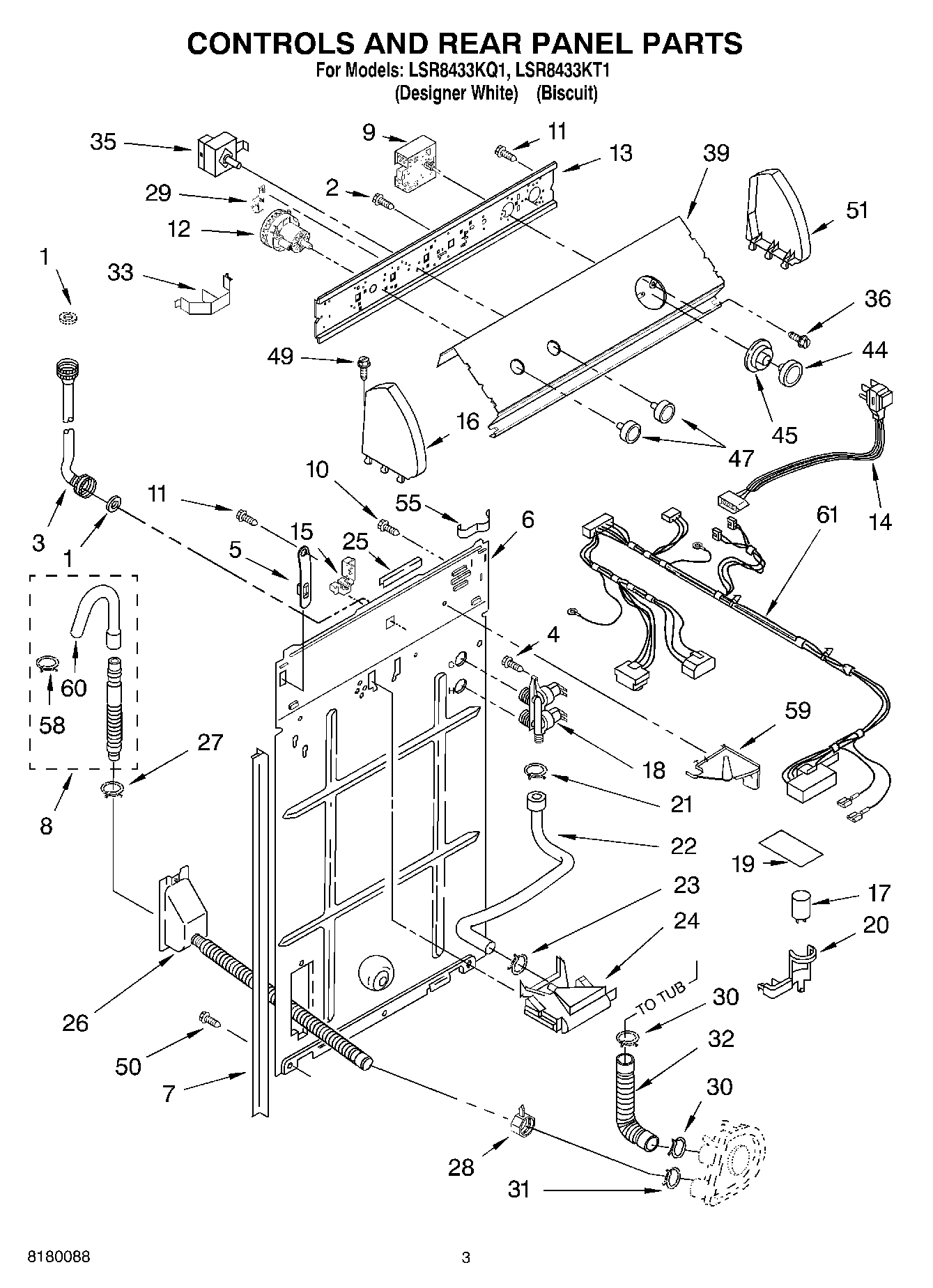

LSR8433KQ1 02 – CONTROLS AND REAR PANEL PARTS

LSR8433KQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LSR8433KQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6WP3357978 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9WP8542050 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12SWITCH-WL
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
16Cap, End (L.H.) (BIscuit)
17CAPACITOR
18285805 Whirlpool Washer Water Inlet Valve
19Shield, Capacitor
20Clip, Capacitor
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Edge Protector
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
29Retainer, Harness
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Clip, Harness & Pressure Hose
35WPW10168256 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
39Panel, Console (Biscuit)
39Panel, Console (White)
44WP3957822 Whirlpool Knob
44W10807860 Whirlpool White Control Knob
45Dial, Timer (Biscuit)
45WP3957849 Whirlpool Timer Dial
473957797 Whirlpool Knob
47WP3957799 Whirlpool Knob
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51WPL 8271362
51W10820038 Whirlpool Endcap
558528351 Whirlpool Clip
58WP3357331 Whirlpool Clamp
59WPL 8539874
60WP3357027 Whirlpool Nozzle Assembly
61Harness, Wiring (F
