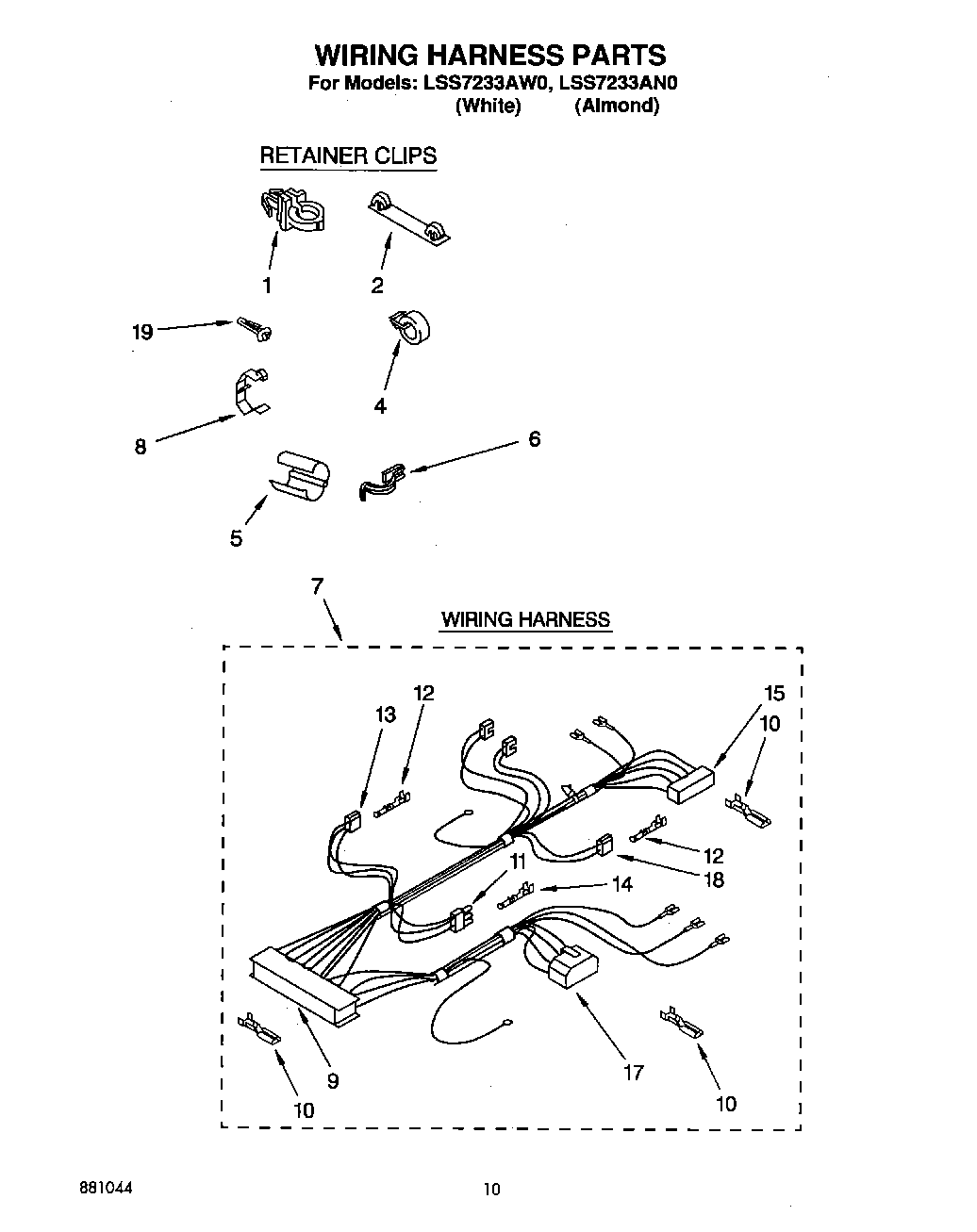

LSS7233AN0 08 – WIRING HARNESS

LSS7233AN0 08 – WIRING HARNESS

Written by

in

LSS7233AN0 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2WP389379 Whirlpool Retainer
48559320 Whirlpool Clip
5Protector, Harness
68528351 Whirlpool Clip
7WPL 3359868
8Clip, Harness
9W10876590 Whirlpool Connector
10Terminal
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
17Block, Disconnect
18Receptacle, Latching (2-Way) (Uses Terminal 94614)
19Clip, Harness
