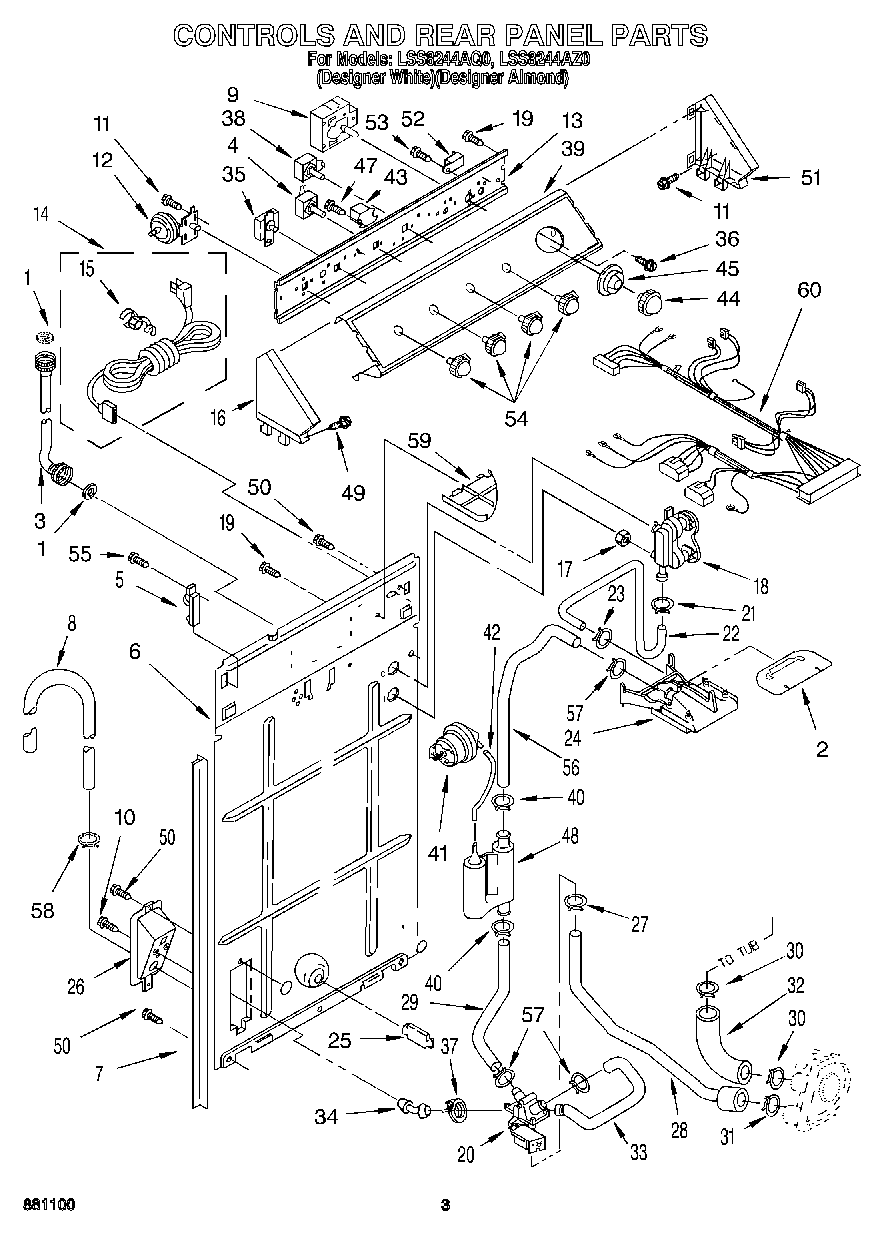

LSS8244AQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	Sheild, Vaccum Break
3	WP89503 Whirlpool Washer Fill Hose
4	Switch, Rotary
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	Screw (2)
11	WPW10139210 Whirlpool Screw
12	Switch, Water Level
13	WP3948608 Whirlpool Bracket
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.) (Almond)
16	Cap, End (L.H.) (White)
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
19	WP3351614 Whirlpool Screw
20	Valve, Two-Way
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	Break, Vacuum
25	WP8519200 Whirlpool Support Assembly
26	Bracket, Valve
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Two-Way Valve
29	Hose/Two-way Valve To Air Dome
30	WP371502 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Hose-Two Way Valve/ To Drain
34	Connector, Hose
35	WPW10168263 Whirlpool Temperature Switch
36	WP356418 Whirlpool Screw
38	Switch, Temperature
39	Panel, Console (For Designer Almond Model)
39	Panel, Console (For Designer White Model)
41	Switch, Pressure (Recirculate)
42	WP353244 Whirlpool Hose
43	697811 Whirlpool Relay
44	WP3364293 Whirlpool Timer Knob
45	280193 Whirlpool Timer Knob
45	Dial, Timer (For Des
47	WP3388228 Whirlpool Screw
48	Air-Dome
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.) (Almond)
51	Cap, End (R.H.) (White)
52	WP694419 Whirlpool Buzzer Adjuster
53	WP90767 Whirlpool Screw
54	WP3957796 Whirlpool Knob
54	3957797 Whirlpool Knob
55	WP308685 Whirlpool Microwave Screw
56	Hose, Air-Dome To Vacuum Break
57	3363365 Whirlpool Clamp
58	WP3357331 Whirlpool Clamp
59	WPL 3348424
60	WPL 3362315
