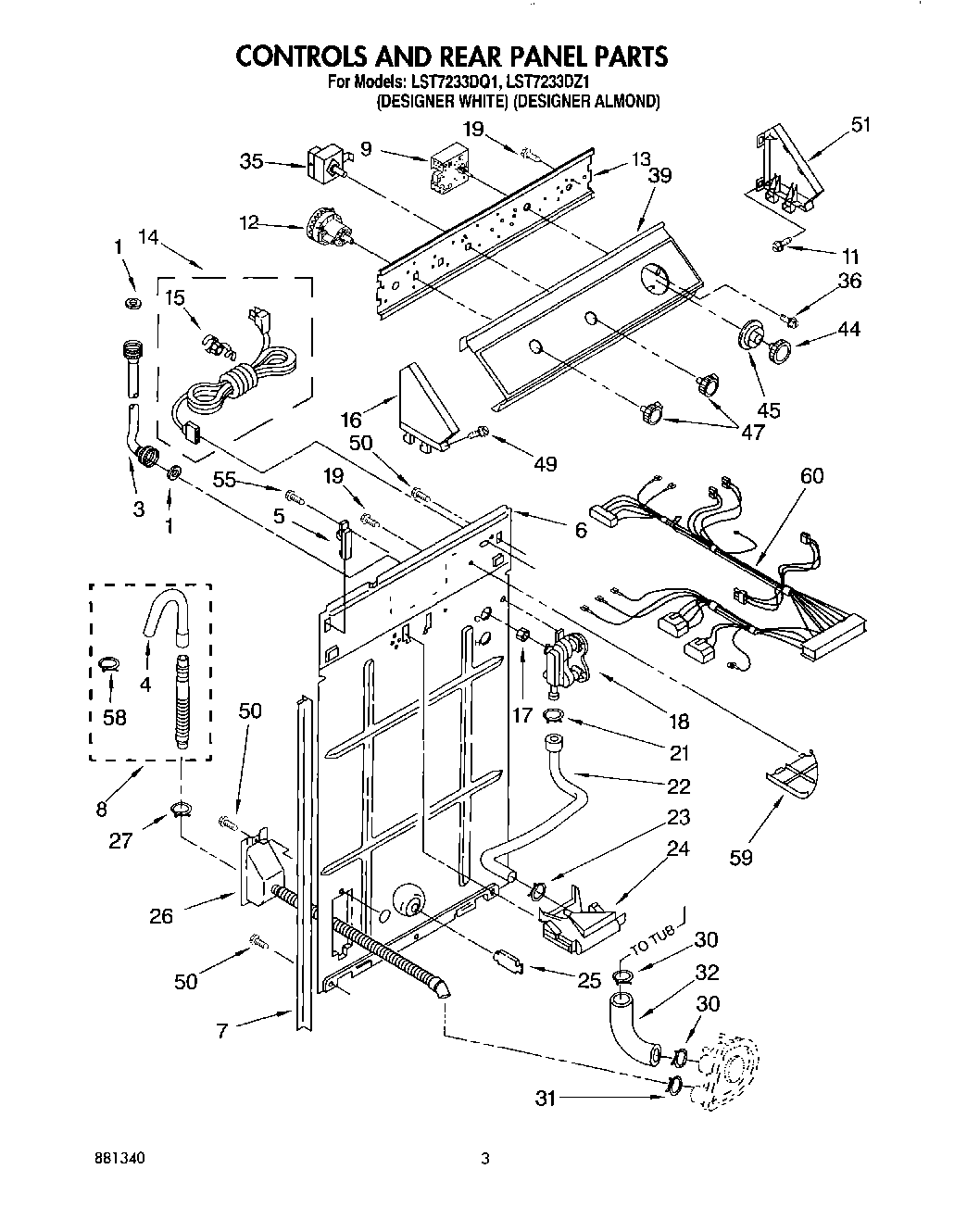

LST7233DQ1 02 – CONTROLS AND REAR PANEL
Written by
in
LST7233DQ1 02 – CONTROLS AND REAR PANEL
Products
Position
Product
1
WP16123 Whirlpool Washer
3
WP89503 Whirlpool Washer Fill Hose
4
WP3357027 Whirlpool Nozzle Assembly
5
Hinge, Console (2)
6
WP3357978 Whirlpool Rear Panel
7
WP62747 Whirlpool Pad
8
285702 Whirlpool Extensions
8
285664 Whirlpool Drain Hose
8
285666 Whirlpool Drain Hose 10'
9
WP3949339 Whirlpool Timer
11
WP90767 Whirlpool Screw
12
WP3356467 Whirlpool Washer Water Level Switch
13
WP3948608 Whirlpool Bracket
14
W10820044 Whirlpool Power Cord
15
Strain Relief, Power Cord
16
Cap, End (L.H.)
16
Cap, End (L.H.) (Almond)
17
WP96160 Whirlpool Washer Inlet Valve Screen
18
285805 Whirlpool Washer Water Inlet Valve
19
WP3351614 Whirlpool Screw
21
WP596669 Whirlpool Hose Clamp
22
HOSE
24
WP3360977 Whirlpool Washer Tub Fill Nozzle
25
WP8519200 Whirlpool Support Assembly
26
WPW10358149 Whirlpool Hose
27
WP356138 Whirlpool Hose Clamp
30
WP371502 Whirlpool Clamp
31
WP285655 Whirlpool Hose Clamp
32
285871 Whirlpool Hose and Clamp
35
Switch, Water Temperature (Alt.)
35
Switch, Water Temperature (Alt.)
35
WPW10168256 Whirlpool Temperature Switch
36
WP356418 Whirlpool Screw
39
Panel, Console (For Designer White Model)
39
Panel, Console (For Designer Almond Model)
44
WP3364293 Whirlpool Timer Knob
45
280193 Whirlpool Timer Knob
45
Dial, Timer (For Designer White Model)
47
3957797 Whirlpool Knob
47
WP3957796 Whirlpool Knob
49
WP388326 Whirlpool Screw
50
WP3390631 Whirlpool Screw
51
Cap, End (R.H.)
51
Cap, End (R.H.) (Almond)
55
WP308685 Whirlpool Microwave Screw
58
WP3357331 Whirlpool Clamp
59
WPL 3348424
60
WPL 3948422
←
