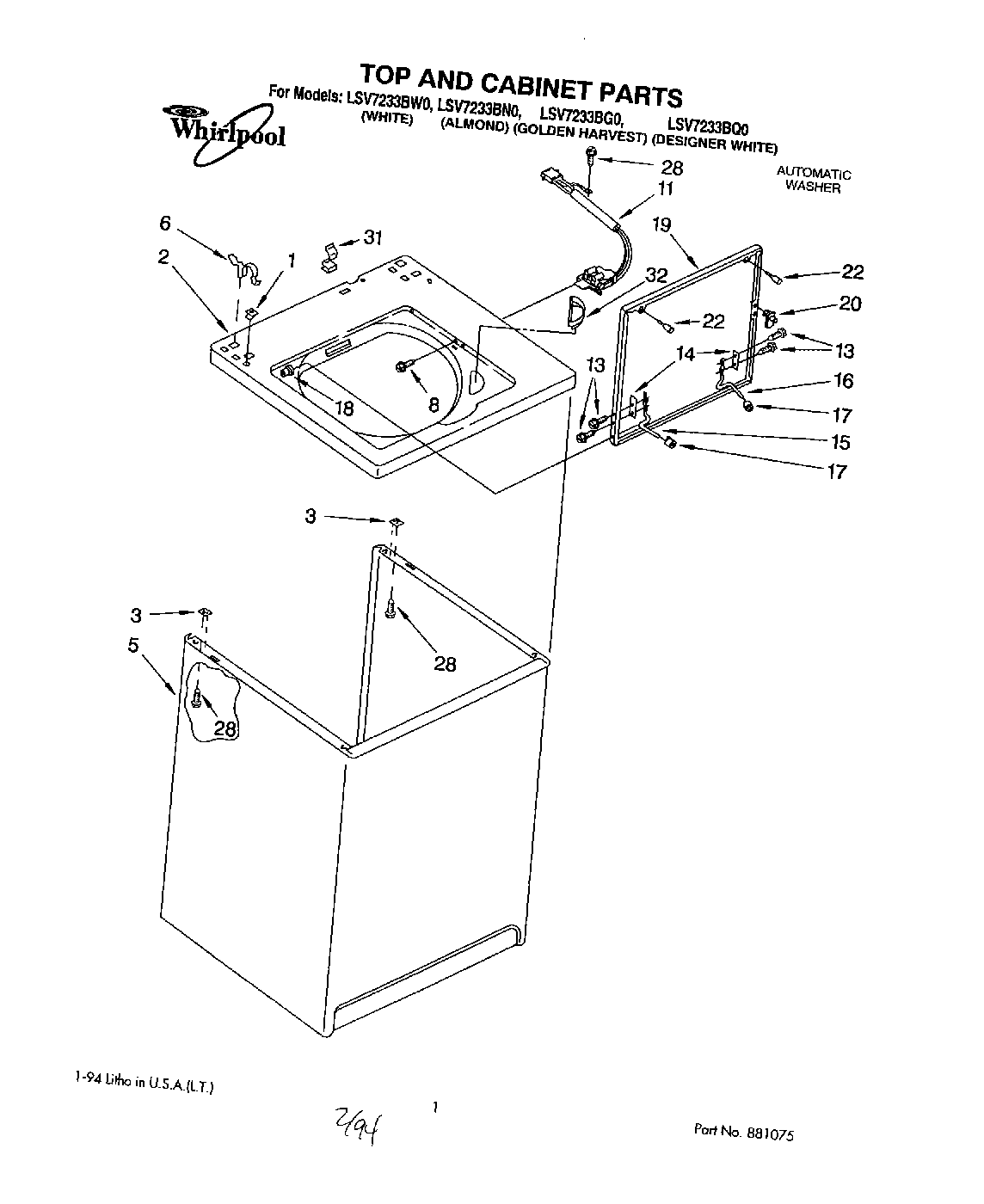

LSV7233BW0 01 – TOP AND CABINET, LIT/OPTIONAL

LSV7233BW0 01 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

LSV7233BW0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
350930 Whirlpool White Spray Paint
Golden Harvest
Golden Harvest (Uncut)
Shipping Kit
WPL 89121
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
WPL LIT3360057
WPL LIT3358743
WPL LIT3357460
WP285195 Whirlpool Sealer Assembly
Manual, (Washer) Do-It-Yourself
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350572 Whirlpool Oil Transmission 15 Oz
Drain Protector (Not Included)
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
WPL LIT3361377
Almond (Uncut)
285320 Whirlpool Washer Siphon Break Kit
Leveler (Thinner)
1WP357213 Whirlpool Hinge Stopper
2Top (For Almond Model)
2Top (For White & Desinger White Models)
2Top (Golden Harvest)
3WP62750 Whirlpool Spacer
563424 Whirlpool Cabinet Assembly
5Cabinet (Almond)
5Cabinet (Golden Harvest)
6WP62780 Whirlpool Cabinet Clip
8WP3356311 Whirlpool Screw
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19Lid (For Harvest Gold Model)
19Lid (For White & Designer White Models)
19Lid (For Almond Model)
20WP358684 Whirlpool Strike Assembly
22WP9724509 Whirlpool Bumper
28SCREW
31WP90016 Whirlpool Clip
32WP3362952 Whirlpool Bezel
