LSV9355AN0 08 – WIRING HARNESS

LSV9355AN0 08 – WIRING HARNESS

Written by

in

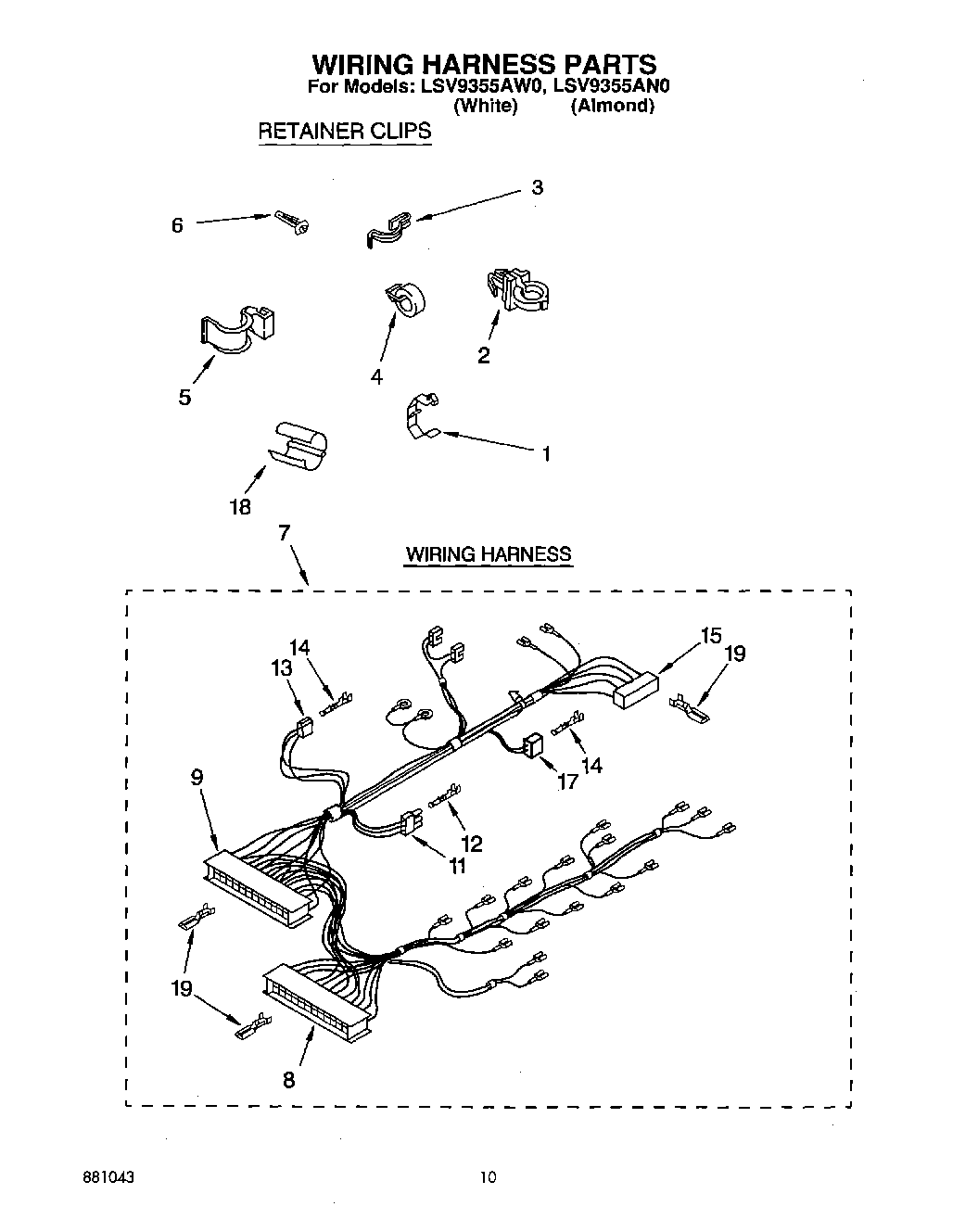

LSV9355AN0 08 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
48559320 Whirlpool Clip
5WP90016 Whirlpool Clip
6Clip, Harness
7Wiring Harness
8Timer, Block Disconnect (White)
9W10876590 Whirlpool Connector
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13353424 Whirlpool Connector
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
17Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614)
18Protector, Harness
19Terminal
