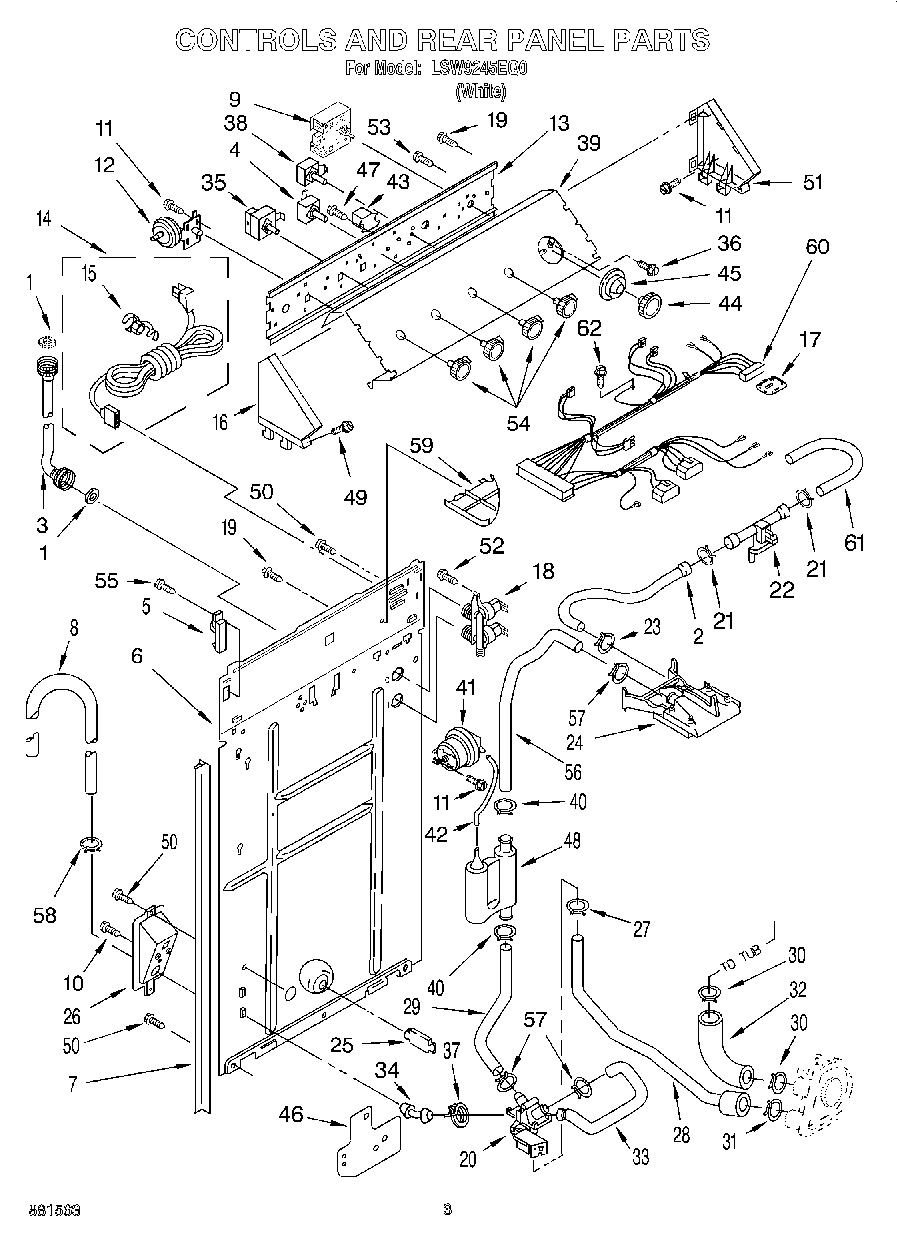

LSW9245EQ0 02 – CONTROL AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3349365 Whirlpool Hose
3	WP89503 Whirlpool Washer Fill Hose
4	Switch, Rotary
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
9	Timer, Control (60 Hz.) (Motor Not A Service Part)
10	Screw (2)
11	WPW10139210 Whirlpool Screw
12	W10335056 Whirlpool Water Level Pressure Switch
13	WP3948608 Whirlpool Bracket
14	W10820044 Whirlpool Power Cord
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
17	E.T.C. Control
18	285805 Whirlpool Washer Water Inlet Valve
20	Valve, Two-Way
21	WP596669 Whirlpool Hose Clamp
22	Sensor-ETC-Inline
24	Break, Vacuum
25	WP8519200 Whirlpool Support Assembly
26	Bracket, Valve Mounting
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Two-Way Valve
29	Hose/Two-way Valve To Air Dome
30	WP616099 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	Hose-Two Way Valve/ To Drain
34	Connector, Hose
35	WPW10168256 Whirlpool Temperature Switch
36	WP356418 Whirlpool Screw
38	Switch, Rotary
39	Panel, Console
41	Switch, Pressure (Recirculate)
42	WP353244 Whirlpool Hose
43	697811 Whirlpool Relay
44	WP3364293 Whirlpool Timer Knob
45	WP3957841 Whirlpool Dial
46	Shield, Valve
47	WP3388228 Whirlpool Screw
48	Air Dome
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
52	WP9740848 Whirlpool Dishwasher Screw
53	WP90767 Whirlpool Screw
54	WP3957796 Whirlpool Knob
55	WP488729 Whirlpool Refrigerator Door Screw
56	Hose, Air-Dome To Vacuum Break
57	3363365 Whirlpool Clamp
58	WP285655 Whirlpool Hose Clamp
59	WPL 3348424
60	WPL 3952850
61	WP3357319 Whirlpool Hose
62	WP3351614 Whirlpool Screw
