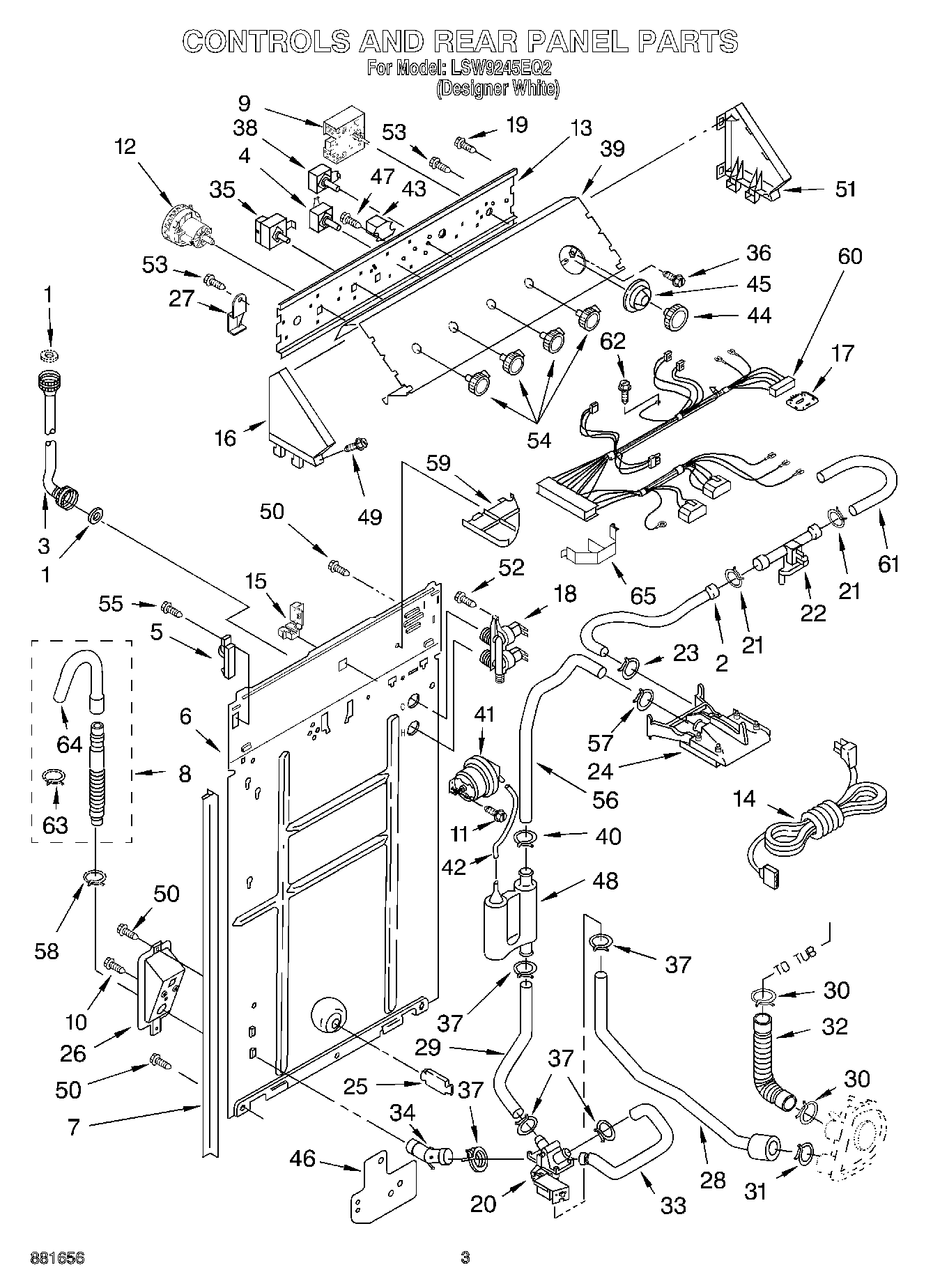

LSW9245EQ2 02 – CONTROLS AND REAR PANEL

LSW9245EQ2 02 – CONTROLS AND REAR PANEL

Written by

in

LSW9245EQ2 02 – CONTROLS AND REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP3349365 Whirlpool Hose
3WP89503 Whirlpool Washer Fill Hose
4Switch, Rotary
5Hinge, Console (2)
6Panel, Rear
7WP62747 Whirlpool Pad
8285664 Whirlpool Drain Hose
9Timer, Control (60 Hz.) (Motor Not A Service Part)
10Screw (2)
11WPW10139210 Whirlpool Screw
12W10335056 Whirlpool Water Level Pressure Switch
13WP3948608 Whirlpool Bracket
14W10820044 Whirlpool Power Cord
15Strain Relief, Power Cord
16Cap, End (L.H.)
17E.T.C. Control
18285805 Whirlpool Washer Water Inlet Valve
20Valve, Two-Way
21WP596669 Whirlpool Hose Clamp
22Sensor-ETC-Inline
24Break, Vacuum
25WP8519200 Whirlpool Support Assembly
26Bracket, Valve Mounting
27Retainer, Harness
28Hose, Pump To Two-Way Valve
29Hose/Two-way Valve To Air Dome
30WP616099 Whirlpool Clamp
32285871 Whirlpool Hose and Clamp
33Hose-Two Way Valve/ To Drain
34Connector, Hose
35WPW10168256 Whirlpool Temperature Switch
36WP3400064 Whirlpool Screw
38Switch, Rotary
39Panel, Console
41Switch, Pressure (Recirculate)
42WP353244 Whirlpool Hose
43697811 Whirlpool Relay
44WP3364293 Whirlpool Timer Knob
45WP3957841 Whirlpool Dial
46Shield, Valve
47WP3388228 Whirlpool Screw
48Air Dome
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51Cap, End (R.H.)
52WP9740848 Whirlpool Dishwasher Screw
53WP90767 Whirlpool Screw
54WP3957796 Whirlpool Knob
55WP488729 Whirlpool Refrigerator Door Screw
56Hose, Air-Dome To Vacuum Break
573363365 Whirlpool Clamp
58WP285655 Whirlpool Hose Clamp
59WPL 3348424
60WPL 3954662
61WP3357319 Whirlpool Hose
62WP3351614 Whirlpool Screw
63WP356138 Whirlpool Hose Clamp
64WP3357027 Whirlpool Nozzle Assembly
65Clip, Harness & Pressure Hose
