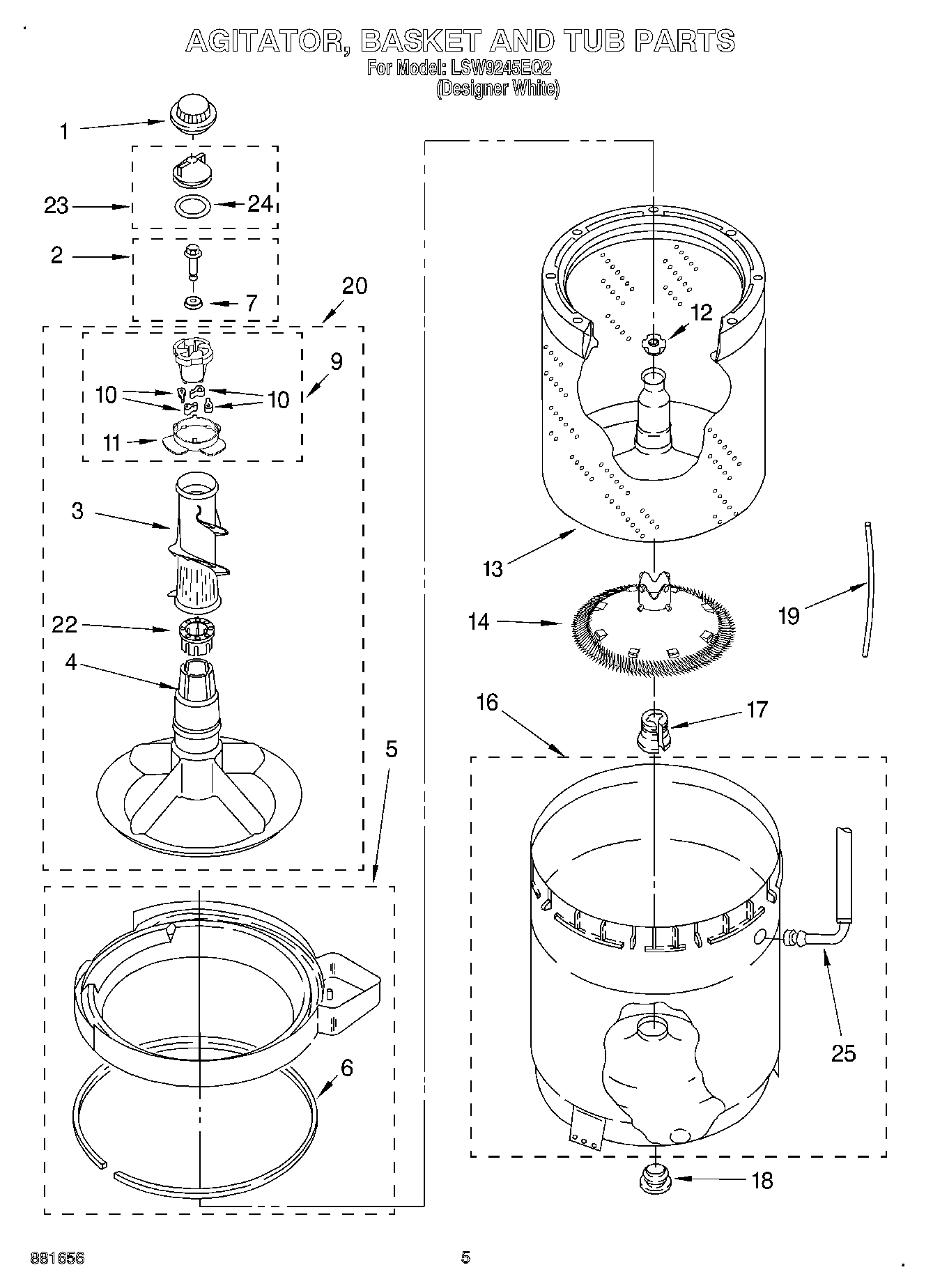

LSW9245EQ2 03 – AGITATOR, BASKET AND TUB

LSW9245EQ2 03 – AGITATOR, BASKET AND TUB

Written by

in

LSW9245EQ2 03 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2WP358237 Whirlpool Agitator Bolt
3WP3363003 Whirlpool Agitator Mover
4AGITATOR
5Tub Ring & Gasket
6WP3976308 Whirlpool Tub Seal
7WP3949550 Whirlpool Gasket Assembly
9285809 Whirlpool Washer Agitator Cam Kit
1080040 Whirlpool Washer Agitator Dog Kit
11WP3952374 Whirlpool Bearing
12WP21366 Whirlpool Spanner Nut
13W10389328 Whirlpool Basket
14285868 Whirlpool Washer Filter Plug Kit
163361596 Whirlpool Outer Tub Primary
17WP389140 Whirlpool Drive Block or Bell
18W10814296 Whirlpool Washer Center Post Seal Gasket
19WP353244 Whirlpool Hose
20285565 Whirlpool Agitator Assembly
22WP3951608 Whirlpool Washer Agitator Thrust Spacer
23WPW10074580 Whirlpool Agitator Inner Cap and Seal
24WPW10072840 Whirlpool Seal Assembly
25Hose, Bleach
