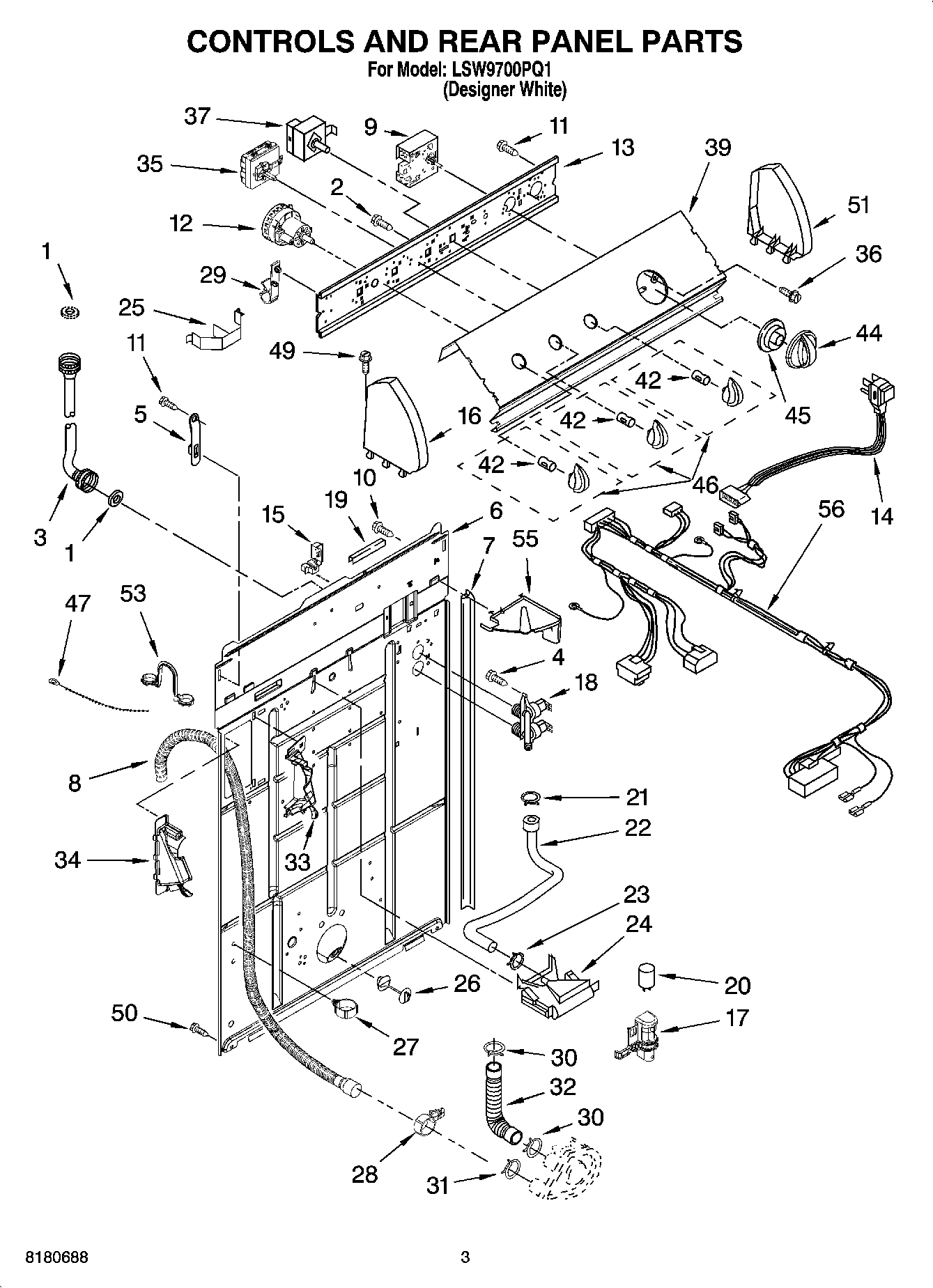

LSW9700PQ1 02 – CONTROLS AND REAR PANEL PARTS

LSW9700PQ1 02 – CONTROLS AND REAR PANEL PARTS

Written by

in

LSW9700PQ1 02 – CONTROLS AND REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
23400073 Whirlpool Screw
3WP89503 Whirlpool Washer Fill Hose
3FILL HOSE 5' W/WASHER
4WP9740848 Whirlpool Dishwasher Screw
5WP8568314 Whirlpool Strap
6Panel, Rear
7WP62747 Whirlpool Pad
9WP8557301 Whirlpool Timer
10WP3351614 Whirlpool Screw
11WP90767 Whirlpool Screw
12Switch, Water Level
13WP3948608 Whirlpool Bracket
14Cord, Power (Includes Illus. 15)
15Strain Relief, Power Cord
17Clip, Capacitor
18WP3979346 Whirlpool Water Inlet Valve
19Edge Protector
20CAPACITOR
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25Clip, Harness & Pressure Hose
26WP8519200 Whirlpool Support Assembly
27Clamp, Hose
288541668 Whirlpool Washer Clamp
29Retainer, Harness
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
34WPW10096921 Whirlpool Hose
358571736 Whirlpool Temperature Switch
36WP3400818 Whirlpool Screw
37W10851055 Whirlpool Cycle Switch
39Panel, Console
42WP8536939 Whirlpool Spring Clip
44Knob, Timer (White)
45WP8544947 Whirlpool Dial
46WPL 8544935
47WPW10339879 Whirlpool Wire Tie
49WP388326 Whirlpool Screw
50WP3390631 Whirlpool Screw
51W10820038 Whirlpool Endcap
53WP8577378 Whirlpool Retainer
55WPL 8539874
56WPL 3957275
