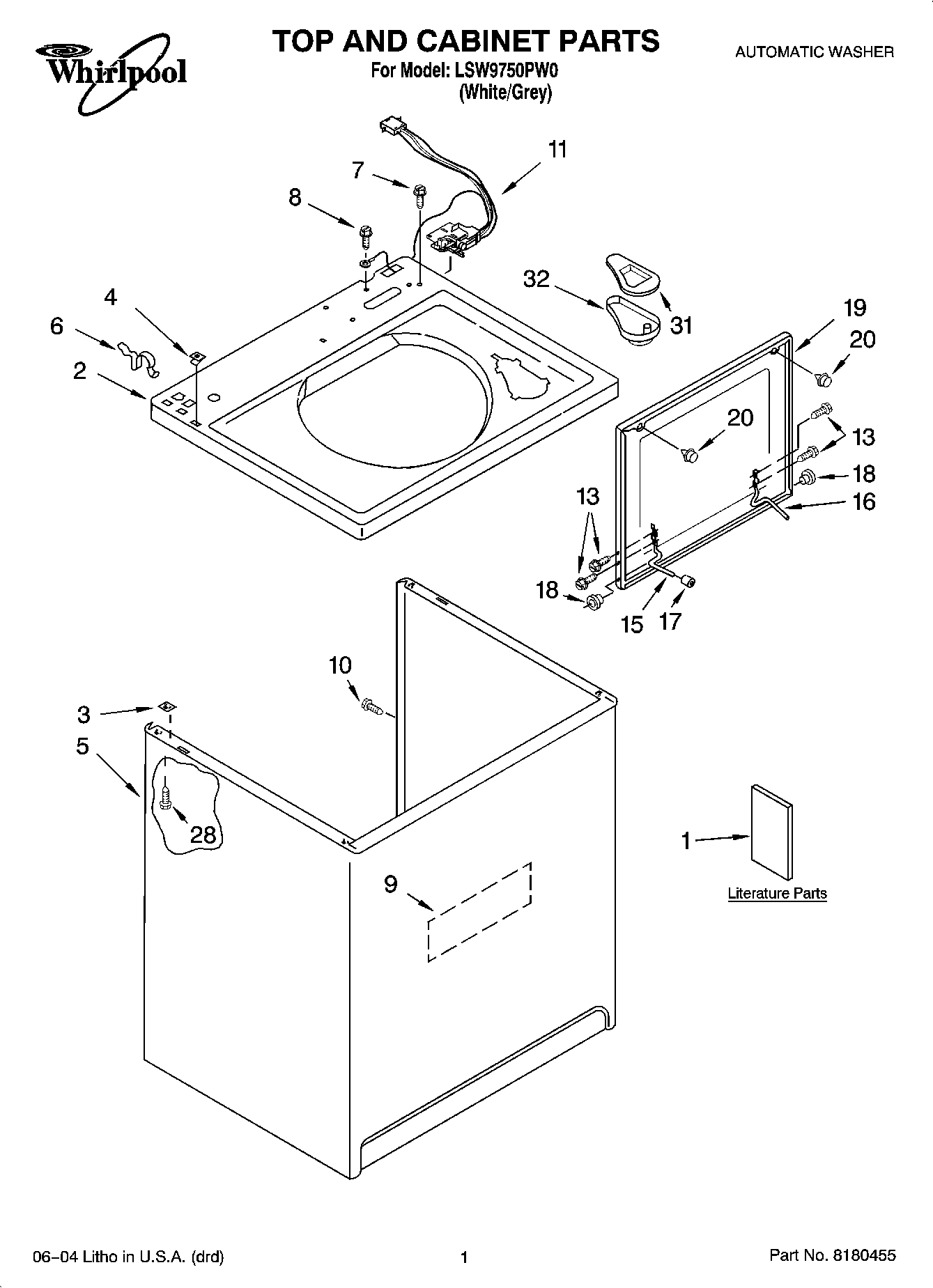

LSW9750PW0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Installation Instructions
1	Manual, Washer Do-It-Yourself
1	Wiring Diagram
1	Feature Sheet
1	Energy Guide
2	Top (White)
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Screw, Lid Switch (2)
8	WP3351614 Whirlpool Screw
9	Cabinet – Sound Damper
10	WP308685 Whirlpool Microwave Screw
11	WP8054980 Whirlpool Lid Switch Assembly
13	SCREW
15	Hinge, Lid (L.H.)
16	Hinge, Lid (R.H.)
17	Bumper, Lid Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
20	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
32	Dispenser, Bleach
