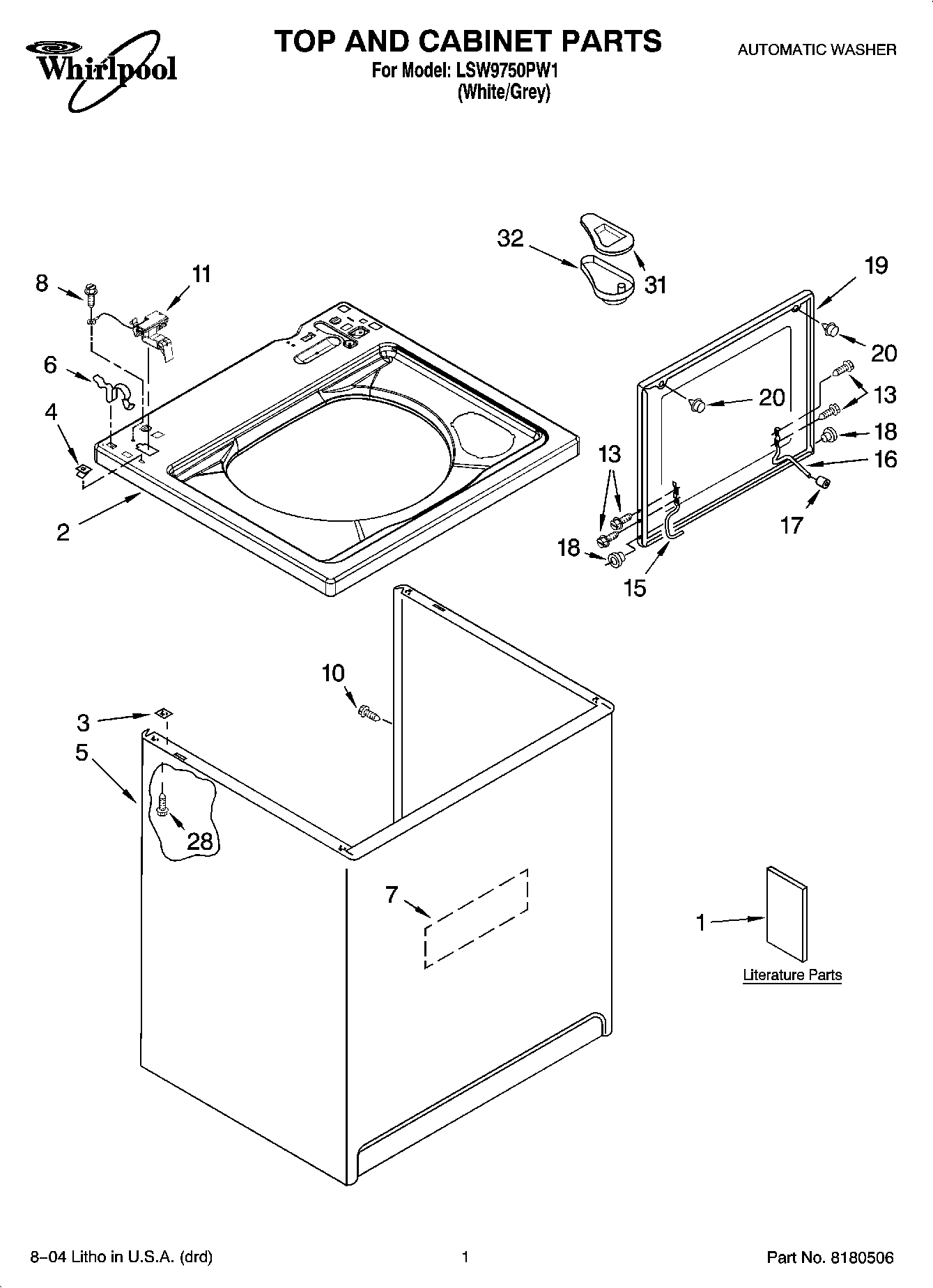

LSW9750PW1 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Energy Guide
1	Use & Care Guide
1	Feature Sheet
1	Wiring Diagram
1	Installation Instructions
1	Manual, Washer Do-It-Yourself
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet – Sound Damper
8	WP3351614 Whirlpool Screw
10	WP308685 Whirlpool Microwave Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	Hinge, Lid (L.H.)
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
20	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
32	Dispenser, Bleach
