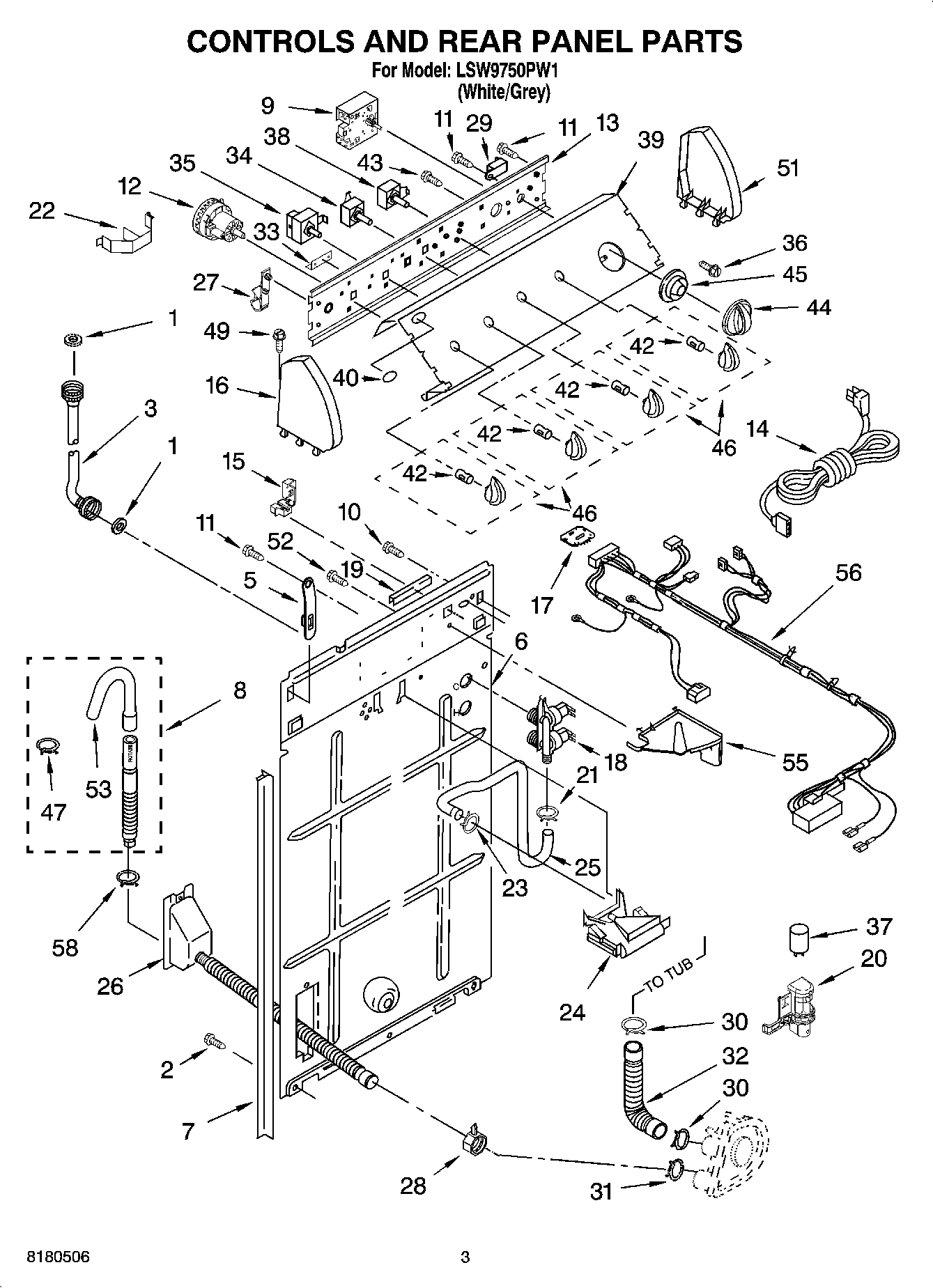

LSW9750PW1 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3390631 Whirlpool Screw
3	WP89503 Whirlpool Washer Fill Hose
5	WP8568314 Whirlpool Strap
6	WP3357978 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
9	WP8557301 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
17	Control, Automatic Temp. (ATC)
18	WP3979346 Whirlpool Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	Clip, Harness & Pressure Hose
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	HOSE
26	WPW10358149 Whirlpool Hose
27	Retainer, Harness
28	Clamp, Hose
29	WP694419 Whirlpool Buzzer Adjuster
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Shield, ATC
34	WPW10168257 Whirlpool Cycle Switch
35	Switch, Water Temperature
36	WP3400818 Whirlpool Screw
37	CAPACITOR
38	W10851055 Whirlpool Cycle Switch
39	Panel, Console
40	WPL 3400985
42	WP8536939 Whirlpool Spring Clip
43	3400073 Whirlpool Screw
44	Kn
45	WP8544947 Whirlpool Dial
46	WPL 8544937
47	WP3357331 Whirlpool Clamp
49	WP388326 Whirlpool Screw
51	W10820038 Whirlpool Endcap
52	WP9740848 Whirlpool Dishwasher Screw
53	WP3357027 Whirlpool Nozzle Assembly
55	WPL 8539874
56	WPL 3957196
58	WP356138 Whirlpool Hose Clamp
