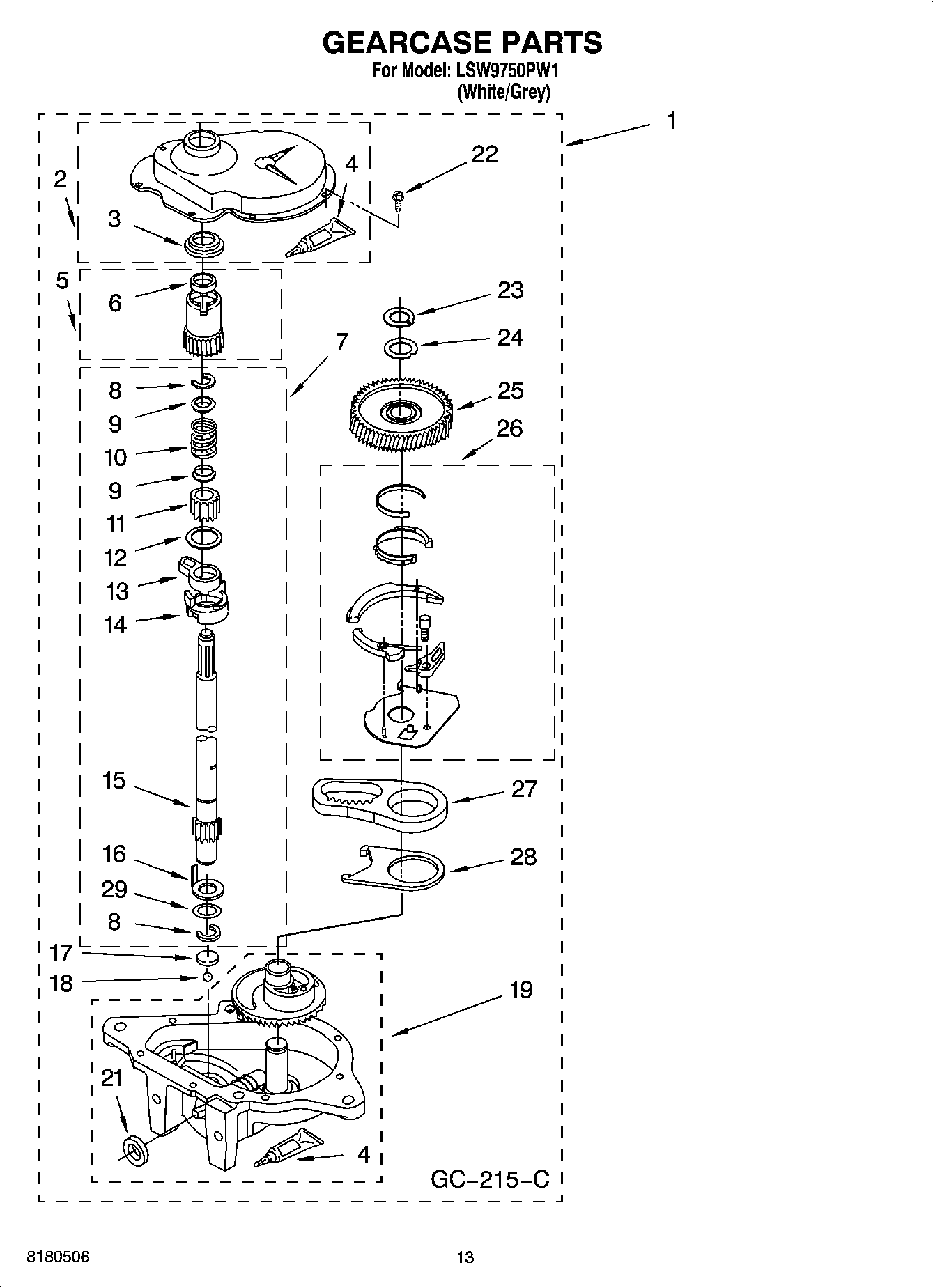

LSW9750PW1 09 – GEARCASE PARTS, MISCELLANEOUS PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Drain Protector (Not Included)
	350572 Whirlpool Oil Transmission 15 Oz
	WPL ARI158816A
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	WPL ARI158813A
	WPL ARI158814A
	WPL ARI158815A
	285320 Whirlpool Washer Siphon Break Kit
	350938 Whirlpool Spray Gun
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
1	Miscellaneous Parts Bag
2	285202 Whirlpool Cover Assembly
2	WP16123 Whirlpool Washer
3	WP3349985 Whirlpool Shaft Seal
3	WP3357331 Whirlpool Clamp
4	WP3359452 Whirlpool Nut
5	WPW10001130 Whirlpool Leveling Leg
6	WP356427 Whirlpool Shaft Seal
6	WP356138 Whirlpool Hose Clamp
8	Ring, Retaining (2)
9	62677 Whirlpool Retainer
10	Spring, Agitator
12	62619 Whirlpool Washer
15	WP389387 Whirlpool Agitator Shaft
16	Washer, Cam Thrust
17	285205 Whirlpool Bearing
19	Bottom and Pinion, Gearcase
21	285352 Whirlpool Washer Oil Seal Kit for Gearcase Input Shaft
22	WP3351614 Whirlpool Screw
23	Ring, Retaining
24	Washer Kit, Thrust
26	NEUTRL-PAK
27	3360629 Whirlpool Washer Gearcase Transmission
29	WP388815 Whirlpool Washer
