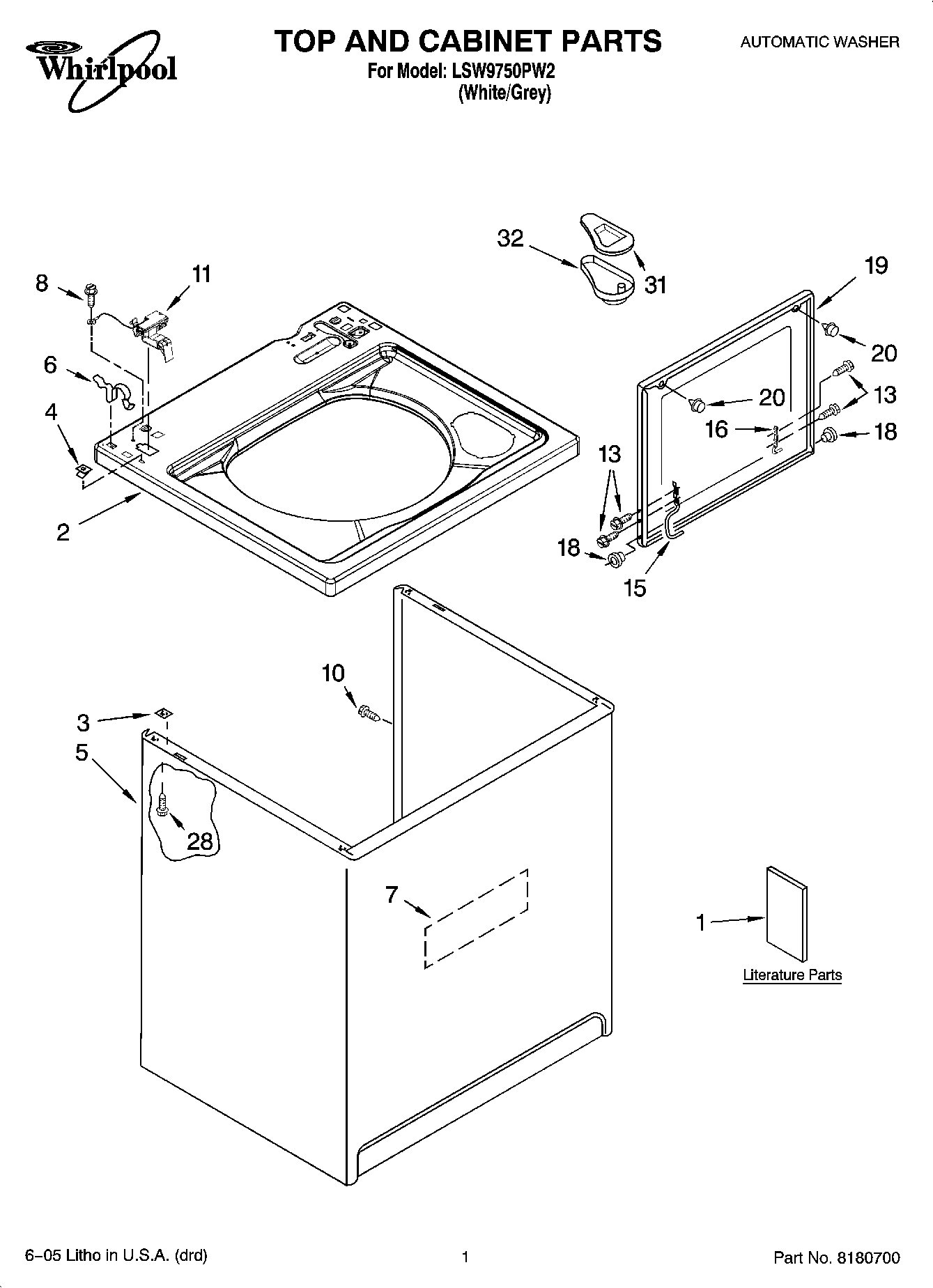

LSW9750PW2 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Energy Guide
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1	Use & Care Guide
1	Feature Sheet
1	Wiring Diagram
1	Manual, Washer Do-It-Yourself
1	Installation Instructions
2	Top
3	WP62750 Whirlpool Spacer
4	WP357213 Whirlpool Hinge Stopper
5	63424 Whirlpool Cabinet Assembly
6	WP62780 Whirlpool Cabinet Clip
7	Cabinet – Sound Damper
8	WP3351614 Whirlpool Screw
10	WP308685 Whirlpool Microwave Screw
11	WP8318084 Whirlpool Washer Lid Switch Assembly
13	SCREW
15	Hinge, Lid (L.H.)
16	WP91770 Whirlpool Hinge
18	Bearing, Lid Hinge (2)
19	Lid (White)
20	WP9724509 Whirlpool Bumper
28	WP3390631 Whirlpool Screw
31	Cover, Dispenser
32	Dispenser, Bleach
