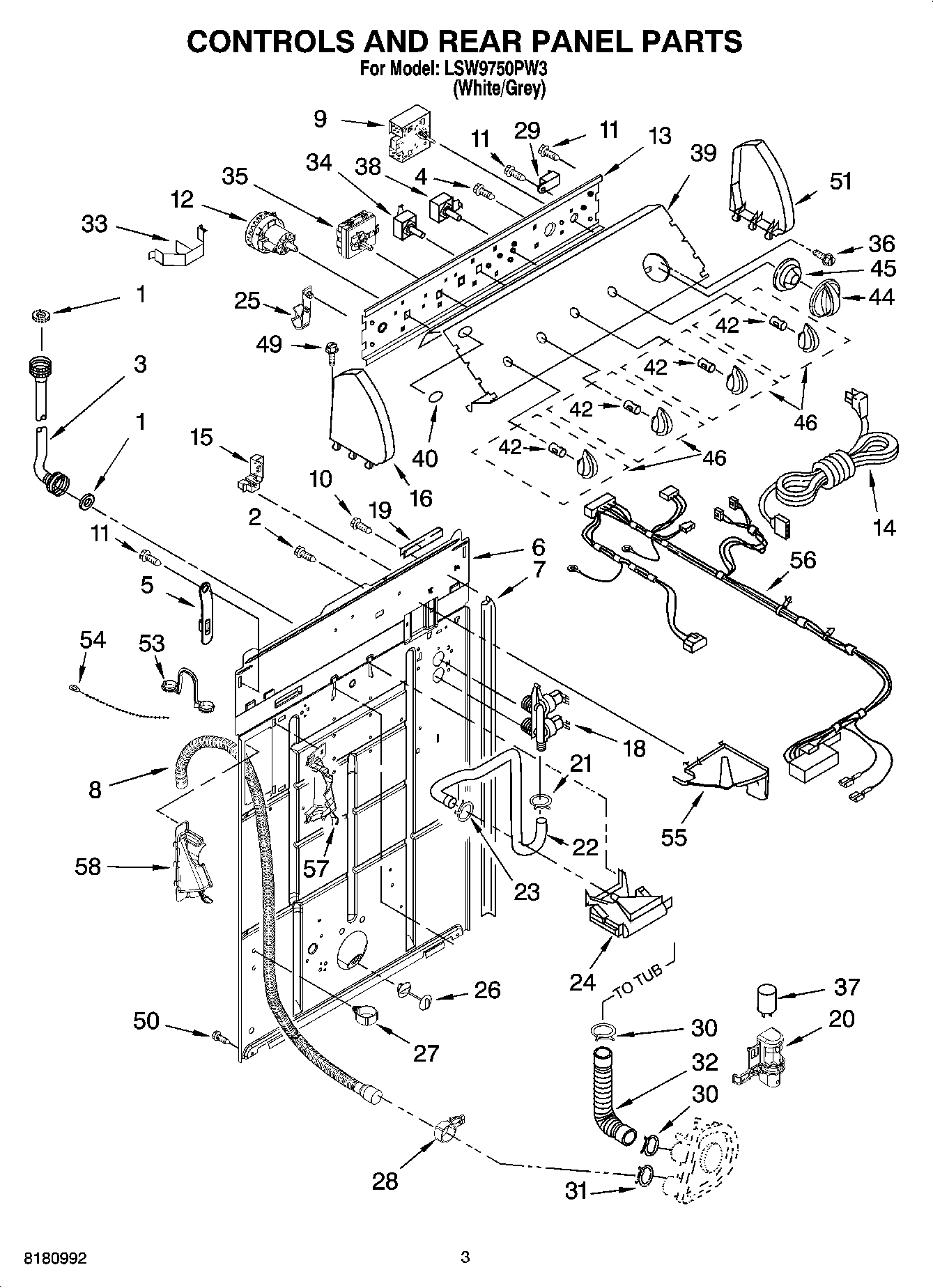

LSW9750PW3 02 – CONTROLS AND REAR PANEL PARTS

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP9740848 Whirlpool Dishwasher Screw
3	WP89503 Whirlpool Washer Fill Hose
3	FILL HOSE 5' W/WASHER
4	3400073 Whirlpool Screw
5	WP8568314 Whirlpool Strap
6	Panel, Rear
7	WP62747 Whirlpool Pad
9	WP8557301 Whirlpool Timer
10	WP3351614 Whirlpool Screw
11	WP90767 Whirlpool Screw
12	Switch, Water Level
13	Bracket, Control
14	Cord, Power (Includes Illus. 15)
15	Strain Relief, Power Cord
18	WP3979346 Whirlpool Water Inlet Valve
19	Edge Protector
20	Clip, Capacitor
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3360977 Whirlpool Washer Tub Fill Nozzle
25	Retainer, Harness
26	WP8519200 Whirlpool Support Assembly
27	Clamp, Hose
28	8541668 Whirlpool Washer Clamp
29	WP694419 Whirlpool Buzzer Adjuster
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
33	Clip, Harness & Pressure Hose
34	WPW10168257 Whirlpool Cycle Switch
35	8571736 Whirlpool Temperature Switch
36	WP3400818 Whirlpool Screw
37	CAPACITOR
38	W10851055 Whirlpool Cycle Switch
39	Panel, Console
40	WPL 3400985
42	WP8536939 Whirlpool Spring Clip
44	Kn
45	WP8544947 Whirlpool Dial
46	WPL 8544937
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	W10820038 Whirlpool Endcap
53	WP8577378 Whirlpool Retainer
54	WPW10339879 Whirlpool Wire Tie
55	WPL 8539874
56	WPL 3957274
57	WPL ARI158824A
58	WPW10096921 Whirlpool Hose
58	Miscellaneous Parts Bag
58	WPL ARI158825A
58	WPL ARI158826A
