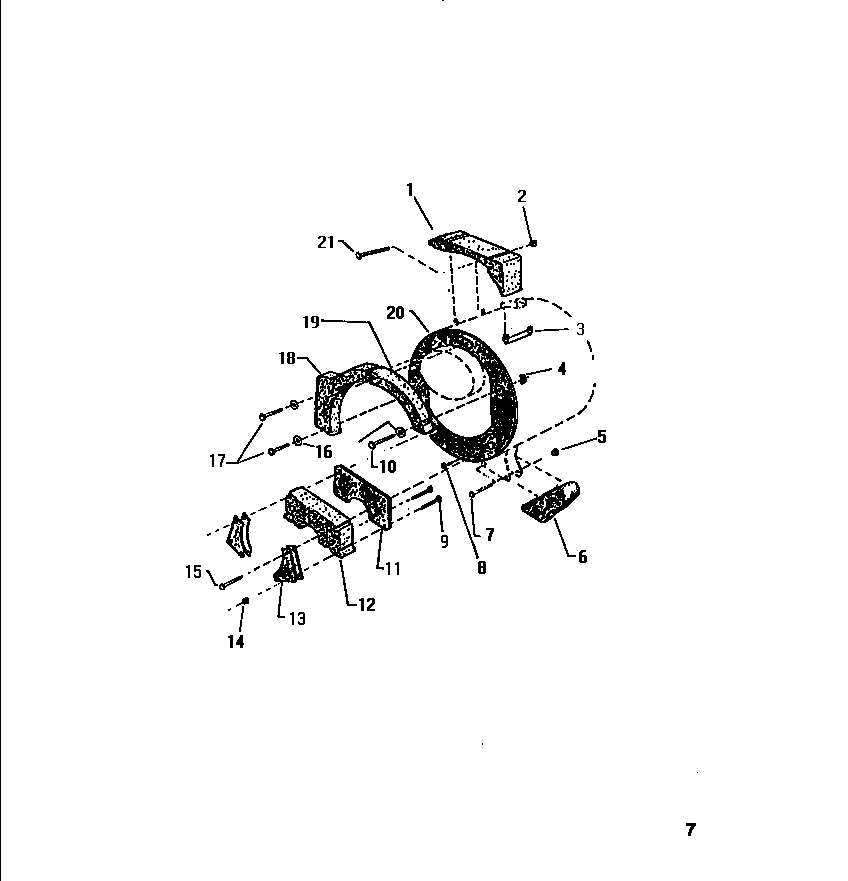

LT150EXW2 07 – COUNTERWEIGHT SECTION

Products

PositionProduct
1COUNTERWEIGHT TOP
2WCI Q500831
3WCI Q613875
4NUT 6 REQ.
6COUNTERWEIGHT BOTTOM LEFT
8WCI Q505564
10BOLT 2 REQ.
11BRKT
12COUNTERWEIGHT LOWER CENTER
13BRKT 2 REQ.
14NUT 4 REQ.
15BOLT 2 REQ.
16WASHER 2 REQ.
17BOLT 2 REQ.
18COUNTERWEIGHT, CTR LEFT
19COUNTERWEIGHT, UPPER RIGHT
20RING COUNTERWEIGHT
21BOLT 2 REQ.
