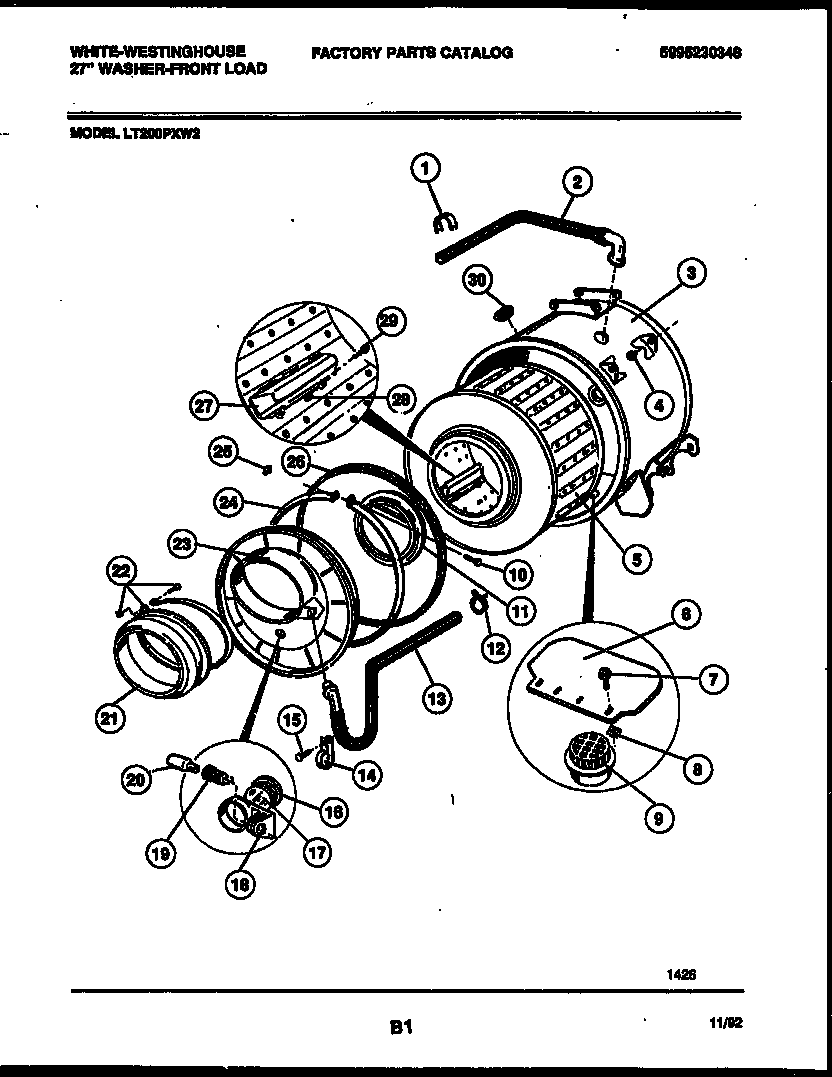

LT200PXW2 04 – TUB AND COMPONENTS

LT200PXW2 04 – TUB AND COMPONENTS

Written by

in

LT200PXW2 04 – TUB AND COMPONENTS

Products

PositionProduct
*71703WCI 5303286618
*71703WCI 08015356
1WCI 5300605241
2WCI 5303203056
3WCI 3203005
4WCI 5300125501
5WCI 5303203006
6WCI 5303203007
8NUT, SUMP CVR (NON-ILLUSTRATED)
9WCI 5303283920
10WCI 08015332
11WCI 5303261136
12154348401 Frigidaire Dishwasher Clamp
13WCI 5308015184
14WCI 08015369
15SCREW
16WCI 5300501201
17WCI 5300000495
18WCI 5300028710
19WCI 5308015211
20WCI 3203012
21WCI 5303261132
22WCI 5303261133
23WCI 5300137181
24WCI 5303272669
25WCI 08015290
26WCI 5303261135
27WCI 5308015245
283203010 Frigidaire Clip
29SCREW (4)
30WCI 3261139
