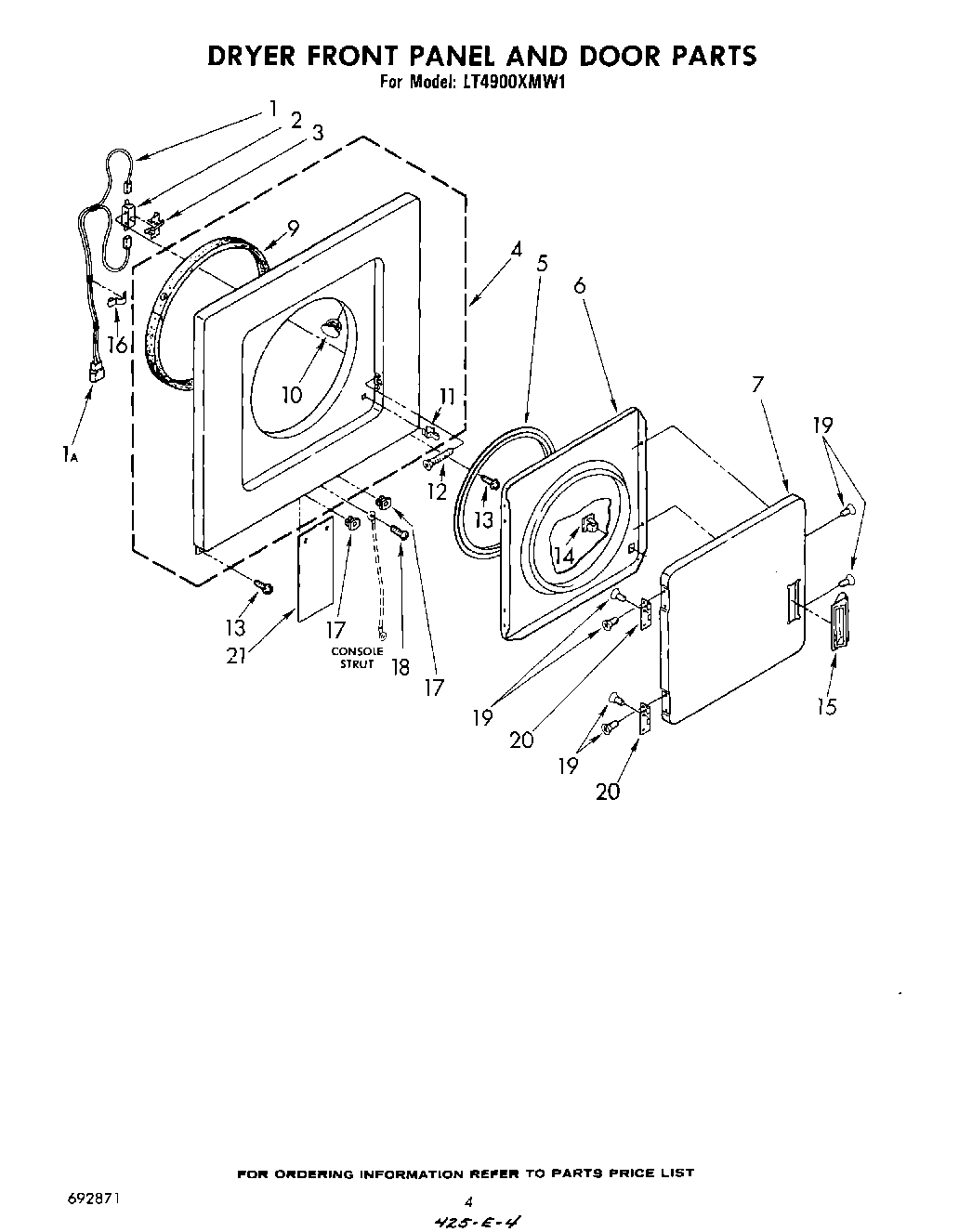

LT4900XMW1 03 – DRYER FRONT PANEL AND DOOR

Products

Position	Product
1	Harness, Door Switch (Includes Illus. 1A)
1	WP717253 Whirlpool Dishwasher Connector
2	W10820036 Whirlpool Door Switch Kit
3	WP691581 Whirlpool Actuator
4	Panel, Front (Almond)
4	Panel, Front (Golden Harvest)
4	Panel, Front (Platinum)
4	Panel, Front (Toast)
4	285314 Whirlpool O/S1 Panel
5	W11613302 Whirlpool Door Seal
6	280077 Whirlpool Door
7	Door, Front (Toast)
7	WPL 689319
7	Door, Front (Almond)
7	Door, Front (Platinum)
7	WP348205 Whirlpool Door
9	279264 Whirlpool Bearing and Seal Kit
10	279220 Whirlpool Clip
12	WP98129 Whirlpool Screw
13	SCREW
14	279570 Whirlpool Dryer Door Latch Kit
15	Handle, Door (Almond)
15	Handle, Door (Platinum)
15	Handle, Door (Golden Harvest)
15	WP686711 Whirlpool Door Handle
16	Support Protector
17	Fastener, Push (2)
18	WP90767 Whirlpool Screw
19	WP694091 Whirlpool Screw
20	WP348023 Whirlpool Hinge
21	Barrier, Harness
