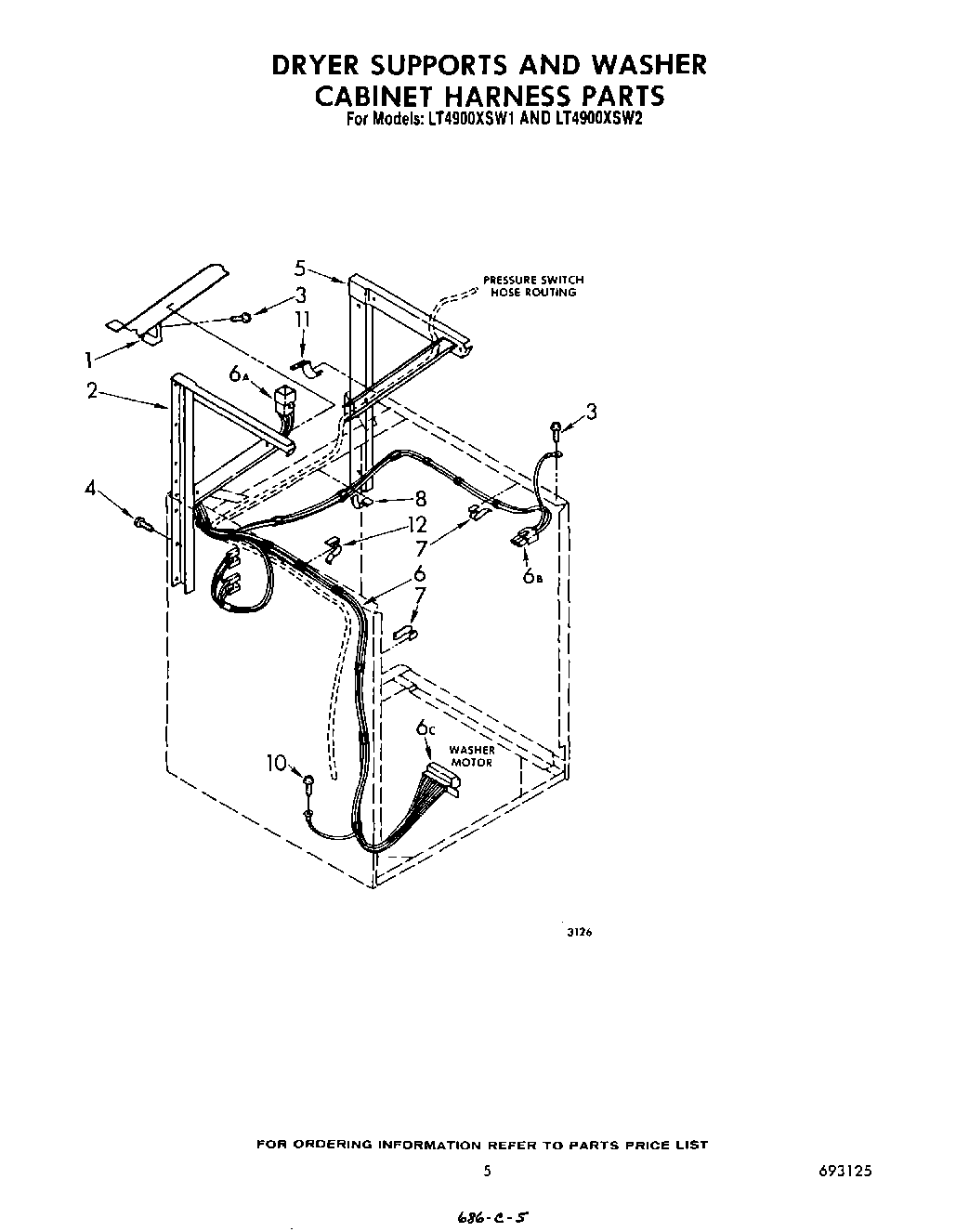

LT4900XSW2 04 – DRYER SUPPORTS AND WASHER CABINET H

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6WP62505 Whirlpool Connector
6WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
7Clip, Wiring Harness (8)
8Clip, Pressure Switch Hose And Wiring Harness (3)
10WP488234 Whirlpool Air Conditioner Screw
11WP90016 Whirlpool Clip
12CLIP
