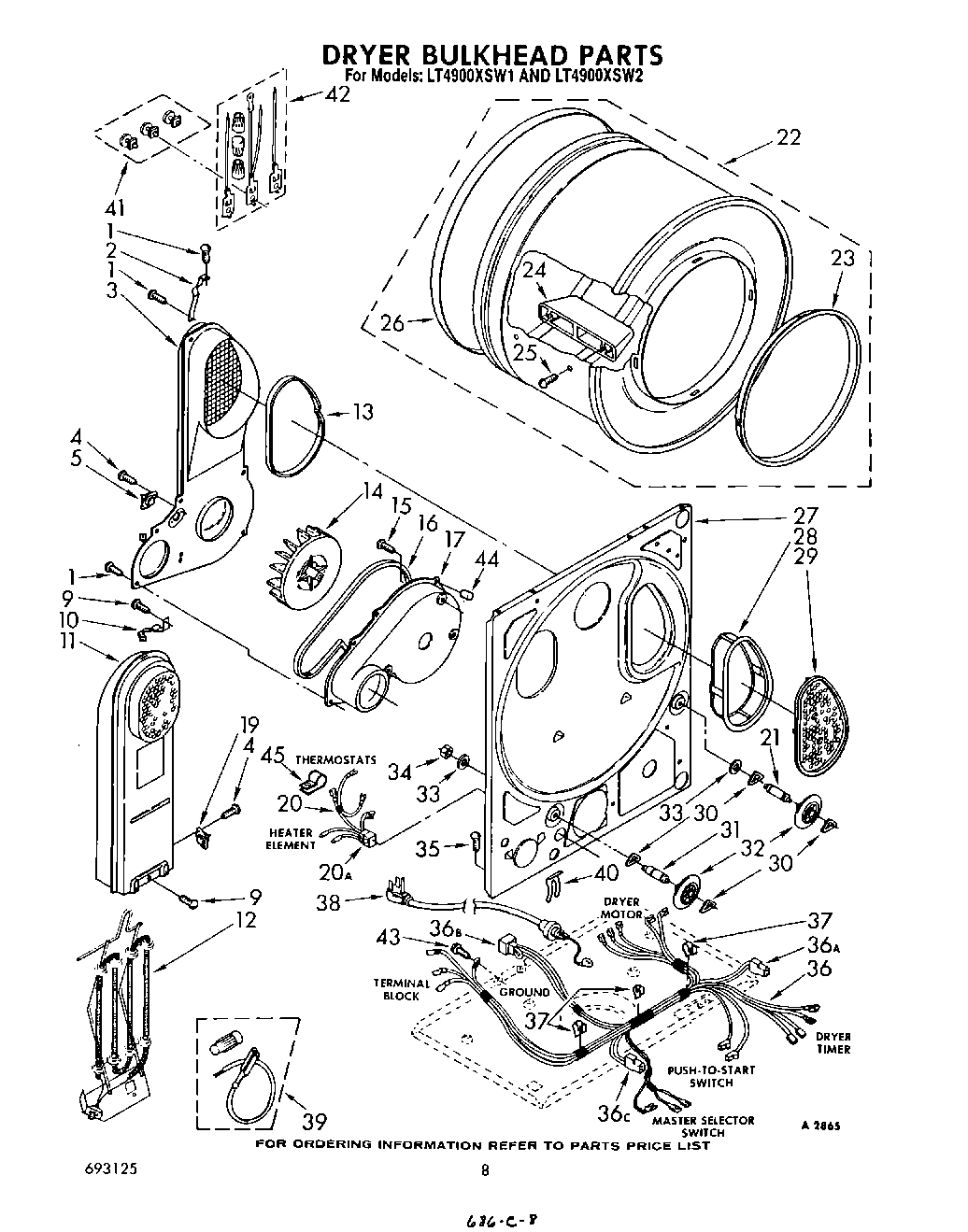

LT4900XSW2 06 – DRYER BULKHEAD

LT4900XSW2 06 – DRYER BULKHEAD

Products

PositionProduct
1SCREW
2345396 Whirlpool Clip
3Air Duct & Bracket
4WP90767 Whirlpool Screw
5WP694674 Whirlpool Cycling Thermostat
10279771 Whirlpool Clip
11Box, Heater
12279506 Whirlpool Element
13SEAL
14WP696426 Whirlpool Wheel
15WP308685 Whirlpool Microwave Screw
16Seal, Fan Scroll
17WP696418 Whirlpool Fan Scroll
19Thermostat, 180~F (82~C)
19(Alt.)
20Harness, Thermostat & Heater (Includes Illus. 20A)
20Plug, Multi- Terminal 56B
21SHAFT SUPPORT ROLLER DRYER
223391834 Whirlpool Drum
23WP3394508 Whirlpool Bearing Ring
24685207 Whirlpool Dryer Baffle
25Screw, 11-16 x 7/8
26SEAL
27279848 Whirlpool Bulkhead
28W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31SHAFT SUPPORT ROLLER DRYER
32349241T Whirlpool Dryer Drum Support Roller Kit
33WP348197 Whirlpool Washer Assembly
34WP358160 Whirlpool Nut
35WP3390631 Whirlpool Screw
36WPL 717315
36Receptacle, Latching (2-Way) (Uses Terminal 94614)
36Harness, Main Dryer Wiring (Includes Illus. 36A, 36B & 36C)
36Receptacle (2)
37CLIP
38WPW10581952 Whirlpool Power Cord
39279457 Whirlpool Dryer Heating Element Wide Spade Connection
40W11712577 Whirlpool Clip
41279393 Whirlpool Terminal Block Screw and Nut Kit
42279318 Whirlpool Terminal
44W10491983 Whirlpool Tine Tip
45488946 Whirlpool Air Conditioner Clamp
