LT4900XSW2 11 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

LT4900XSW2 11 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Written by

in

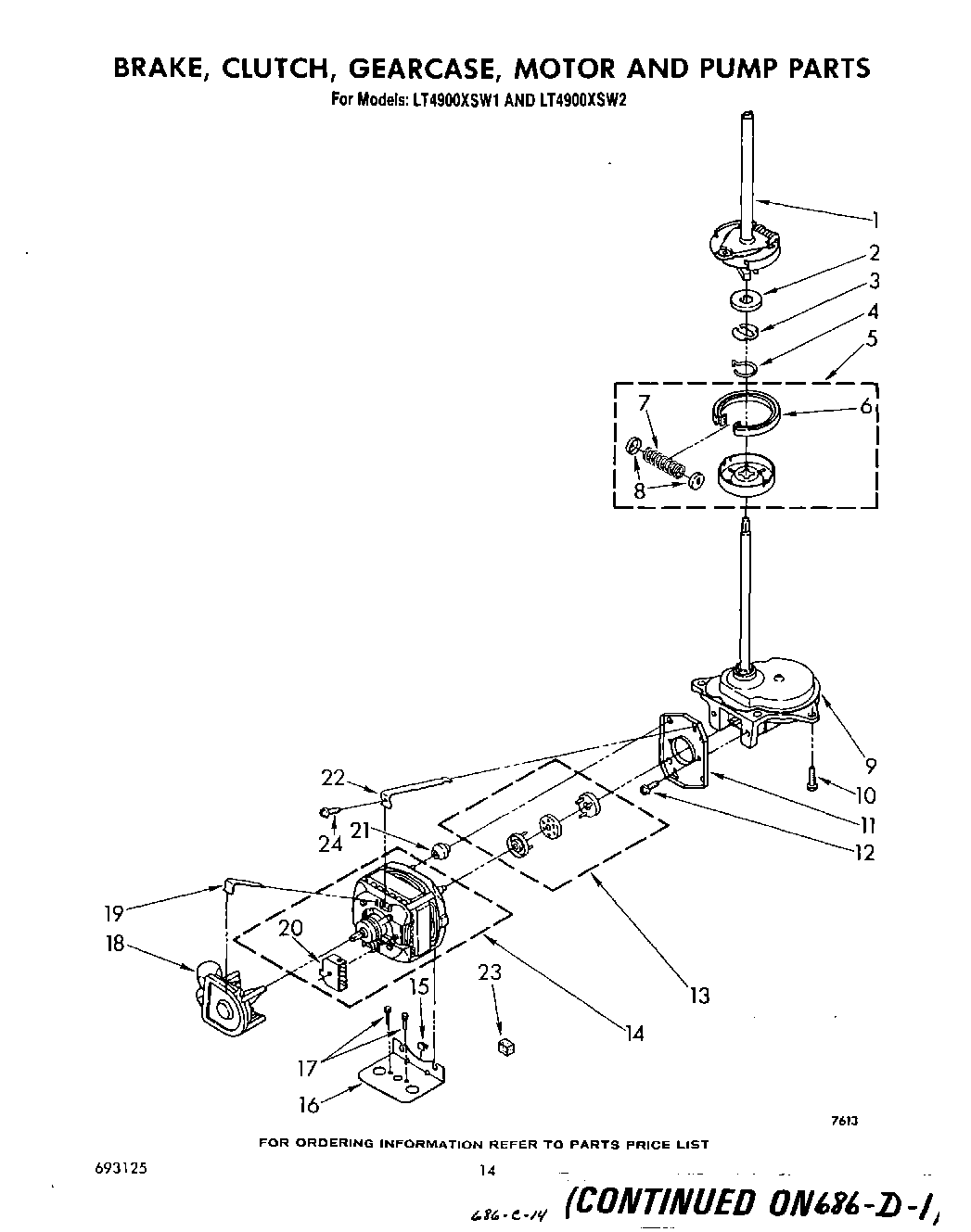

LT4900XSW2 11 – BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

Products

PositionProduct
1W10820043 Whirlpool Washer Drive and Brake Basket Assembly
2WP63292 Whirlpool Washer
3WPW10080230 Whirlpool Ring
4285353 Whirlpool Ring
5285785 Whirlpool Washer Direct Drive Clutch
6285790 Whirlpool Washer Clutch Band and Lining Kit
8WP62646 Whirlpool Cap
93360629 Whirlpool Washer Gearcase Transmission
10Screw, Gearcase To Base (3) (5/16-24 x 3/4)
11WP62611 Whirlpool Plate
12WP3400516 Whirlpool Screw
13285753A Whirlpool Washer Direct Drive Motor Coupling
14WP661600 Whirlpool Drive Motor
15Clip
16WP3946532 Whirlpool Shield
17238614 Whirlpool Bumper Hinge
18WP3363394 Whirlpool Washer Drain Pump
19WP8546127 Whirlpool Retainer Clip
20Switch, Main Drive Motor
21WP62691 Whirlpool Grommet
22WPW10086010 Whirlpool Motor Retainer Clip
233350013 Whirlpool Foam Seal
24W11573574 Whirlpool Screw
