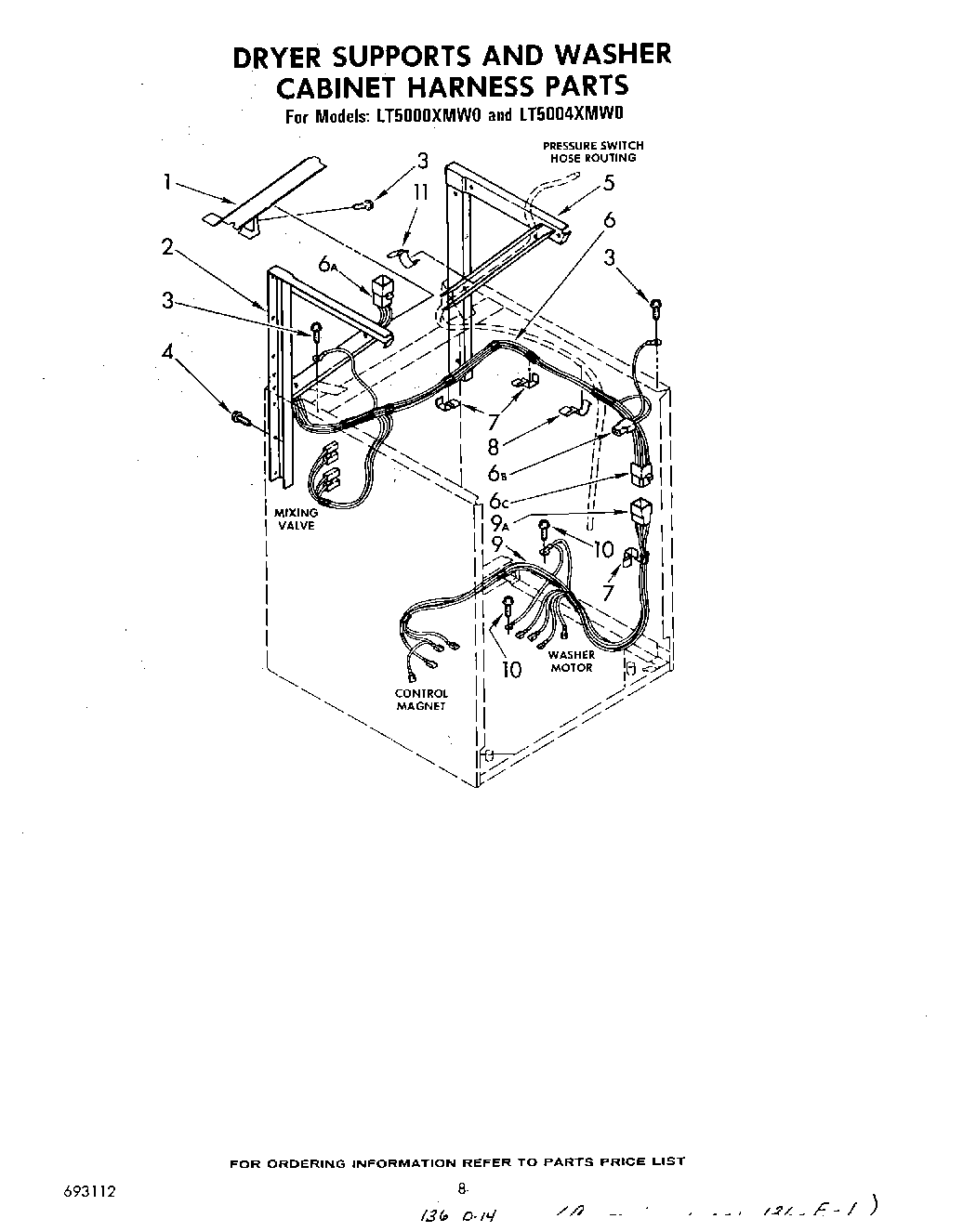

LT5000XMW0 06 – DRYER SUPPORTS AND WASHER CABINET H

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6CPlug, Terminal (Cabinet Harness)
6APlug, Terminal (9-Way) (Connects With Automatic Console Harness)
6B353424 Whirlpool Connector
7Clip, Harness
88528351 Whirlpool Clip
9Harness, Lower (Automatic) (Gearcase To Motor) (Includes Illus. 9A)
9ACap, Terminal (Console Harness)
10WP488234 Whirlpool Air Conditioner Screw
11WP90016 Whirlpool Clip
