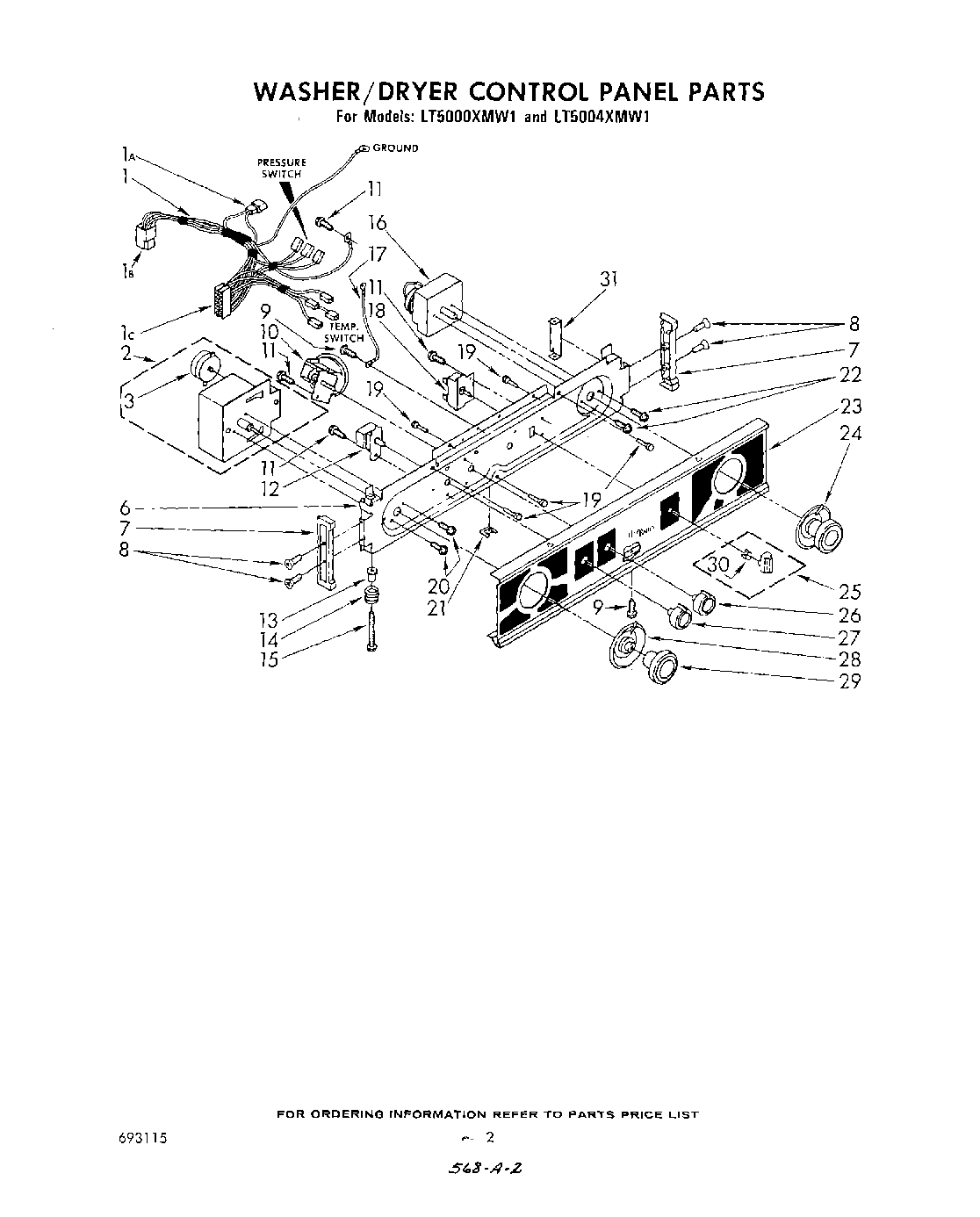

LT5000XMW1 02 – WASHER/DRYER CONTROL PANEL

LT5000XMW1 02 – WASHER/DRYER CONTROL PANEL

Written by

in

LT5000XMW1 02 – WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1CW10876590 Whirlpool Connector
1Harness, Console Wiring (Automatic) (Includes Illus. 1A, 1B & 1C)
1BReceptacle, Connector (Connects With Lower Automatic Harness)
1AWP717253 Whirlpool Dishwasher Connector
2Timer, Control (60 Hz.) (Automatic Washer)
3Motor, Timer 60 Hz.
6Bracket, Control
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10Switch, Water Level
11WP3390631 Whirlpool Screw
12Switch, Water Temperature
13693711 Whirlpool Sleeve
14WP693151 Whirlpool Lock Spring
15Screw, Console Lock (2)
16Timer, Control (60 Hz.) (Dryer) (Timer Motor Not Serviceable)
17Strut, Console
18Switch, Push-To-Start
19693152 Whirlpool Bumper
20WP356418 Whirlpool Screw
21694037 Whirlpool Clip
22303776 Whirlpool Dishwasher Screw
23Panel, Control
24Timer Knob Assembly
25Button Assembly
27Knob & Clip, Water Temperature
28Dial, Timer
29Knob, Timer
30Clip
31WP692983 Whirlpool Console Lock
