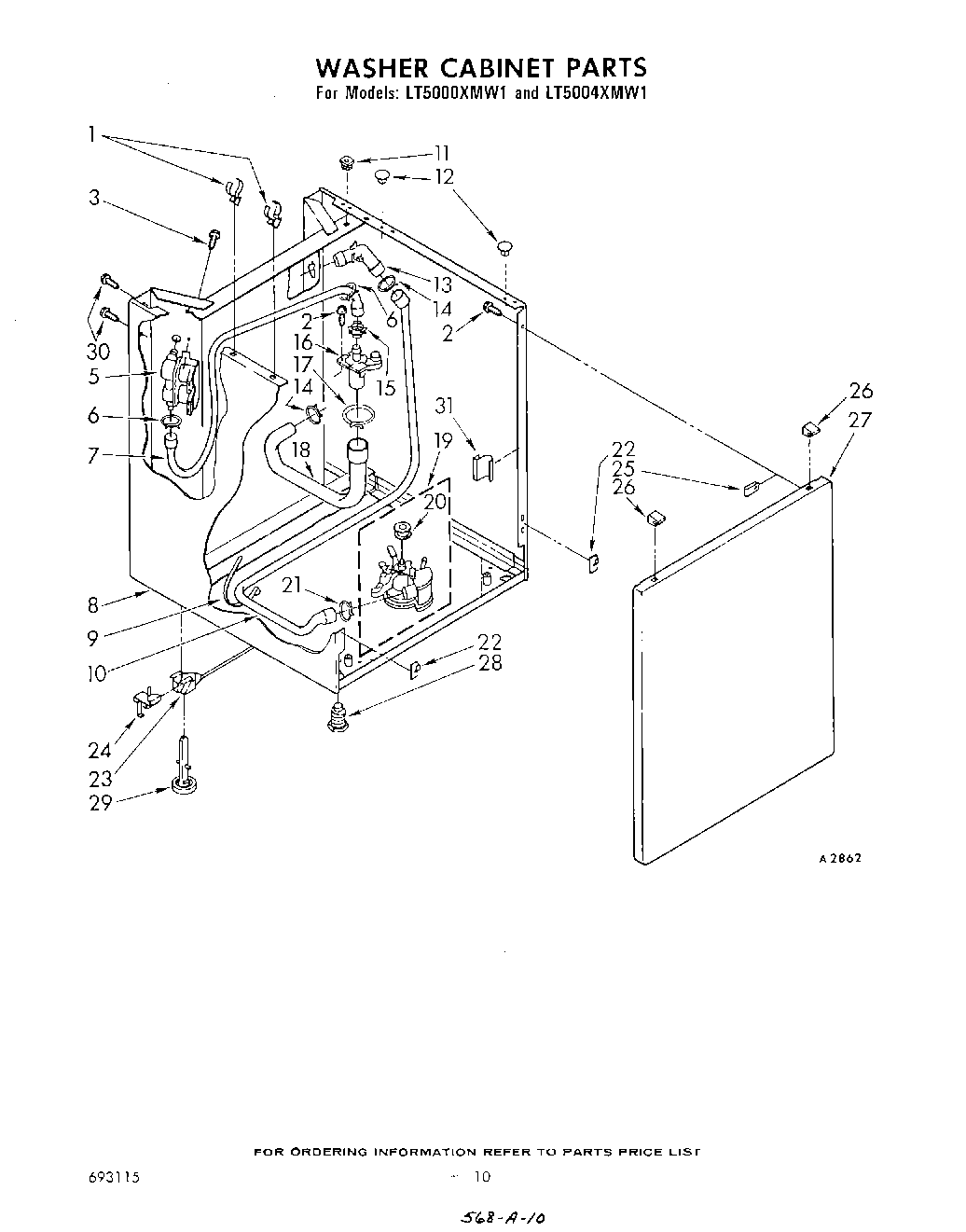

LT5000XMW1 08 – WASHER CABINET

Products

Position	Product
1	356746 Whirlpool Clip
2	SCREW
3	WP3390631 Whirlpool Screw
5	285805 Whirlpool Washer Water Inlet Valve
6	WP596669 Whirlpool Hose Clamp
7	WP692699 Whirlpool Hose
8	Cabinet (Golden Harvest)
8	Cabinet (White)
8	Cabinet (Almond)
8	Cabinet (Platinum)
8	Cabinet (Toast)
9	WPW10339879 Whirlpool Wire Tie
10	Hose, Drain
11	WP692400 Whirlpool Nut
12	WP660975 Whirlpool Button Plug
13	W11213338 Whirlpool Connector
14	Clamp, Hose
15	WP356471 Whirlpool Cap
16	WP356363 Whirlpool Siphon Break
17	WP616099 Whirlpool Clamp
18	Hose, Water Inlet (Siphon Break To Tub Ring)
19	Pump Assembly (Complete)
20	Pulley, Pump
21	WP285655 Whirlpool Hose Clamp
22	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
23	WP358652 Whirlpool Link
24	WP359364 Whirlpool Clip
25	WP98234 Whirlpool Nut
26	WP345670 Whirlpool Lock
27	Panel, Front (Golden Harvest)
27	Panel, Front (Platinum)
27	Panel, Front (Toast)
27	Panel, Front (Almond)
27	WP692628 Whirlpool Panel
28	WP367594 Whirlpool Leveling Feet
29	WP358594 Whirlpool Leveling Feet
30	WP308544 Whirlpool Screw
31	Pad, Extruder (2)
