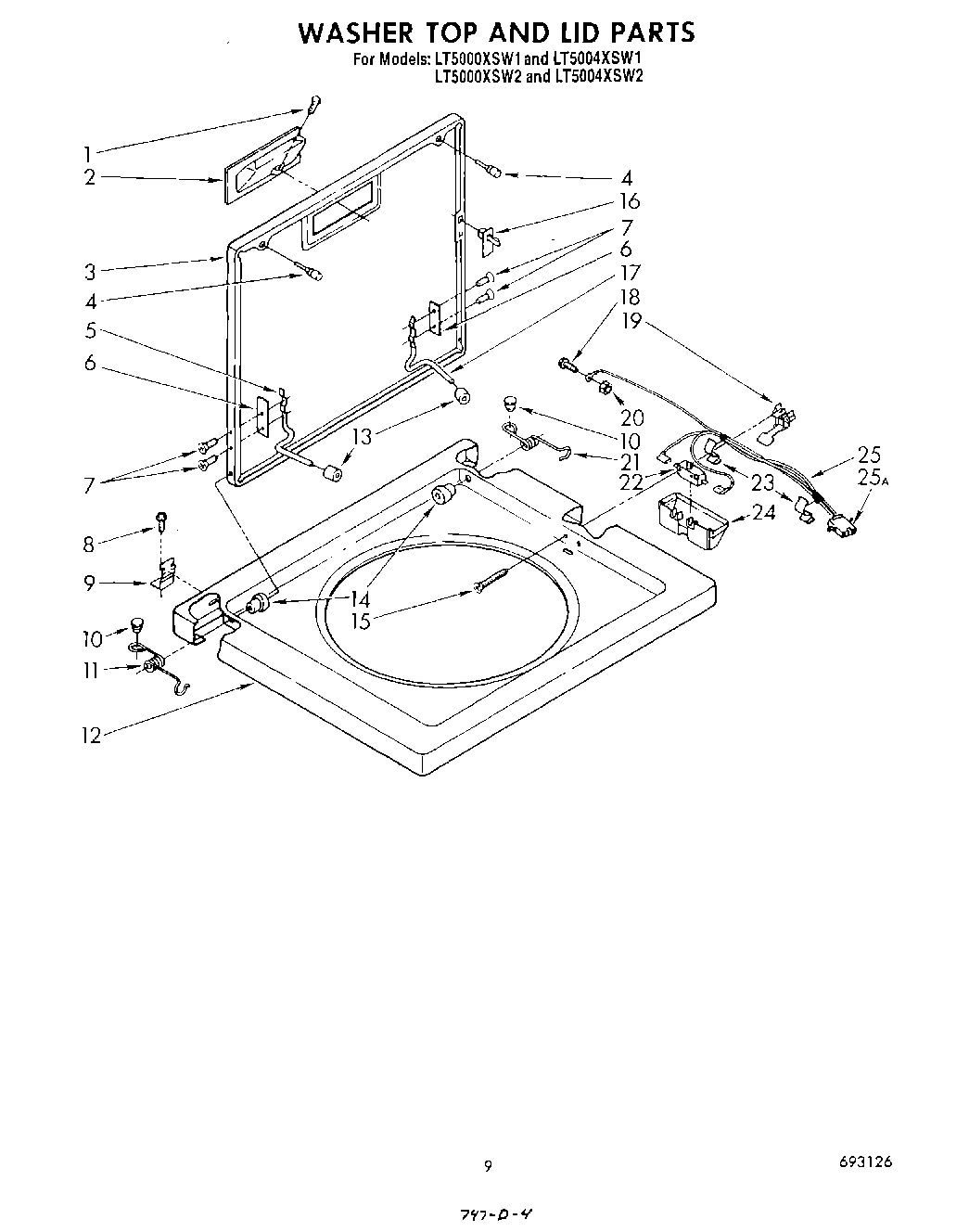

LT5000XSW1 07 – WASHER TOP AND LID

Products

Position	Product
1	Screw
2	Handle, Lid (Almond)
2	Handle, Lid (Golden Harvest)
2	Handle, Lid (Toast)
2	Handle, Lid (Platinum)
2	Handle, Lid (White)
3	Lid (White Model)
3	Lid (Golden Harvest)
3	Lid (Almond Model)
3	Lid (Platinum)
3	Lid (Toast)
4	80011 Whirlpool Washer Lid Bumper Kit of 2
5	384458 Whirlpool Hinge Assembly
6	WP21097 Whirlpool Pad
7	SCREW
8	SCREW
9	WP692985 Whirlpool Clip Assembly
10	Plug, Button
11	Spring, Lid (L.H.) (Includes Illus 10)
12	WP384693 Whirlpool Top
12	Top (Platinum)
12	Top (Toast)
12	Top (Golden Harvest)
12	Top (Almond)
13	Bumper, Lid Hinge
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	Screw & Washer, Lid Switch (2)
16	WP358684 Whirlpool Strike Assembly
17	384459 Whirlpool Hinge
18	WP308544 Whirlpool Screw
19	Actuator, Lid Switch
20	W10080180 Whirlpool Nut
21	Spring, Lid (R.H.) (Includes Illus. 10)
22	W10820036 Whirlpool Door Switch Kit
23	WP90016 Whirlpool Clip
24	WP359231 Whirlpool Shield
25	Harness, Lid Switch
25A	Plug, Terminal (3-Way)
