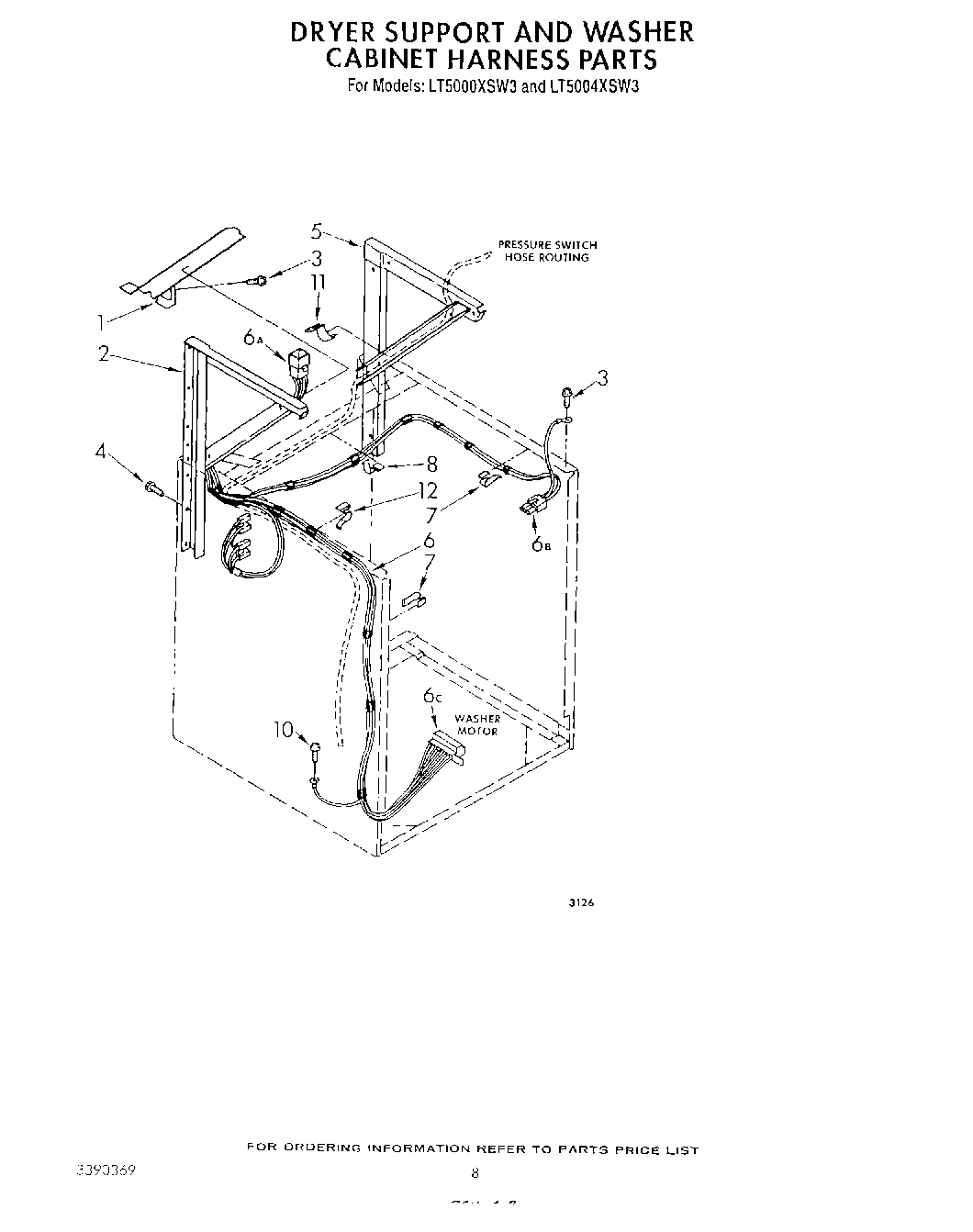

LT5000XSW3 06 – DRYER SUPPORT AND WASHER CABINET HA

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6BWP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6CWP62505 Whirlpool Connector
6APlug, Terminal (12-Way) (Connects With Automatic Console Harness)
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
7Clip, Wiring Harness (8)
8Clip, Pressure Switch Hose And Wiring Harness (3)
10WP488234 Whirlpool Air Conditioner Screw
11WP90016 Whirlpool Clip
12CLIP
