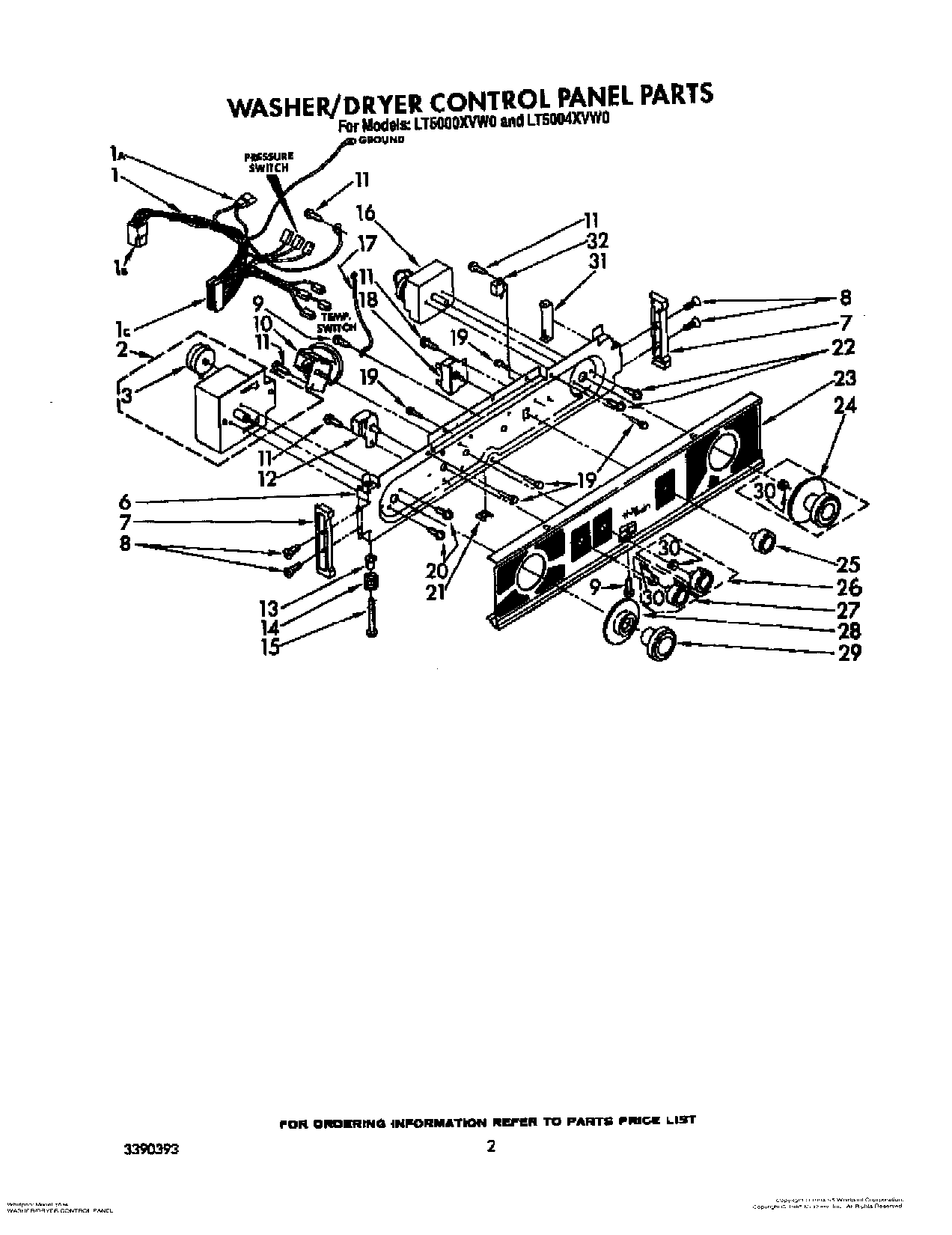

LT5000XVN0 02 – WASHER/DRYER CONTROL PANEL

Products

PositionProduct
1W10876590 Whirlpool Connector
1Harness, Console Wiring (Automatic) (Includes Illus.1A, 1B & 1C)
1696073 Whirlpool Connector
1Plug
2WP3946432 Whirlpool Timer
3Motor, Timer
6Bracket, Control
7End Cap, Console (L.H. & R.H.)
8NAMEPLATE
9WP694091 Whirlpool Screw
10Switch, Water Level
11WP3390631 Whirlpool Screw
12Switch, Water Temperature (Alt.)
12Switch, Water Temperature (Alt.)
12Switch, Water Temperature
13693711 Whirlpool Sleeve
14WP693151 Whirlpool Lock Spring
15Screw, Console Lock (2)
16WP3388255 Whirlpool Timer
17Strut, Console
18Switch, Push-To-Start
19693152 Whirlpool Bumper
20WP356418 Whirlpool Screw
21694037 Whirlpool Clip
22303776 Whirlpool Dishwasher Screw
23Panel, Control (White)
23Panel, Control (Almond)
24Knob & Skirt, Dryer Timer (Almond)
24Knob & Skirt, Dryer Timer (White)
25Button, Push-To-Start (Almond)
25Knob, Push To Start
27WP3957805 Whirlpool Knob
27Knob & Skirt (Water Level) (Almond Model)
28Blade, Timer Knob
28WPL 3388186
29Knob, Timer (Almond)
29WPL 3392698
30WP688805 Whirlpool Spring Clip
31WP692983 Whirlpool Console Lock
32WP694419 Whirlpool Buzzer Adjuster
