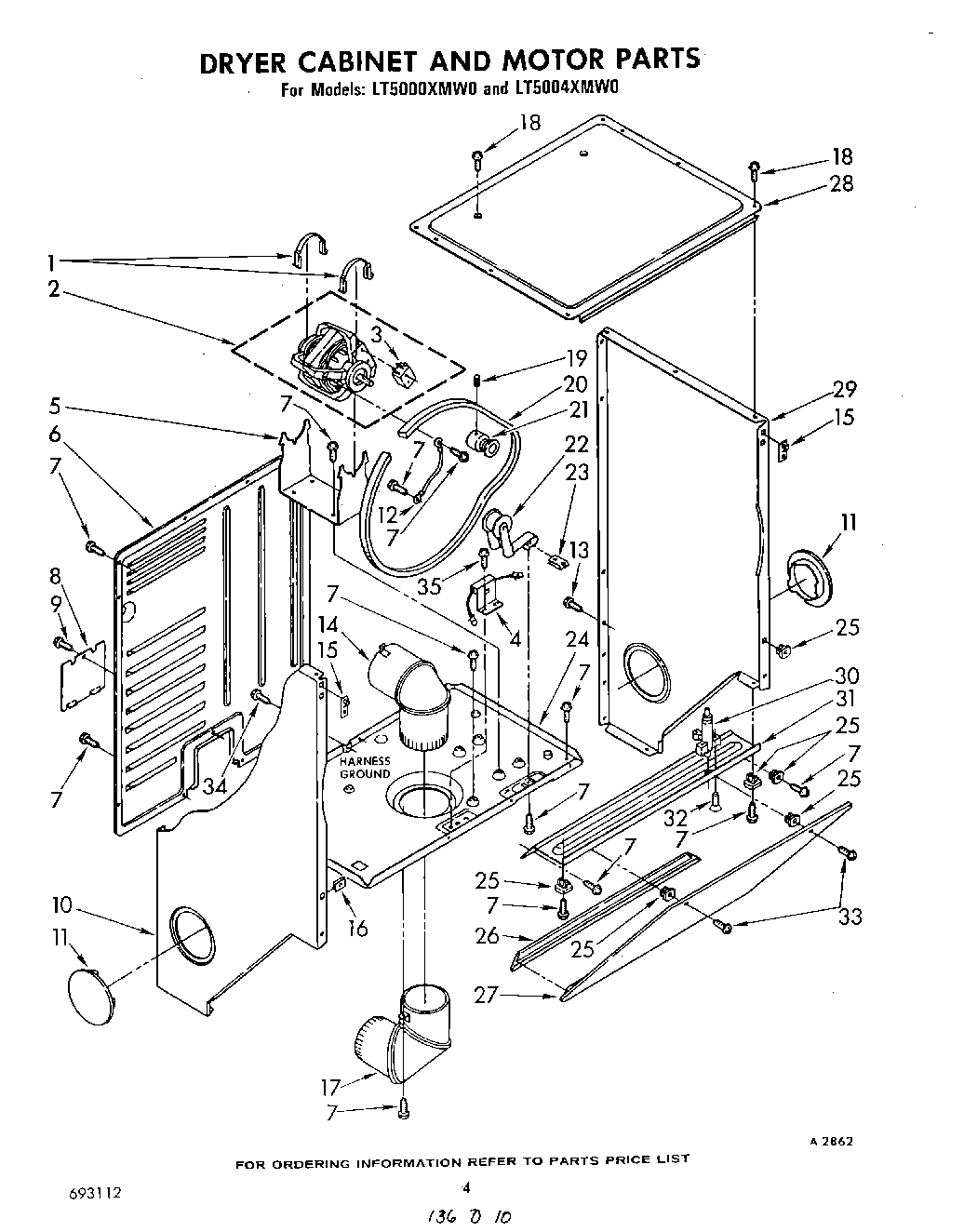

LT5004XMW0 04 – DRYER CABINET AND MOTOR

Products

Position	Product
1	WP660658 Whirlpool Clamp
3	279827 Whirlpool Dryer Drive Motor
4	Power Resistor & Shield
5	696541 Whirlpool Base
6	Panel, Rear
7	SCREW
8	Cover, Service
10	Panel, Side (L.H.) (Almond)
10	Panel, Side (L.H.) (Toast)
10	WP3402293 Whirlpool Panel Assembly
10	Panel, Side (L.H.) (Platinum)
10	Panel, Side (L.H.) (Golden Harvest)
11	692790 Whirlpool Plug
11	Plug, Side Panel (2) (Platinum)
11	Plug, Side Panel (2) (Golden Harvest)
11	Plug, Side Panel (2) (Almond)
11	Plug, Side Panel (2) (Toast)
12	Wire, Ground
13	WP308544 Whirlpool Screw
14	Elbow, Upper
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	WP98234 Whirlpool Nut
17	3399603 Whirlpool Elbow
18	WP308685 Whirlpool Microwave Screw
19	SCREW, SET
20	3394652 Whirlpool Drum Belt
21	WPL 348946
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	WP692771 Whirlpool Nut
24	Base, Dryer
25	WP692400 Whirlpool Nut
26	WP692926 Whirlpool Cover Appliance
27	Panel, Transition (Golden Harvest)
27	Panel, Transition (Platinum)
27	Panel, Transition (Toast)
27	Panel, Transition (Almond)
27	692933 Whirlpool Panel
28	WP692641 Whirlpool Dryer Top Assembly
29	WPL 692611
29	WPL 692610
29	Panel, Side (R.H.) (White)
29	Panel, Side (R.H.) (Almond)
29	Panel, S
30	WP693145 Whirlpool Lid Latch
31	WP692781 Whirlpool Closure Assembly
31	WPL 692782
31	WPL 692783
31	WPL 692784
31	WPL 692785
32	Screw & Washer
33	WP693304 Whirlpool Screw
35	WP3390631 Whirlpool Screw
