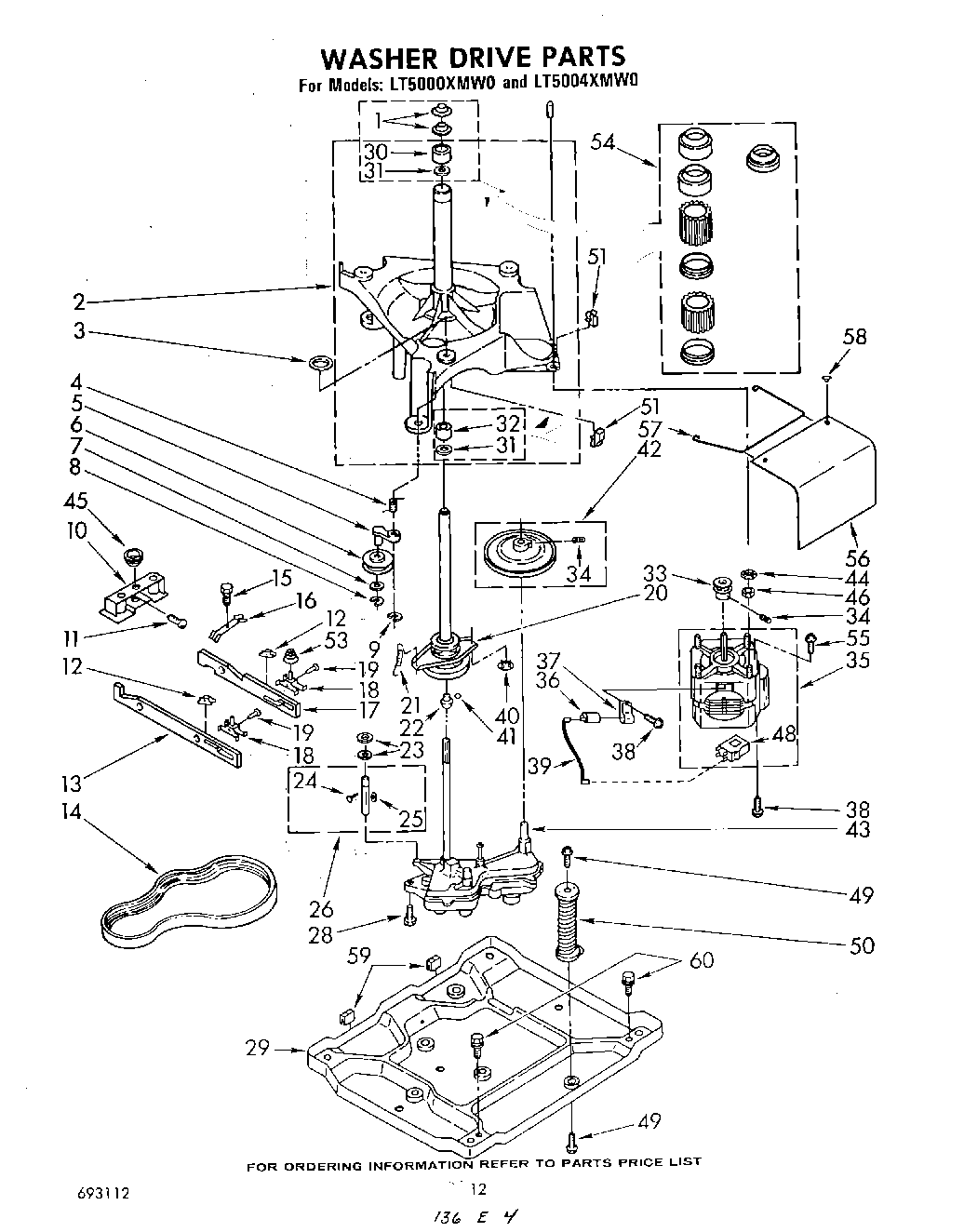

LT5004XMW0 09 – WASHER DRIVE

Products

Position	Product
1	WP8577376 Whirlpool Seal
2	Baseplate & Centerpost
3	Gasket, Tub (7)
4	Spring, Idler Arm
5	Idler Arm & Shaft
6	Pulley, Idler
7	Washer, Thrust
8	Ring, Retainer
9	Ring, Retainer
10	Magnet
11	Screw, Taper End
12	Guide, Cam Bar
13	Cam, Bar Spin
14	Belt, ``V``
15	Screw, 1/4-28 x 1/2
16	Spring, Brake
17	Cam, Agitator & Pump
18	Plunger
19	Rivet
20	Basket Drive & Brake
21	Spring, Brake Yoke
22	Support, Spin Tube
23	WP120393 Whirlpool Washer Assembly
24	Pin, Gear Fork Shaft
25	Roller, Gear Fork Shaft
26	Shaft, Basket Clutch
28	Screw & Washer (3)
29	Baseplate, Lower
30	Bearing, Upper
31	W11095997 Whirlpool Seal
32	WPL 354195
33	Pulley, Motor
34	Setscrew, 5/16-18 x 1/2
35	Motor, 60 Hz. (Emerson)
36	CAPACITOR
37	357030 Whirlpool Clamp
38	WP3390631 Whirlpool Screw
39	WPL 370950
40	Retainer, Brake Yoke
41	Ball
42	Pulley, Main Drive
43	Gearcase (Complete)
44	Nut (4)
45	WP385728 Whirlpool Bushing
46	Grommet, Motor (4)
47	W10491983 Whirlpool Tine Tip
48	WPL 362738
49	Screw & Washer
50	Spring & Dampener (No. 3)
50	Spring & Dampener (No. 2)
50	Spring & Dampener (No. 1)
51	Clip, Harness
53	Spring, Agitator Plunger
54	WPL 285136
55	WP488234 Whirlpool Air Conditioner Screw
56	Shield, Splash
57	Support, Splash Shield
58	Clip, Push-On
59	WPL 692679
60	386011 Whirlpool Screw
