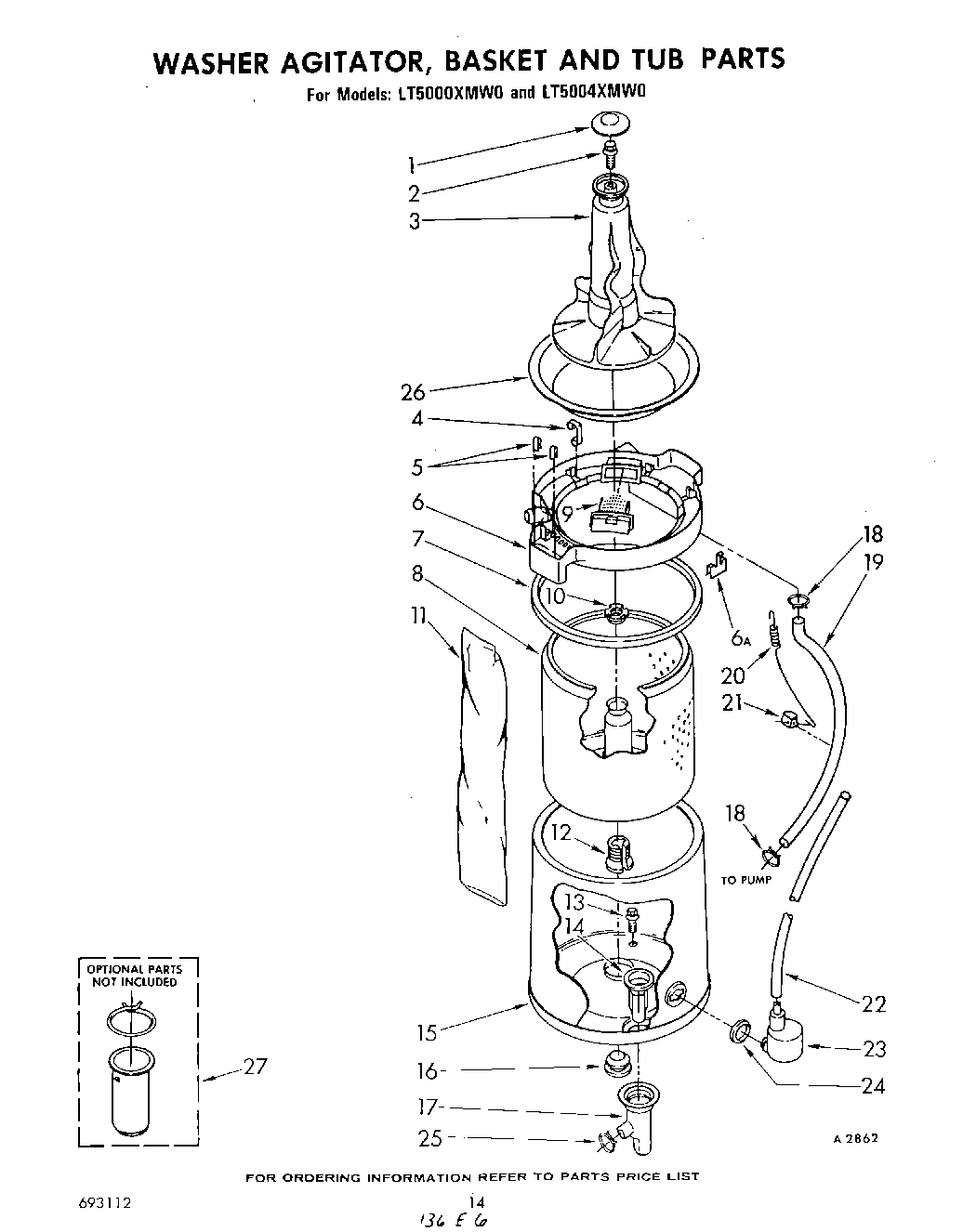

LT5004XMW0 11 – WASHER AGITATOR, BASKET AND TUB

Products

Position	Product
1	Cap, Agitator
2	WP358237 Whirlpool Agitator Bolt
3	Agitator
4	Clip, Tub Ring (5)
5	8577411 Whirlpool Pad
6A	Tub Ring Retainer Kit (Used To Retain Tub Ring Shield If One or More Tub Ring Tabs Are Broken. Kit C
6	Tub Ring (Includes Illus. 22 & 23)
7	Gasket, Tub Ring
8	Basket Assembly
9	Filter
10	Locknut
11	356398 Whirlpool Tube
12	Block, Basket Drive
13	Screw & Washer, Tub (4)
14	Funnel, Drain
15	Tub
16	W10814296 Whirlpool Washer Center Post Seal Gasket
17	Manifold, Tub Outlet
18	WP596669 Whirlpool Hose Clamp
19	Hose, Pump To Filter
20	Spring, Hose Retaining
21	Bracket
22	WP353244 Whirlpool Hose
23	Air Dome Assembly
24	Seal
25	WP285655 Whirlpool Hose Clamp
26	Shield, Tub Ring
27	Manifold Repair Kit (This Kit Eliminates The Need To Remove The Tub From The Compact Washer When Cle
