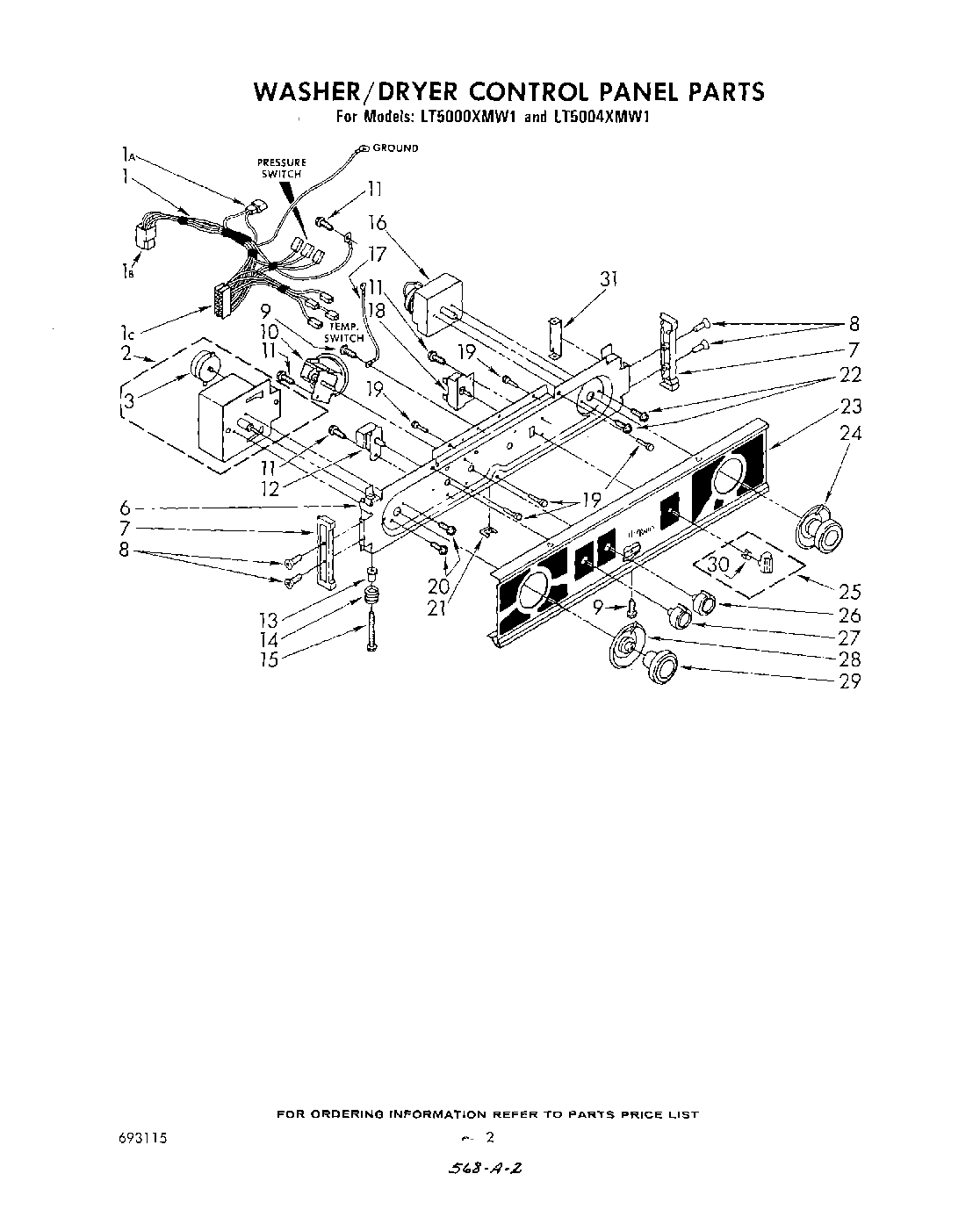

LT5004XMW1 02 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1C	W10876590 Whirlpool Connector
1	Harness, Console Wiring (Automatic) (Includes Illus. 1A, 1B & 1C)
1B	Receptacle, Connector (Connects With Lower Automatic Harness)
1A	WP717253 Whirlpool Dishwasher Connector
2	Timer, Control (60 Hz.) (Automatic Washer)
3	Motor, Timer 60 Hz.
6	Bracket, Control
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	Switch, Water Level
11	WP3390631 Whirlpool Screw
12	Switch, Water Temperature
13	693711 Whirlpool Sleeve
14	WP693151 Whirlpool Lock Spring
15	Screw, Console Lock (2)
16	Timer, Control (60 Hz.) (Dryer) (Timer Motor Not Serviceable)
17	Strut, Console
18	Switch, Push-To-Start
19	693152 Whirlpool Bumper
20	WP356418 Whirlpool Screw
21	694037 Whirlpool Clip
22	303776 Whirlpool Dishwasher Screw
23	Panel, Control
24	Timer Knob Assembly
25	Button Assembly
27	Knob & Clip, Water Temperature
28	Dial, Timer
29	Knob, Timer
30	Clip
31	WP692983 Whirlpool Console Lock
