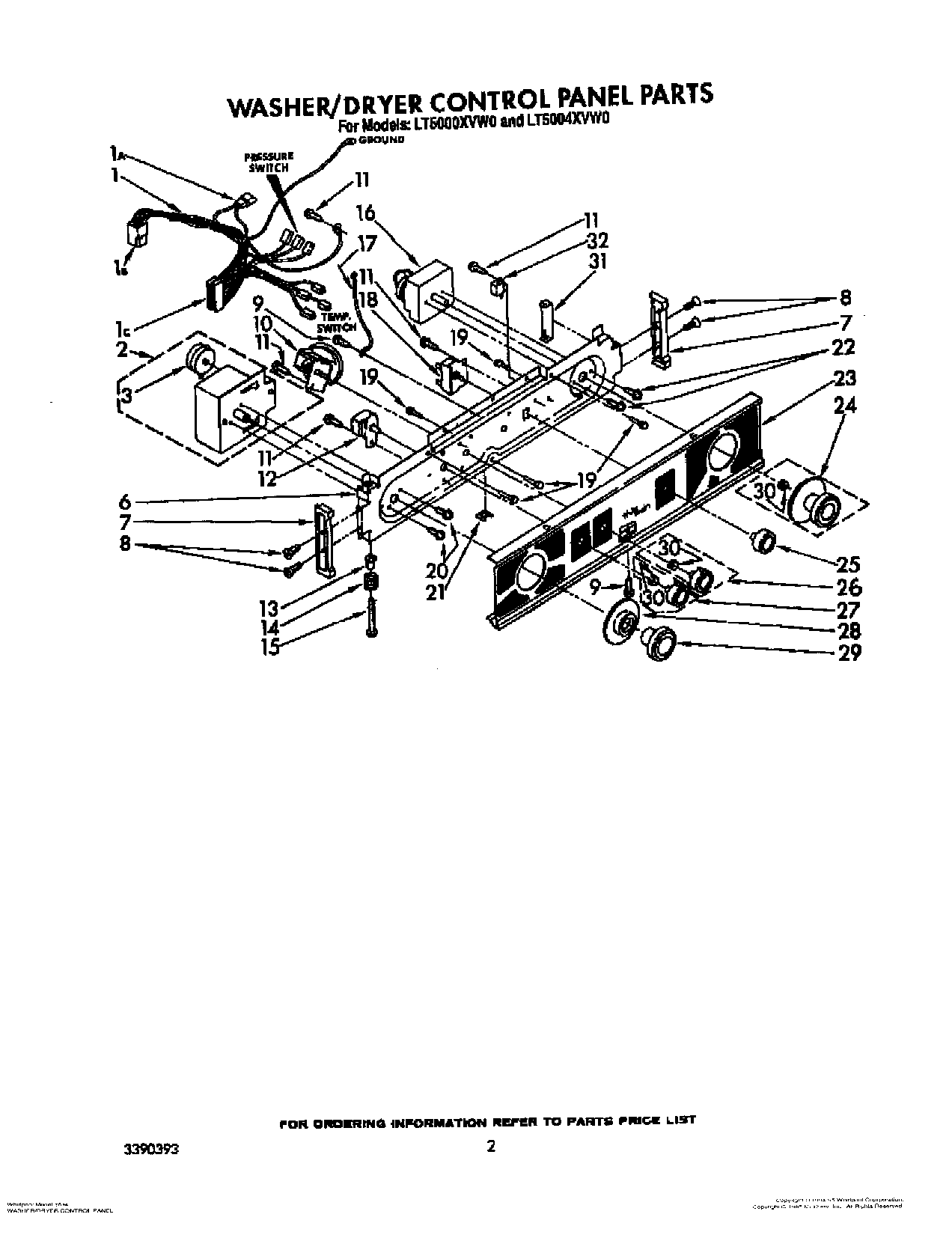

LT5004XVW0 02 – WASHER/DRYER CONTROL PANEL

Products

Position	Product
1	W10876590 Whirlpool Connector
1	Harness, Console Wiring (Automatic) (Includes Illus.1A, 1B & 1C)
1	696073 Whirlpool Connector
1	Plug
2	WP3946432 Whirlpool Timer
3	Motor, Timer
6	Bracket, Control
7	End Cap, Console (L.H. & R.H.)
8	NAMEPLATE
9	WP694091 Whirlpool Screw
10	Switch, Water Level
11	WP3390631 Whirlpool Screw
12	Switch, Water Temperature (Alt.)
12	Switch, Water Temperature (Alt.)
12	Switch, Water Temperature
13	693711 Whirlpool Sleeve
14	WP693151 Whirlpool Lock Spring
15	Screw, Console Lock (2)
16	WP3388255 Whirlpool Timer
17	Strut, Console
18	Switch, Push-To-Start
19	693152 Whirlpool Bumper
20	WP356418 Whirlpool Screw
21	694037 Whirlpool Clip
22	303776 Whirlpool Dishwasher Screw
23	Panel, Control (White)
23	Panel, Control (Almond)
24	Knob & Skirt, Dryer Timer (Almond)
24	Knob & Skirt, Dryer Timer (White)
25	Button, Push-To-Start (Almond)
25	Knob, Push To Start
27	WP3957805 Whirlpool Knob
27	Knob & Skirt (Water Level) (Almond Model)
28	Blade, Timer Knob
28	WPL 3388186
29	Knob, Timer (Almond)
29	WPL 3392698
30	WP688805 Whirlpool Spring Clip
31	WP692983 Whirlpool Console Lock
32	WP694419 Whirlpool Buzzer Adjuster
