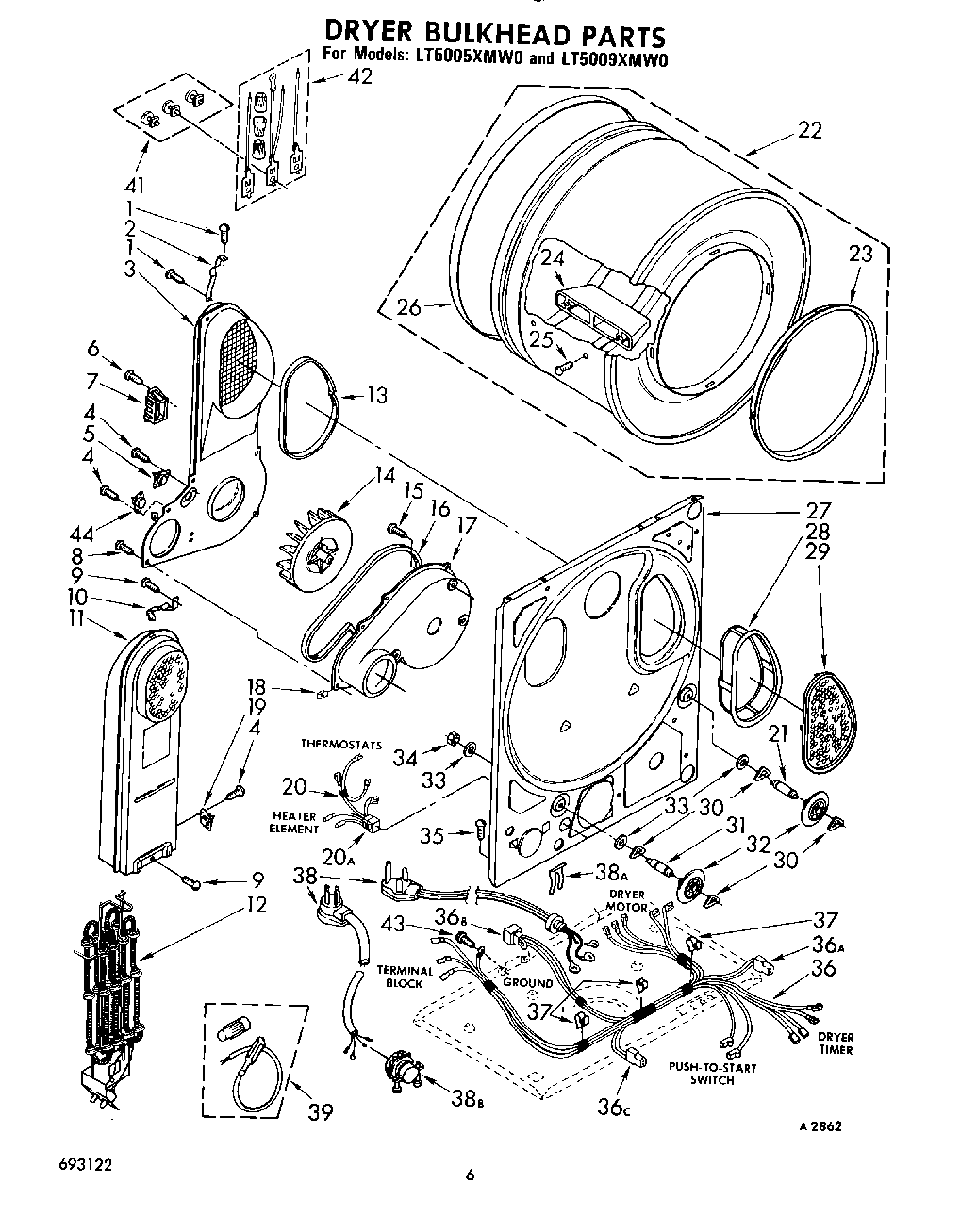

LT5009XMW0 05 – DRYER BULKHEAD

Products

Position	Product
1	SCREW
2	345396 Whirlpool Clip
3	Air Duct & Bracket
4	WP90767 Whirlpool Screw
6	Screw, Terminal Block To Bracket (2)
7	279320 Whirlpool Dryer Rear Terminal Block Kit
8	Screw, Grounding No.8 (5) (Air Duct To Scroll)
10	279771 Whirlpool Clip
11	Box, Heater
12	Element, Heater
13	SEAL
14	Wheel, Blower
15	WP308685 Whirlpool Microwave Screw
16	Seal
17	Fan Scroll
18	Clip, Fan Scroll To Air Duct (5)
19	279080 Whirlpool Thermostat
20	Plug, Multi- Terminal 56B
20	Harness, Thermostat & Heater (Includes Illus. 20A)
21	SHAFT SUPPORT ROLLER DRYER
22	3391834 Whirlpool Drum
23	WP3394508 Whirlpool Bearing Ring
24	685207 Whirlpool Dryer Baffle
25	Screw, 11-16 x 7/8
26	SEAL
27	279848 Whirlpool Bulkhead
28	W10828351 Whirlpool Dryer Filter Lint Screen with Cover
30	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
31	SHAFT SUPPORT ROLLER DRYER
32	349241T Whirlpool Dryer Drum Support Roller Kit
33	WP348197 Whirlpool Washer Assembly
34	WP358160 Whirlpool Nut
35	WP3390631 Whirlpool Screw
36	Receptacle, Latching (2-Way) (Uses Terminal 94614)
36	Harness, Main Dryer Wirin
36	Receptacle (2)
37	CLIP
38	687000 Whirlpool Connector
38	DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 Amp
38	W11712577 Whirlpool Clip
38	PT220L Whirlpool Dryer Power Cord
39	279457 Whirlpool Dryer Heating Element Wide Spade Connection
41	279393 Whirlpool Terminal Block Screw and Nut Kit
42	279318 Whirlpool Terminal
44	WP694674 Whirlpool Cycling Thermostat
