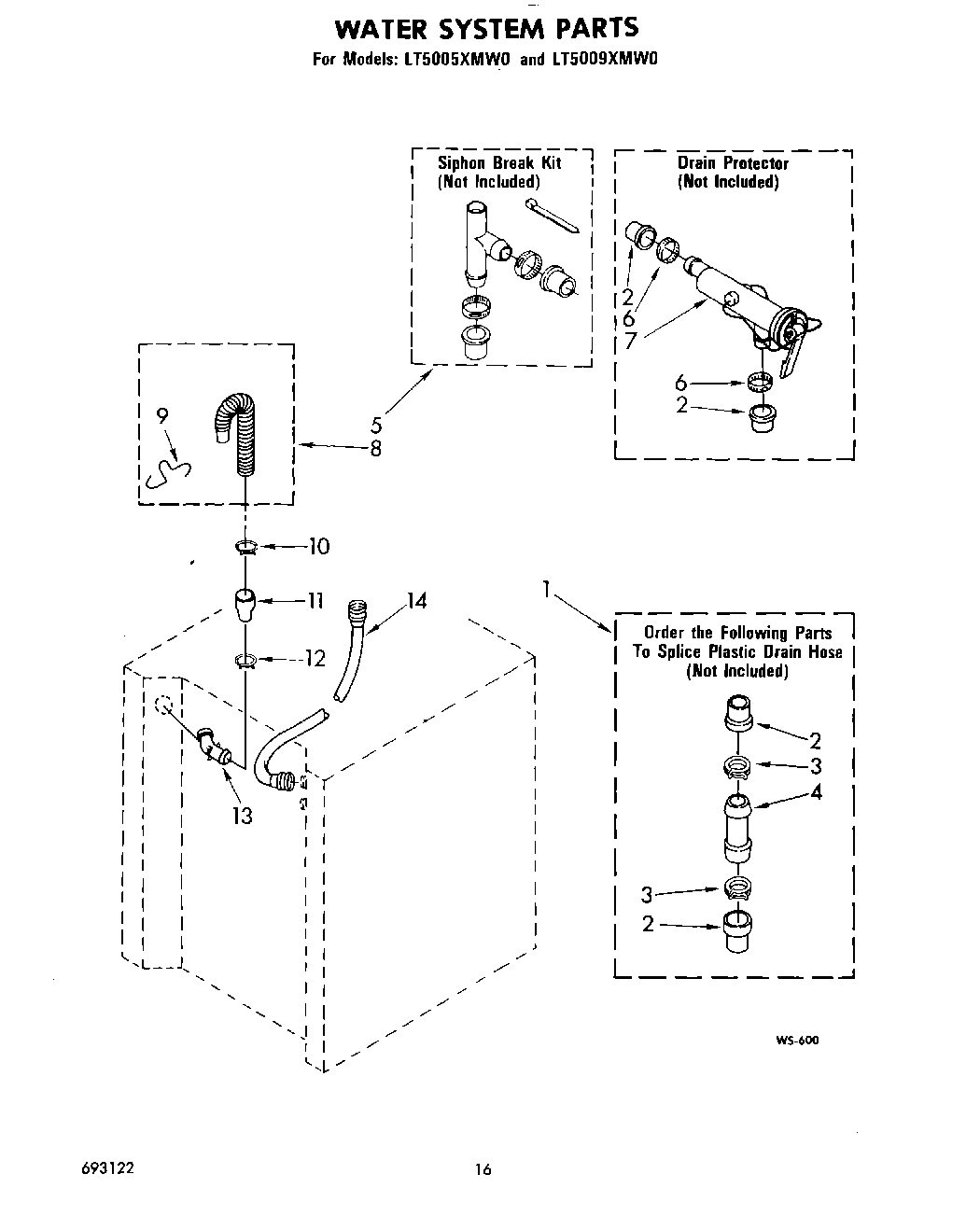

LT5009XMW0 13 – WATER SYSTEM

LT5009XMW0 13 – WATER SYSTEM

Written by

in

LT5009XMW0 13 – WATER SYSTEM

Products

PositionProduct
1285442 Whirlpool Coupling
2285321 Whirlpool Sleeve
4WP16272 Whirlpool Hose Coupling
5285320 Whirlpool Washer Siphon Break Kit
7Drain Protector (Not Included)
8285666 Whirlpool Drain Hose 10'
8285664 Whirlpool Drain Hose
9WPL 357247
10WP616099 Whirlpool Clamp
11WP384496 Whirlpool Hose Coupling
12WP285655 Whirlpool Hose Clamp
13Connector, Hose
14WP89503 Whirlpool Washer Fill Hose
