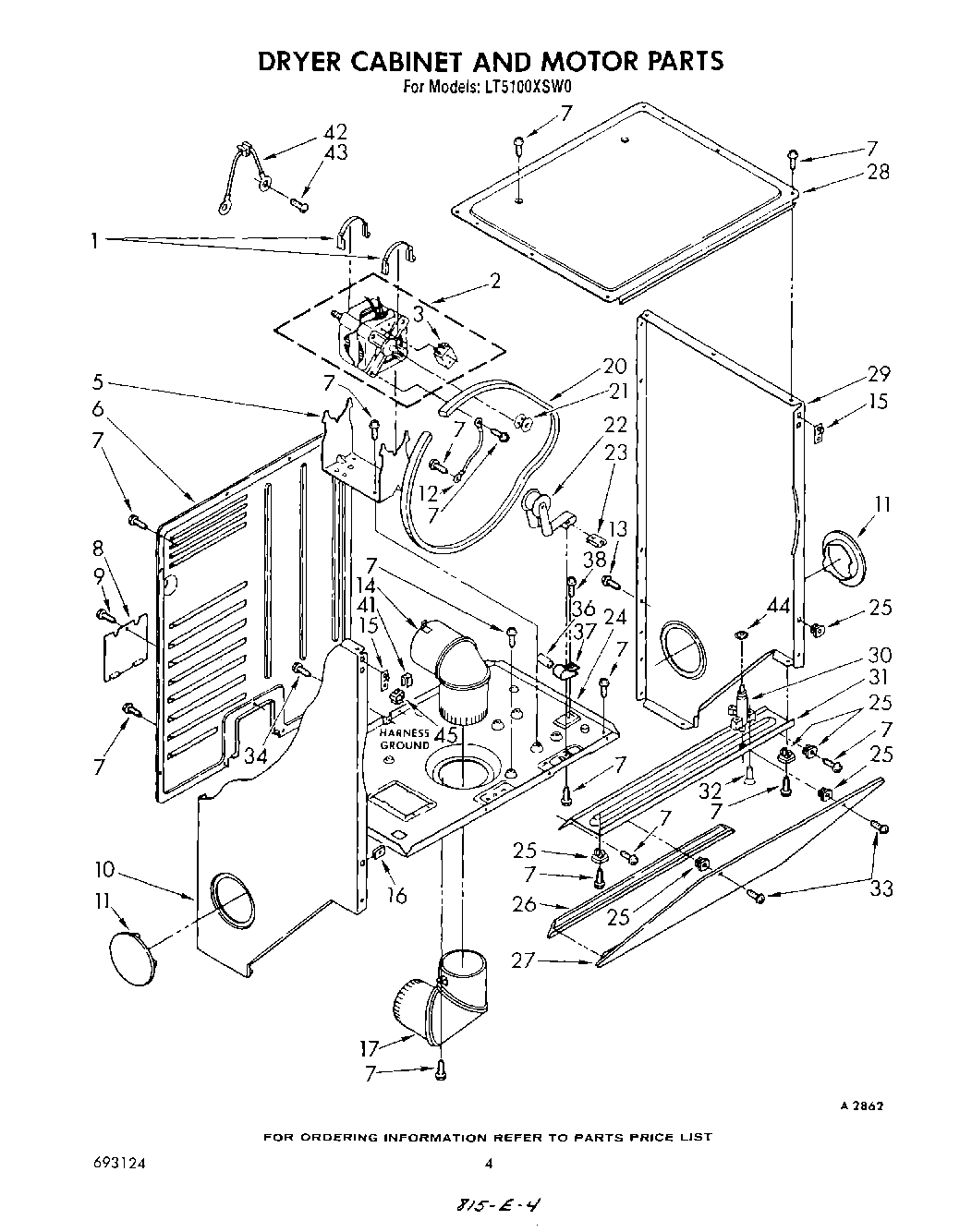

LT5100XSW0 04 – DRYER CABINET AND MOTOR

Products

Position	Product
1	WP660658 Whirlpool Clamp
3	279827 Whirlpool Dryer Drive Motor
5	696541 Whirlpool Base
6	Panel, Rear
8	Cover, Service
10	Panel, Side (L.H.) (Almond)
10	Panel, Side (L.H.) (Toast)
10	Panel, Side (L.H.) (Platinum)
10	WP3402293 Whirlpool Panel Assembly
10	Panel, Side (L.H.) (Golden Harvest)
11	Plug, Side Panel (2) (Toast)
11	Plug, Side Panel (2) (Platinum)
11	Plug, Side Panel (2) (Golden Harvest)
11	692790 Whirlpool Plug
11	Plug, Side Panel (2) (Almond)
12	Wire, Ground
13	WP308544 Whirlpool Screw
14	Elbow, Upper
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	WP98234 Whirlpool Nut
17	3399603 Whirlpool Elbow
20	3394652 Whirlpool Drum Belt
21	W10837625 Whirlpool Dryer Motor Pulley
22	WP691366 Whirlpool Dryer Idler Pulley Assembly
23	WP692771 Whirlpool Nut
24	Base, Dryer
25	WP692400 Whirlpool Nut
26	WP692926 Whirlpool Cover Appliance
27	692933 Whirlpool Panel
27	Panel, Transition (Almond)
27	Panel, Transition (Platinum)
27	Panel, Transition (Golden Harvest)
27	Panel, Transition (Toast)
28	WP692641 Whirlpool Dryer Top Assembly
29	Panel, Side (R.H.) (Almond)
29	Panel, S
29	WPL 692610
29	WPL 692611
29	Panel, Side (R.H.) (White)
30	WP693145 Whirlpool Lid Latch
31	WP692781 Whirlpool Closure Assembly
31	WPL 692784
31	WPL 692783
31	WPL 692782
31	WPL 692785
32	Screw & Washer
33	WP693304 Whirlpool Screw
36	CAPACITOR
37	357030 Whirlpool Clamp
41	3390046 Whirlpool Protector
42	Cable Assembly
43	SCREW
44	WP90296 Whirlpool Clip
45	Clip
