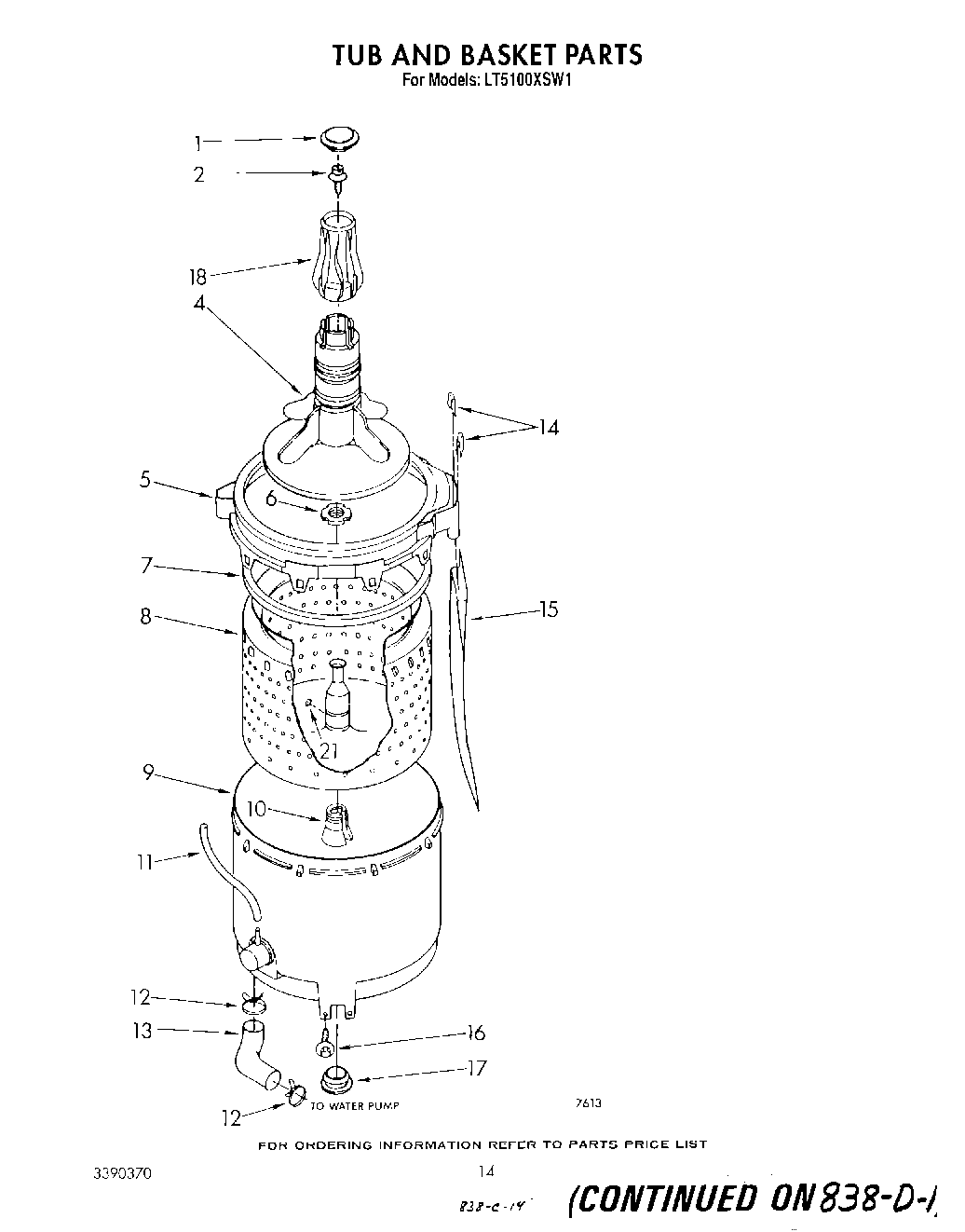

LT5100XSW1 11 – TUB AND BASKET

Products

Position	Product
1	WP3355758 Whirlpool Agitator Cap
2	WP358237 Whirlpool Agitator Bolt
4	WP3349098 Whirlpool Agitator Assembly
5	W10831641 Whirlpool Tub Ring
6	WP21366 Whirlpool Spanner Nut
7	WP3359587 Whirlpool Tub Seal
8	Basket
9	Tub
10	WP389140 Whirlpool Drive Block or Bell
11	W10834213 Whirlpool Hose
12	WP371502 Whirlpool Clamp
13	280120 Whirlpool Hose
14	8577411 Whirlpool Pad
15	356398 Whirlpool Tube
16	Screw & Washer (Tub Mounting) (4)
17	W10814296 Whirlpool Washer Center Post Seal Gasket
18	WP63840 Whirlpool Filter
21	Stopper (2)
