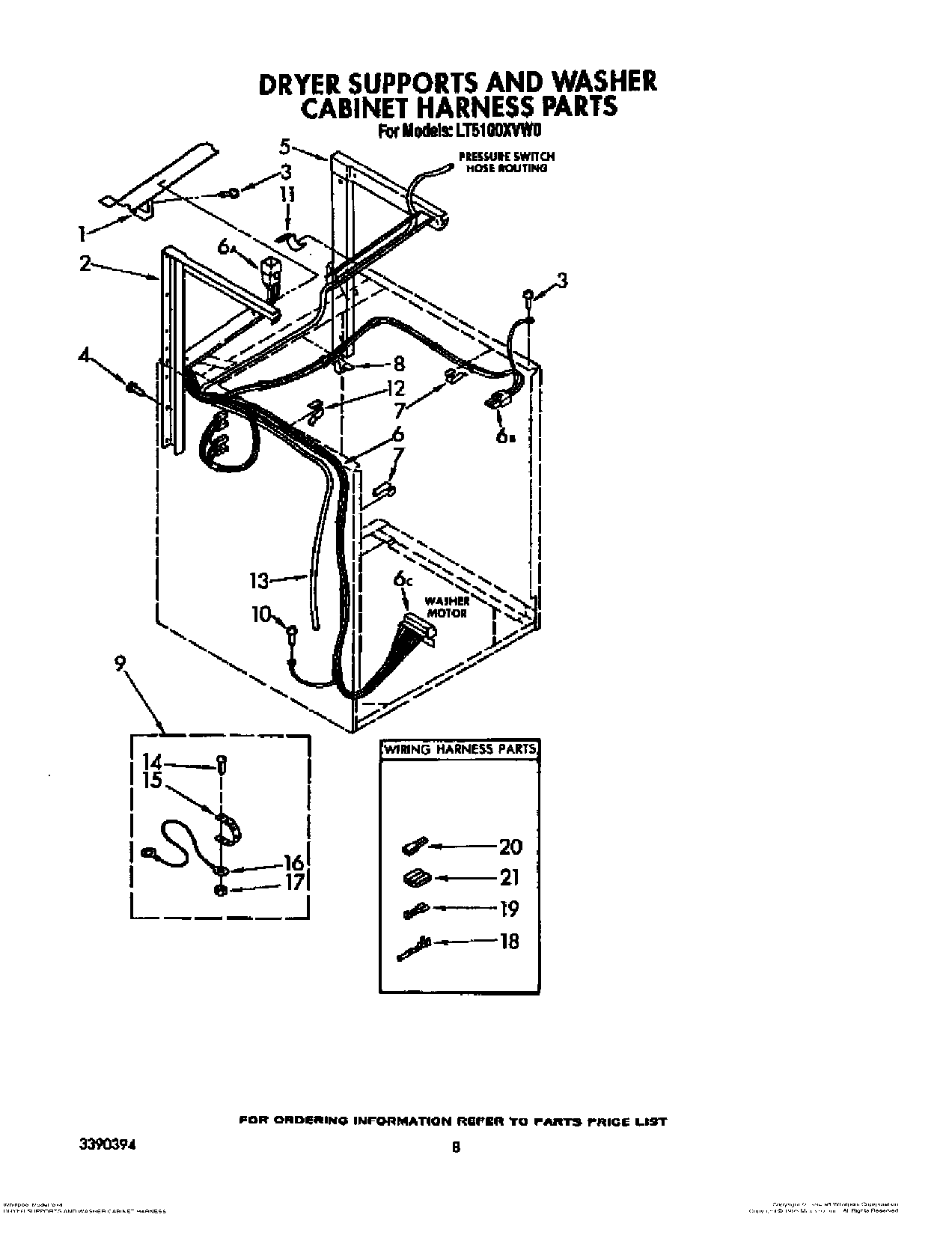

LT5100XVN0 06 – DRYER SUPPORTS AND WASHER CABINET H

Products

PositionProduct
1694304 Whirlpool Channel Cover
2W11174025 Whirlpool Support Assembly
3SCREW
4WP308544 Whirlpool Screw
5W11174024 Whirlpool Support
6Plug, Terminal (12-Way) (Connects With Automatic Console Harness)
6Harness, Upper (Automatic) (Includes Illus. 6A, 6B & 6C)
6WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
6WP62505 Whirlpool Connector
78528351 Whirlpool Clip
8Clip, Pressure Switch Hose And Wiring Harness (3)
9KIT, GROUNDING
10WP488234 Whirlpool Air Conditioner Screw
11WP90016 Whirlpool Clip
12CLIP
13W10834213 Whirlpool Hose
14Screw, Ground (10-24 x 1)
15Strap, Ground
16WPL 685449
17W10080180 Whirlpool Nut
18WP596797 Whirlpool Terminal
18WP94614 Whirlpool Terminal
19Terminal, Female
20WP285432 Whirlpool Terminal
21Connector Block (Alternate)
