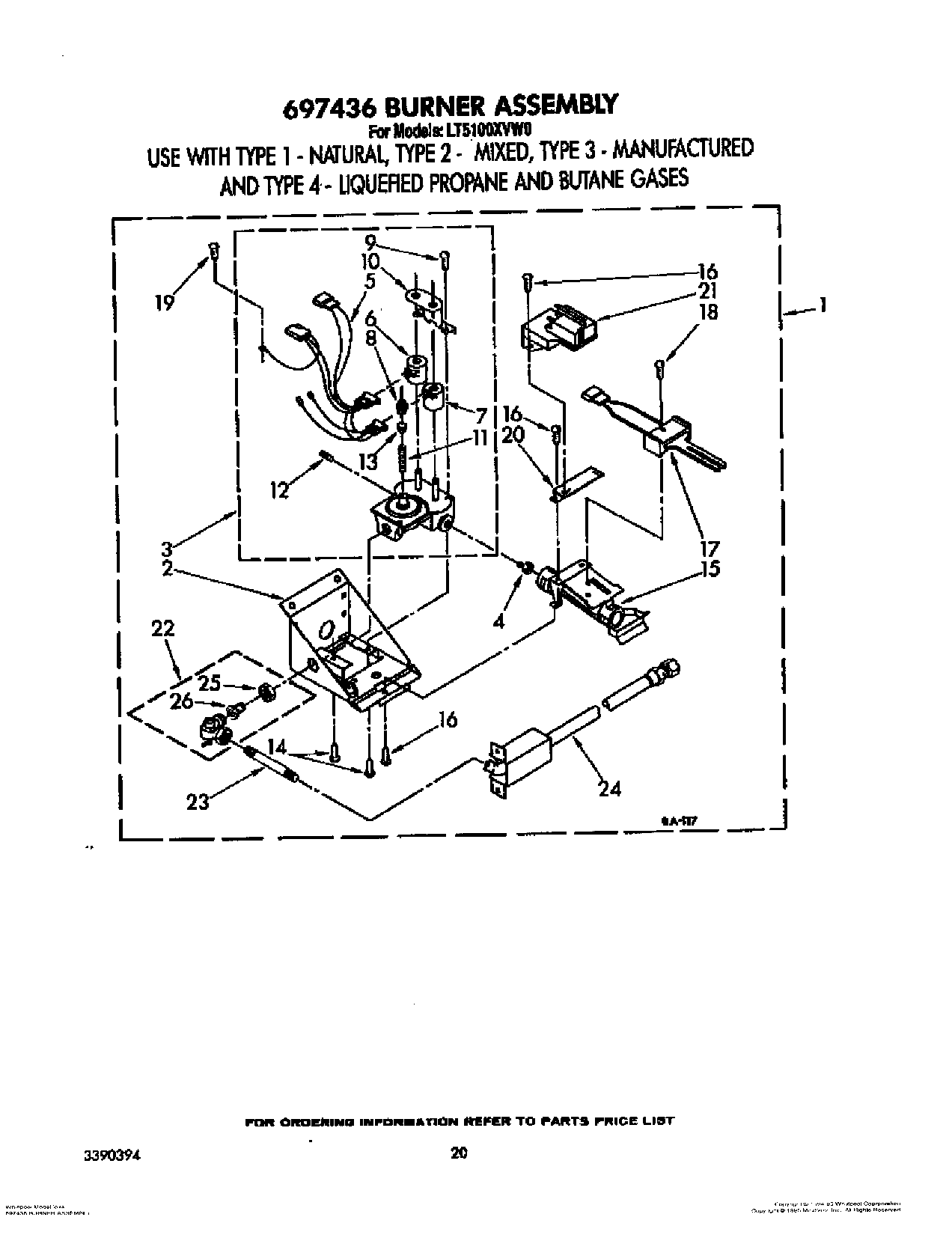

LT5100XVN0 17 – 697436 BURNER ASSEMBLY

Products

Position	Product
1	Burner Assembly 60 Hz.
2	Base, Burner
3	279888 Whirlpool Valve Assembly
4	WP347744 Whirlpool Gas Orifice
4	WP234822 Whirlpool Gas Orifice
5	WP3401849 Whirlpool Wire Harness
6	279834 Whirlpool Dryer Gas Valve Solenoid Coil Kit
8	WP694424 Whirlpool Limiter
9	694421 Whirlpool Screw Assembly
10	694538 Whirlpool Bracket
11	WP694422 Whirlpool Spring
12	W10295523 Whirlpool Plug
13	WP694423 Whirlpool Regulator
15	8578392 Whirlpool Burner
16	WP90767 Whirlpool Screw
17	279311 Whirlpool Dryer Flat Igniter with Bracket
18	WPW10366705 Whirlpool Screw
19	WP3390631 Whirlpool Screw
20	Bracket, Sensor
21	WP338906 Whirlpool Dryer Gas Sensor
22	697441 Whirlpool Valve
23	W10110397 Whirlpool Pipe
24	Supply Line (Gas)
25	Nut, Compression
26	Kit, Conversion Type 1 To Type 3 (MFD)
26	3393767 Whirlpool Pipe
26	W10402145 Whirlpool LP Gas Connection
