LT600EXW1 09 – COUNTERWEIGHT SECTION

LT600EXW1 09 – COUNTERWEIGHT SECTION

Written by

in

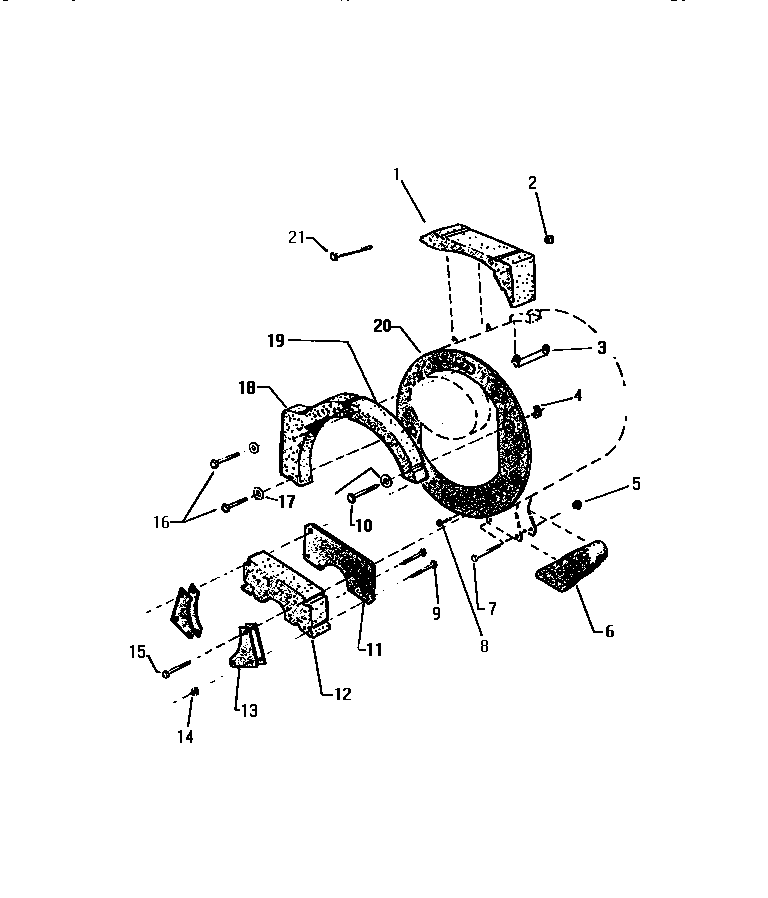

LT600EXW1 09 – COUNTERWEIGHT SECTION

Products

Position	Product
1	COUNTERWEIGHT TOP
2	WCI Q500831
3	WCI Q613875
4	NUT 6 REQ.
6	COUNTERWEIGHT BOTTOM LEFT
8	WCI Q505564
10	BOLT 2 REQ.
11	BRKT
12	COUNTERWEIGHT LOWER CENTER
13	BRKT 2 REQ.
14	NUT 4 REQ.
15	BOLT 2 REQ.
16	BOLT 2 REQ.
17	WASHER 2 REQ.
18	COUNTERWEIGHT, CTR LEFT
19	COUNTERWEIGHT, UPPER RIGHT
20	RING COUNTERWEIGHT
21	BOLT 2 REQ.
